2GM
1-6-42
Yes
No
Start
Enter maintenance mode.
Enter 034 using
up/down cursor keys.
Press the enter key.
Press the system menu/counter key.
Is the image correct?
Press the enter key.
The new setting is stored.
Press the back key to exit
maintenance mode.
End
Press the system menu/counter key.
For copy example 1, decrease
the value using the left cursor key.
For copy example 2, increase
the value using the right cursor key.
Setting range
Drawer: 507 to 600
MP tray: –23 to +70
Optional drawer: –23 to +70
Changing the value by 1 moves the
center line by 0.254 mm.
Select the item to be adjusted
using up/down cursor keys.
*After adjusting the MP tray,
adjust the drawer.
VTC (Cas.1)
: Center line from the drawer
VTC (MPT): Center line from the MP tray
VTC (Cas.2): Center line from the optional
drawer
Press the start key
to output a test pattern.
(Printing cannot be stopped until the
preset number of sheets is printed.)
(2) Adjusting the center line of image printing
Make the following adjustment if there is a regular error between the center lines of the copy image and original when
paper is fed from the cassette.
U034
U067
(P. 1-6-47)
U072
(P. 1-6-52)
Caution:
Check the copy image after the adjustment. If the image is still incorrect, perform the above adjustments in maintenance
mode.

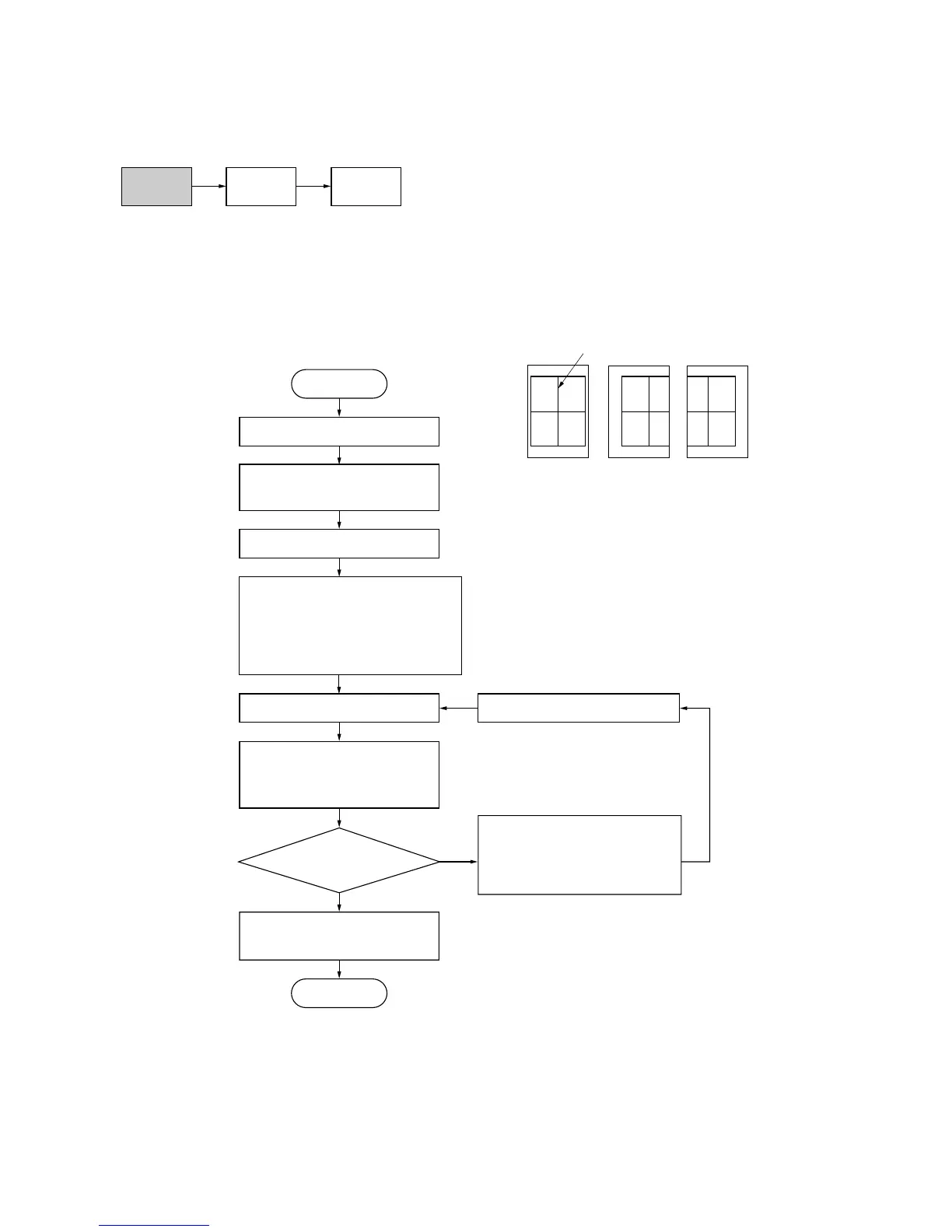

Procedure
Center line of printing
Correct image Copy
example 1
Copy
example 2
Figure 1-6-53
