Welch Allyn Connex Spot Monitor Directions For Use

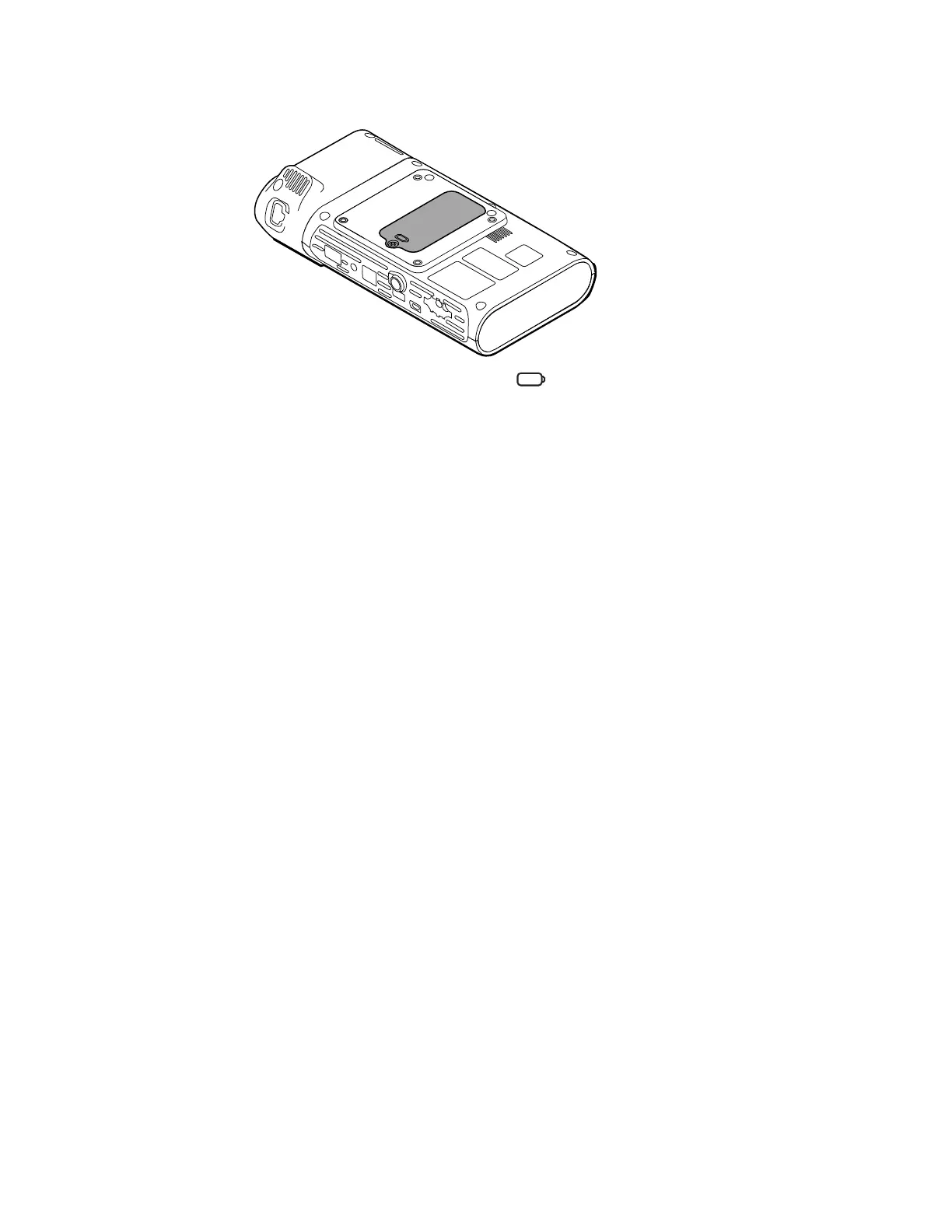

2. Locate the battery cover, indicated by on the back of the monitor.
3. Using a double-slotted screwdriver, loosen the captive screw at the base of the
battery cover, and then remove the cover.
4. Remove the battery to access the battery connection port on the monitor.
5. Insert the battery connector into the battery connection port on the monitor.
6. Insert the battery into the battery compartment.
7. Replace the battery cover, and then tighten the captive screw at the bottom of the
battery cover.
Note Do not over-tighten the screw.
Mount the monitor
The Connex Spot Monitor can be mounted on either the MS3 Connex Spot Classic
Mobile Stand, Accessory Power Management (APM) stand, or wall mount. When
mounted on an MS3 stand, a separate power supply is required. This power supply
connects directly to the mains outlet. Follow the assembly instructions or directions
for use included with your stand or wall mount. If you have an APM stand, follow all
instructions regarding the equipotential terminal.
Connect AC power to a power source
You can use the monitor with power from the mains outlet. Battery power can be used
after charging the battery.
Refer to the AC power directions in the
Instructions for use that accompanied the
stand to which you are mounting your monitor.
Connect AC power to APM and monitor
To connect the monitor to the APM stand, refer to the APM Assembly instructions.
20 Setup Connex
®
Spot Monitor
