CONVENTIONAL WIRE HARNESS
An optional wire-harness for the remote control
is available. This will help set up the remote
control equipment on any boats. Choose a
suitable wire-harness if necessary.
For the wire color code description, see the
table on page 5-36.

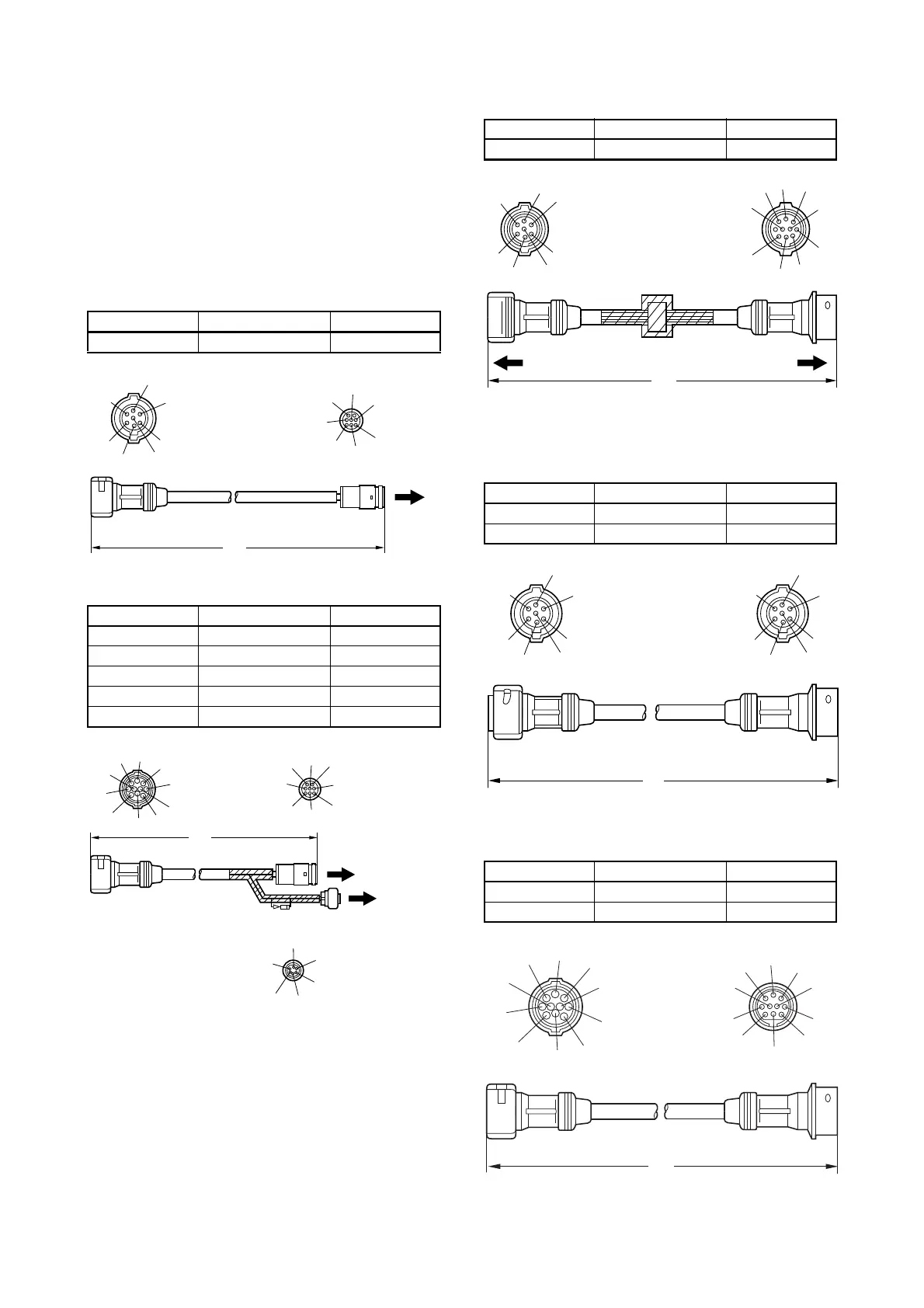

SWITCH PANEL HARNESS
7-PIN MAIN HARNESS
10-PIN MAIN HARNESS
7- TO 10-PIN ADAPTER
MAIN HARNESS EXTENSION
7-PIN EXTENSION HARNESS
10-PIN EXTENSION HARNESS
Part No. Length (L) Remarks
688-82586-50 5 m (16 ft) Without PTT
Part No. Length (L) Remarks
688-8258A-50 5 m (16 ft)
688-8258A-60 6 m (19 ft)
688-8258A-70 7 m (23 ft)
6K1-8258A-40 8 m (26 ft)
61B-8258A-01 9.5 m (32 ft)
L
P
G
Br
W
R
B
P
W
L
R
To S/W
panel
G
Br
B
(L)
R
Y
G
Lg
P
Br
B
L
W
Sb
P
W
L
R
G
Br
B
Y
R
R
Sb
Lg
Br
B
Br
To S/ W
panel
To 704/6X3
RC box
(L)
Part No. Length (L) Remarks
703-8258A-00 0.5 m (2 ft)
Part No. Length (L) Remarks
688-82586-11 2 m (7 ft)
688-82586-31 3 m (10 ft)
Part No. Length (L) Remarks
688-8258A-10 2 m (7 ft)
688-8258A-30 3 m (10 ft)
L
P
G
Br
W
R
B
Sb
Y
R
G
P
Br
B
L
W
(L)
RC
ENG
L
P
G
Br
W
R
B
L
R
G
W
Br
P
B
(L)
Lg
Br
B
L
W
Sb
Y
R
G
P
(L)
R
G
Y
Sb
W
L
B
Br
Lg
P
