4-13

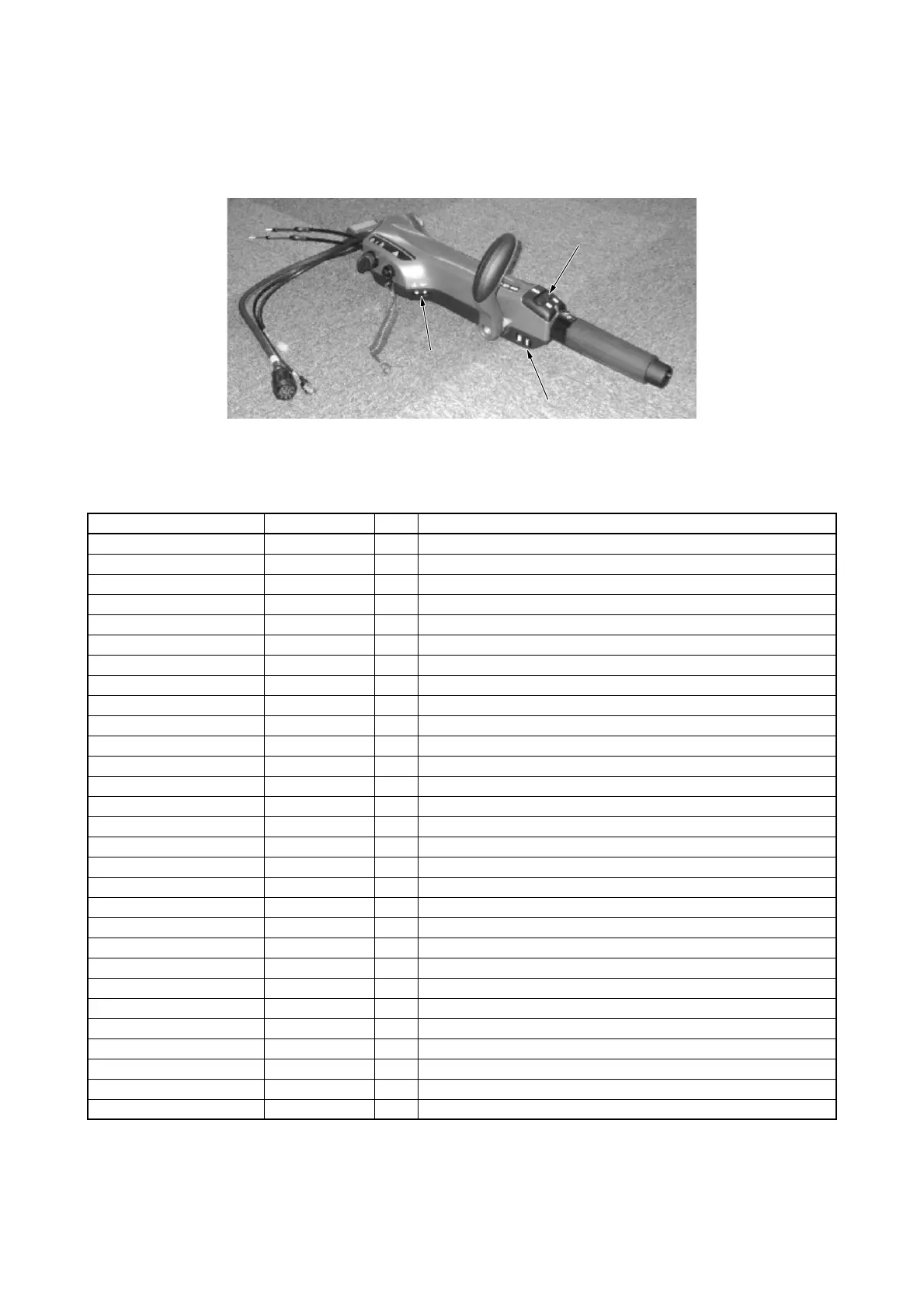

6X4 MULTI-FUNCTION TILLER HANDLE
MULTI-FUNCTION TILLER HANDLE KIT (FOR JAPAN)
The tiller handle kit is prepared for F50 to F90.
For installation procedure, see the instruction supplied with the kit.
TILLER HANDLE KIT CONTENTS
F80B, F90B
KIT P/N:6X4-42103-16
Part name Part No. Q’ty Remarks
Fuel pipe clamp 2 63D-24367-00 1
Pipe 1 67G-42541-00 2
Nut 67G-42546-00 2
Grommet 2 68V-42725-10 1
Corrugated tube 6G5-83557-00 1 85 mm (3.3 in.)
Corrugated tube 6K3-83557-00 1 65 mm (2.6 in.)
Stay 6X4-24364-00 1
Tiller handle ASSY 6X4-42101-34 1 With PTT switch (Side), LED indicators
Ext. bracket (Short)
6X4-42121-00-8D
1 45 mm (1.8 in.)
Protector 6X4-42735-00 1
Stud bolt 90116-10031 2
Bolt 90119-08M74 2
locknut 90185-08057 2
locknut 90185-10027 2 M10
Washer 90201-08M01 2
Corrugated tube 90447-22007 1 230 mm (9.1 in.)
Clamp 90465-13M24 5
Clamp 90465-13M30 1
Bolt 97595-06516 2
Bolt 97595-08525 2
Friction plate 3 63D-42527-00 1
Friction piece 63D-42528-00 2
Steering lock knob 67G-42561-00 1
Steering lock shaft 67G-42562-00 1
Cover 68243-31801 1
Friction plate 2 6X4-42526-00 1
locknut 90185-10M14 1
Washer 90201-10M76 1
Setup manual 6X4-2819K-04 1 Japanese
Troll RPM switch
(Fuel injected F30- F90)
Troll RPM switch
(Fuel injected F30-
F90)
PTT switch (Side)
LED indicators
* Overheat warning
* Oil warning
PTT switch (Side)
LED indicators
* Overheat warning
* Oil warning
