Yamaha 4ACMH - Optional Equipment; Multi-Sensor Application; Fitting Plate

6-5
OPTIONAL EQUIPMENT

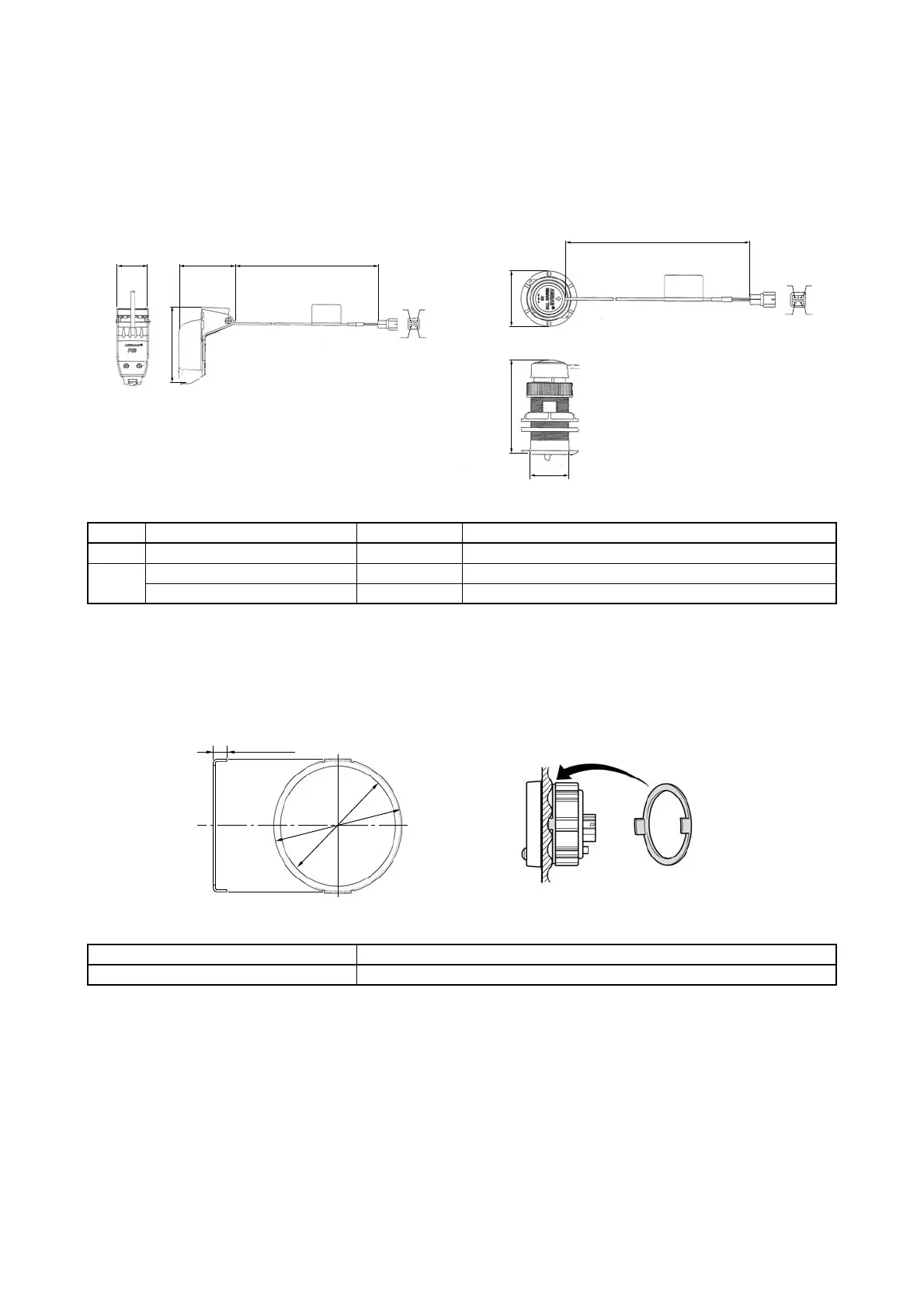

MULTI-SENSOR APPLICATION
Boat speed, water depth and water surface temperature can be obtained.
For installation, see the instruction which is accompanied with the sensor.
FITTING PLATE
If the fitting surface is rough, insert the plate between a board and the ring nut of gauge.
Ref. No. Part name Part No. Remarks
1 Transom multi-sensor 6Y8-83688-01
2
Thru-hull multi-sensor 1 6Y8-83688-11 Plastic body
Thru-hull multi-sensor 2 6Y8-83688-20 Bronze body
Part No. Remarks
6Y8-83514-00
96 (3.78)
130 (5.12)
4900 (16 ft)
52 (2.05)
B
R
L
W
50.8 (2)
125 (4.92)
3050 (10 ft)
B
R
L
W
60 (2.36)
12
mm (in.)mm (in.)
95 (3.74)
t = 1.5 (0.06)
85.5 (3.37)
11.5 (0.45)
mm (in.)
