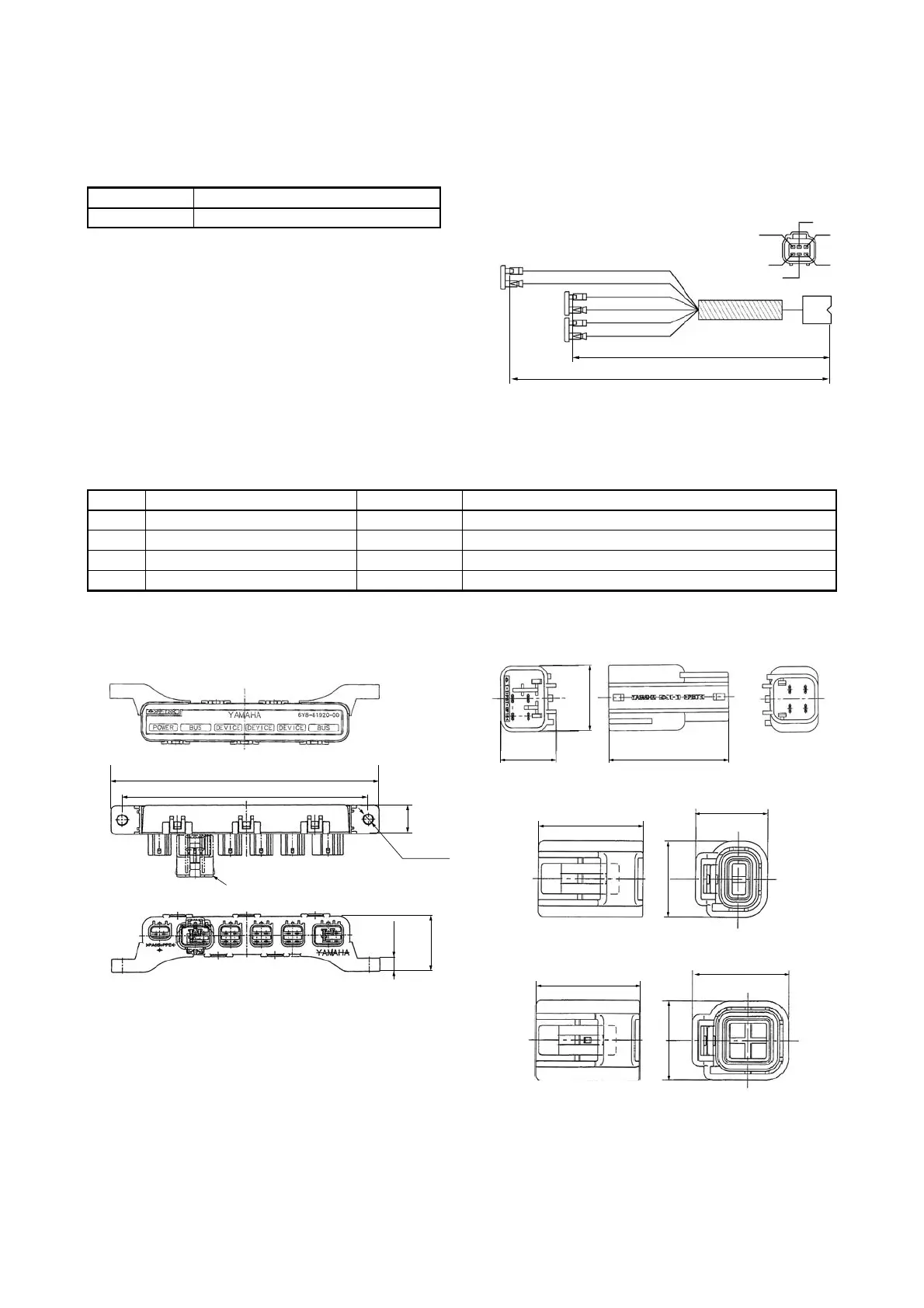

WIRE HARNESS
FUEL TANK / GPS WIRE
Used to connect between a fuel tank level sensor and/or an MNEA0183 compatible GPS and the
speedometer (with fuel mgt gauge).
NETWORK HUB
Used to distribute the digital signal and electric power to the gauges and the other hubs.
Part No. Remarks
6Y8-8356N-01 Twin fuel tanks acceptable
Ref. No. Part name Part No. Remarks
1 Multi-hub 6Y8-81920-01 With ending resistor cap (P/N: 6Y8-85371-01)
2 Single hub (Inline hub) 6Y8-81920-11 Included ending resistor
3 2-pin sealing cap, RED 6Y8-82582-01
4 4-pin sealing cap, WHT 6Y8-82582-11 Same as bus wire cap of engine wire harness
300 (11.8)
220 (8.66)
GPS
B
BL
W
PP/B
P/B
B
W
Fuel
tank
L
(+)
(GND)
(BLK)
P
B
mm (in.)
178 (7.01)
Resistor cap (GRY)
194.8 (7.67)
7 (0.28)
41.4
(1.63)
21.4
(0.84)
10
(0.39)
22.55
(0.88)
19.65
(0.77)
42 (1.65)
(WHT)
26 (1.02)
18.54 (0.73)
19.3 (0.76)
(RED)
23.95 (0.94)
20.25 (0.79)
26 (1.02)
(WHT)
12
3
4
mm (in.)mm (in.)
* Face the connectors downward for installation.
