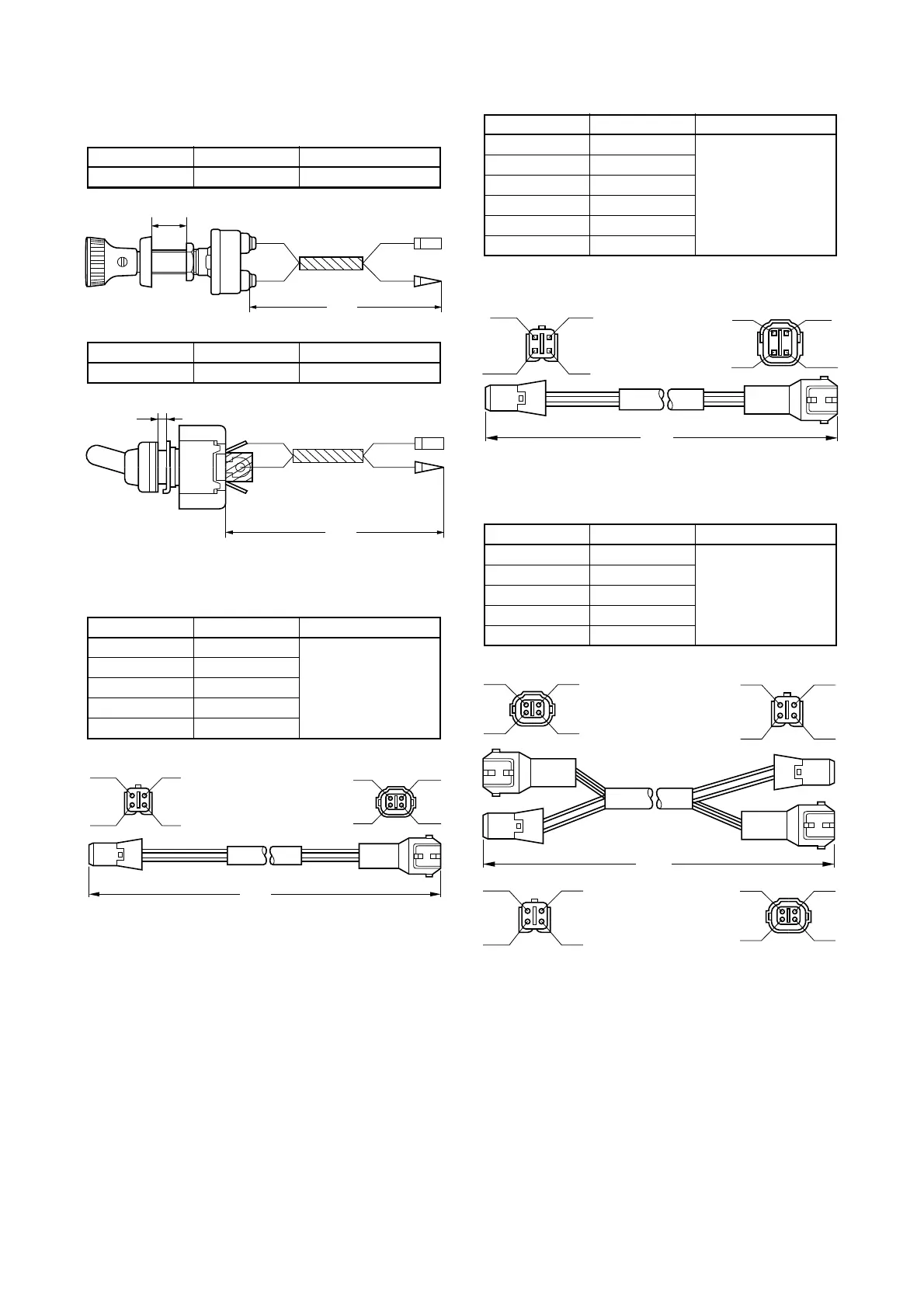

WIRE HARNESSES
LAMP SWITCH
TRIM METER LEAD
TRIM AND OIL LEAD
(*1) Mechanical RC
COMBINATION TRIM AND OIL LEAD
Part No. Length (L) Remarks
688-82520-00 10 cm (4 in) t = Max.15 mm
Part No. Length (L) Remarks
688-82526-00 10 cm (4 in) t = Max.3 mm
Part No. Length (L) Remarks
6R3-82553-30 3 m (10 ft)
Premixed models
w/ PTT
(Flat type harness)
6R3-82553-50 5 m (16 ft)
6R3-82553-70 7 m (23 ft)
6R3-82553-80 8 m (26 ft)
6R3-82553-90 9 m (29 ft)
t
L
Y
( L )
t
L
Y
( L )
Gy
P
OrB
P
Gy
BOr
( L )
Part No. Length (L) Remarks
6Y5-83653-00 5 m (16 ft)
Above F30
(*1)
,
Above 40 (3-cyl) w/
oil injection
(Unified 4-pin cou-
pler)
6Y5-83653-10 6 m (19 ft)
6Y5-83653-20 7 m (23 ft)
6Y5-83653-30 8 m (26 ft)
6Y5-83653-40 9 m (29 ft)
6Y5-83653-50 10.5 m (34 ft)
Part No. Length (L) Remarks
68F-82553-50 5 m (16 ft)
250G, L250G
68F-82553-70 7 m (23 ft)
68F-82553-80 8 m (26 ft)
68F-82553-90 9.5 m (29 ft)
68F-82553-A0 10.5 m (34 ft)
GG/R
GyP
P
Gy
G/RG
( L )
Or
Gy
B
P
B
P
Or
Gy
GG/R
G/RG
( L )
(TRIM)
(TACH)
L/W
W/R
W/RL/W
