Yamaha 4ACMH - Clamp Bracket Dimensions

1-30
OUTBOARD MOTOR DIMENSIONS

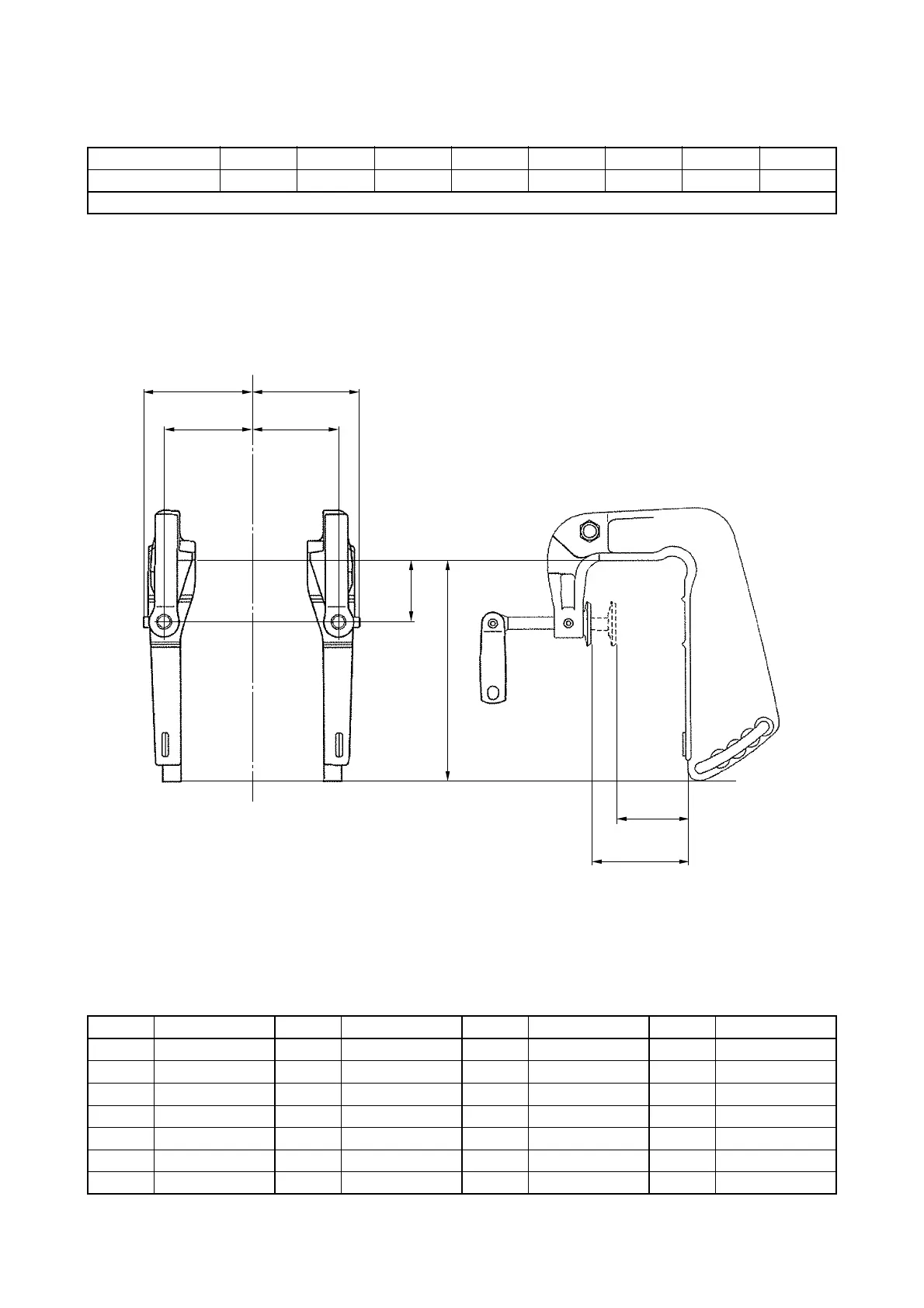

CLAMP BRACKET DIMENSIONS
Global model F2A F2.5A
US/CA model F2.5A
Manual tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 — B8 — C1 22 (0.9) D1 —
B2 — B9 — C2 58 (2.3) D2 —
B3 — B10 — C3 — D3 —
B4 — B11 56 (2.2) D4 —
B5 69 (2.7) B12 40 (1.6)
B6 143.7 (5.7)
B7 —
B6
B12
B5
C/L
B5
B11
B11
C1
C2
