5-19

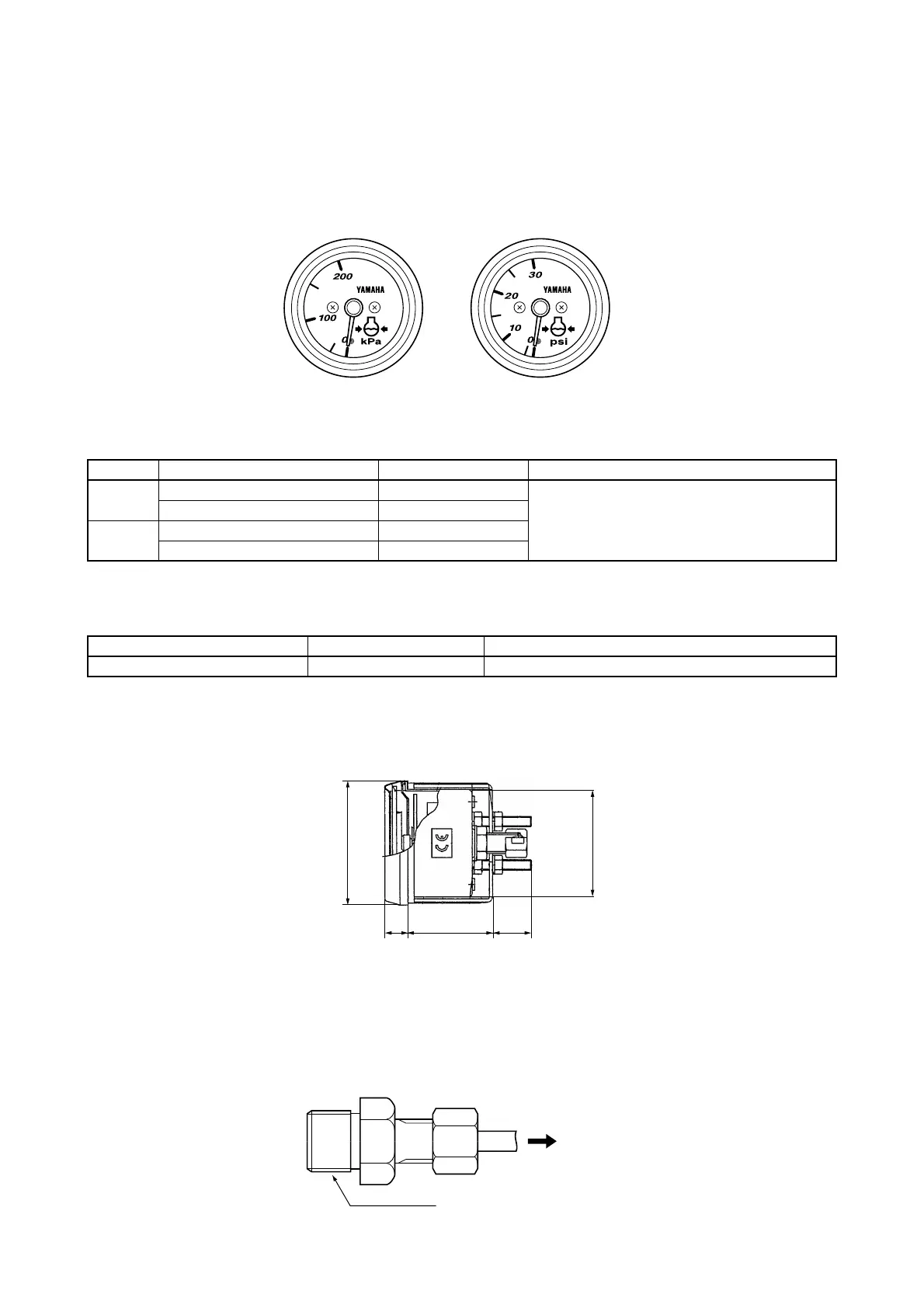

COOLANT PRESSURE METER
The coolant pressure meter shows the water pressure of cooling water passage, and provides a
warning for the operator when there is a problem with the cooling system.
* For all in-line cylinder models, the position for installing the sensor shares the coolant temperature output.
Therefore, either the coolant temperature meter or the coolant pressure meter can be used for one engine.
* However, on V4, V6, and F150 models, both meters can be used for one engine.
COOLANT PRESSURE METER APPLICATIONS
ADDITIONAL PARTS REQUIREMENTS
COOLANT PRESSURE METER DIMENSIONS
COOLANT PRESS. ATTACHMENT INSTALLATION
The method for installing the coolant pressure attachment is the same as the coolant temperature
sensor. See the installation instruction to the sensor in the coolant temperature meter on page 5-21.
Ref. No. Description Part No. Applicable model
1
kPa, Black panel 6Y7-83660-00
Above 40 [3-cyl]
Above F25 (FT/T25) [Mechanical RC]
kPa, White panel 6Y7-83660-20
2
psi, Black panel 6Y7-83660-10
psi, White panel 6Y7-83660-30
Description Part No. Remarks
Coolant pressure attachment 688-83667-00 With 10 m (32 ft) tube
60 (2.36)
11 (0.43) 18.9 (0.74)
42 (1.65)
52 (2.05)
