COOLANT TEMP. METER
COOLANT PRESS. ATTACHMENT AND/OR COOLANT TEMP. SENSOR
INSTALLATION (FOR 2-STROKE MODELS)

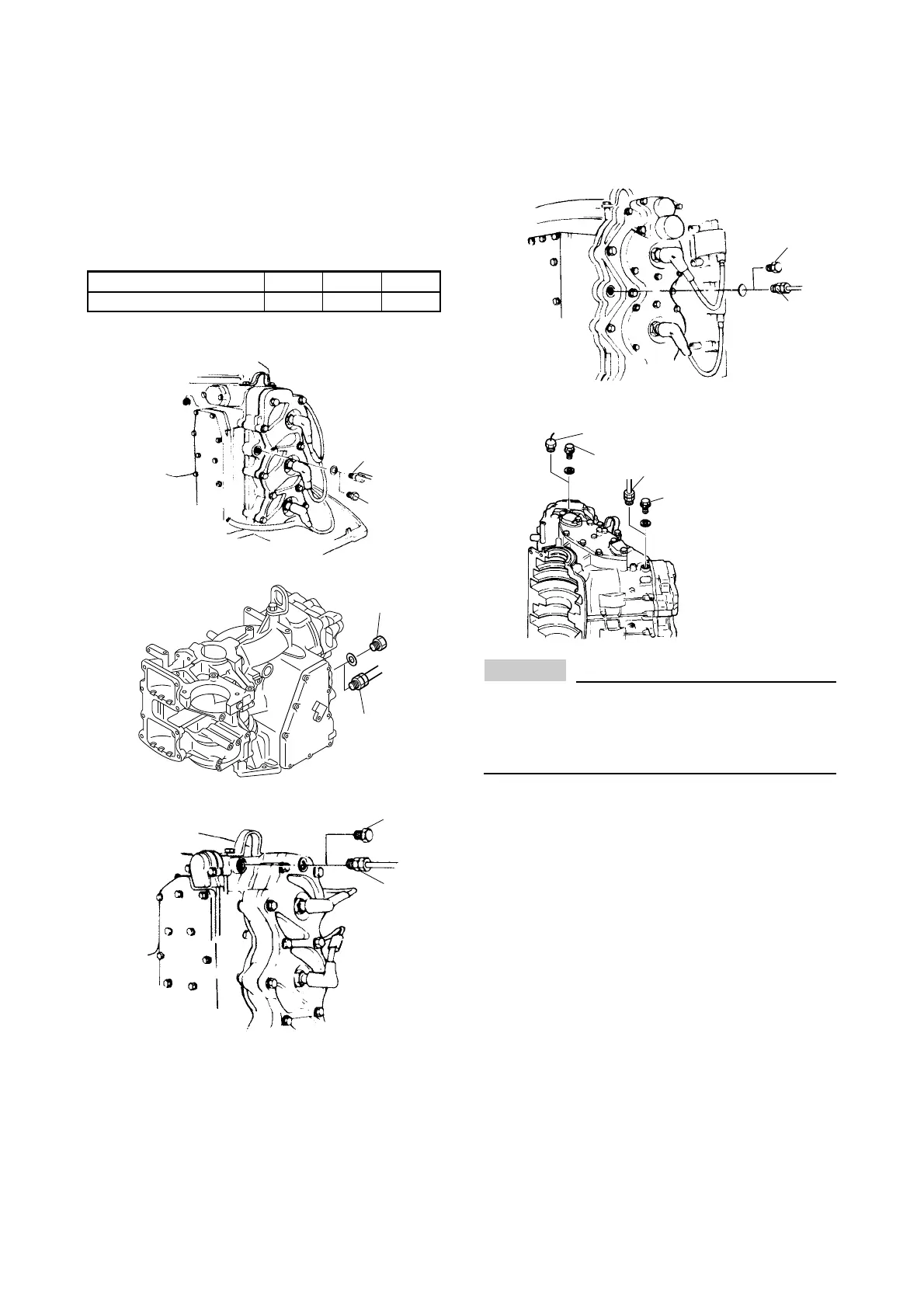

Remove the screw plug (1) from the cylinder
head and install the sensor/attachment (2) with
a new gasket.
After installing the sensor/attachment, check
for water leakage.
40V, 50H
E48C, 55B
60F, 70B
75C, 90A, 75A, 85A
V4, V6
NOTICE
Install the coolant pressure attachment on
the port side. If it is installed on the star-
board side, the tube could cause damage
by hard bending.
Tightening torque N•m kgf•m ft•lb
Sensor/attachment (M14) 20 2.0 15
(1)
(2)
(1)
(2)
(1)
(2)
(1)
(2)
(1)
(1)
(2) Coolant temp. sensor
(2) Coolant press. attachment
