Zebra PS20 Series User Manual

DataWedge
184

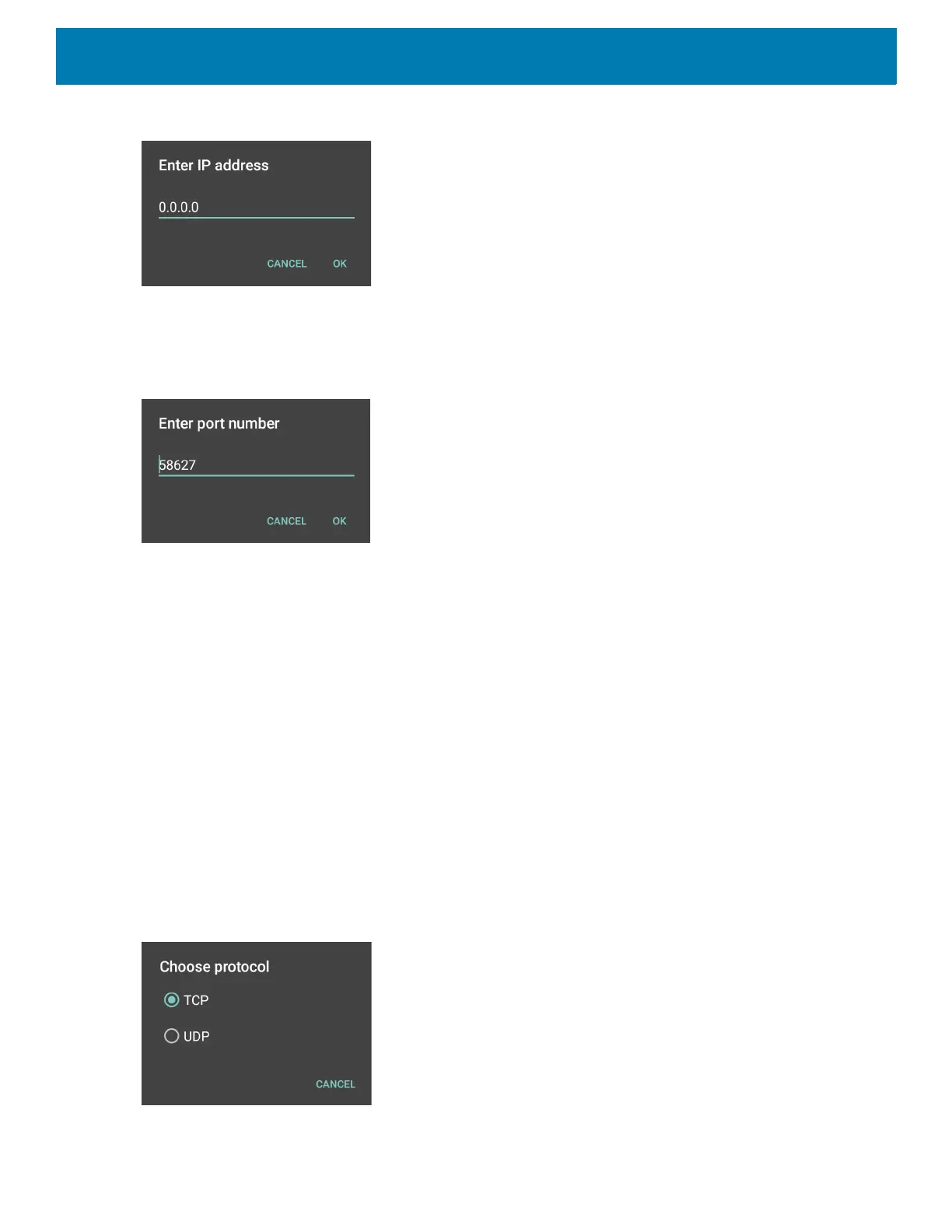

Figure 132 IP Address Entry
7. Touch Port.
8. In the Enter port number dialog box, enter same port number selected for IPWedge computer application.
Figure 133 Port Number Entry
9. Configure Advanced data formatting and Basic data formatting Plug-in if any required modification to be
done to captured data before sending to remote computer.
Using IP Output without IPWedge
IP Output Plug-in can be used to send captured data from DataWedge to a remote device or host computer
without using IPWedge. At the data receiving end, the host computer or mobile device should have an
application, that listens to TCP or UDP data coming from a configured port and IP address in the IP Output
plug-in. To enable IP Output to send captured data to a remote computer:
1. In IP Output, touch Enabled.
A check appears in the checkbox.
2. Ensure Remote Wedge option is disabled.
3. Touch Protocol.
4. In the Choose protocol dialog box, touch the same protocol selected in the client application. (TCP is the
default).
Figure 134 Protocol Selection
5. Touch IP Address.
