• Blink: Tap to test the cradle LED operation.
Setting the Cradle
The Cradle Utility allows you to manually enter cradle settings. To automatically enter cradle settings, use the
optional Smart Cradle Configuration app (CradleSmartConfig).
Setting the cradle charging rate: Depending on the cradle installation configuration, the store technician can
configure each individual cradle slot to enable/disable fast charge. Each cradle can be configured to charge its
docked terminal at 1A (normal charging mode - default setting) or 1.5A (fast charging mode).
NOTE: The cradle charging rate is retained across firmware upgrades.
1. Tap the Settings tab to set the cradle information.

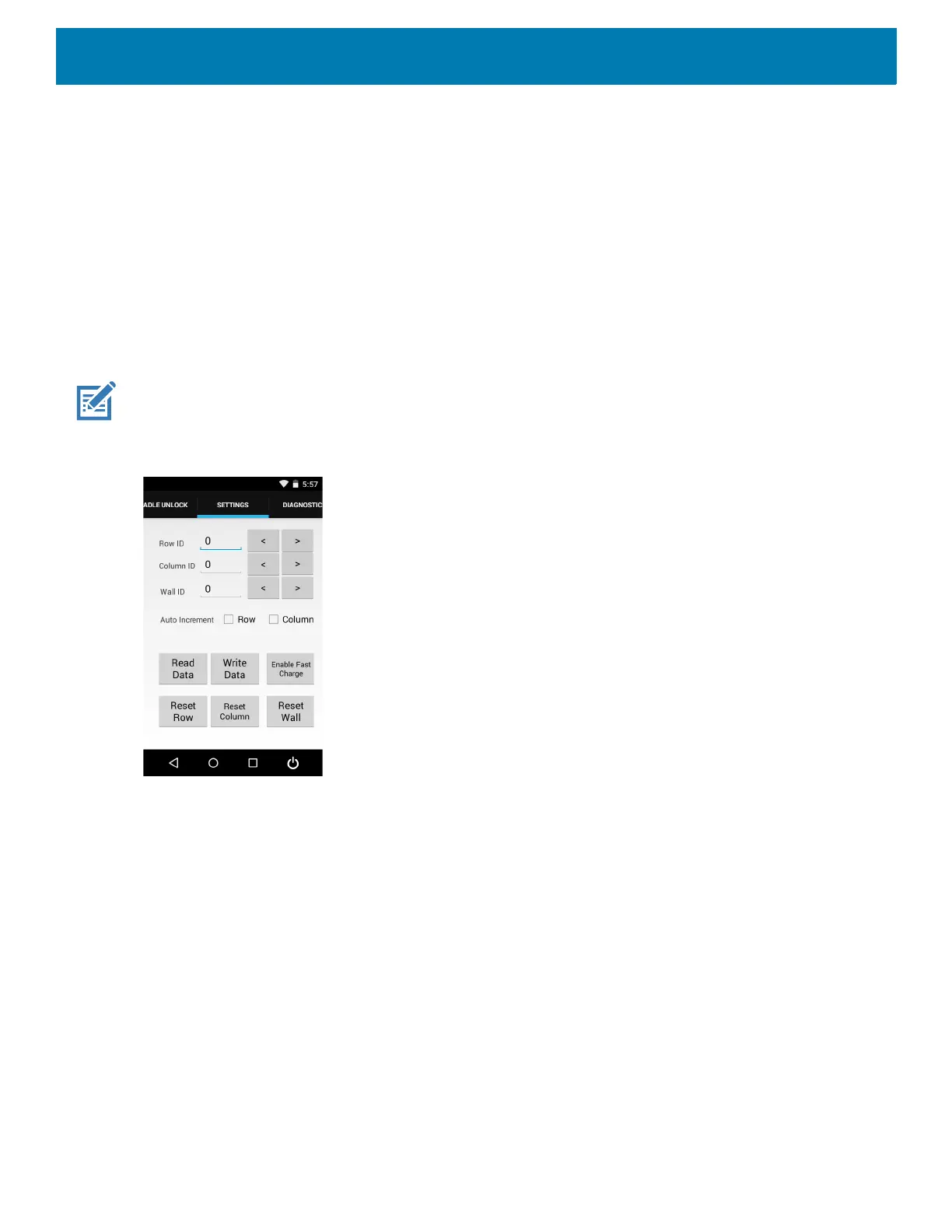

Figure 51 Cradle Utility - Setting Tab
• Row ID: The cradle row number in the dispenser wall.
• Column ID: The cradle column number in the dispenser wall.
• Wall ID: The number of dispenser wall where the cradle is positioned.
• Read Data: Retrieve setting data from the cradle memory and display on the screen.
• Write Data: Tap this button to program the row/col/wall information onto the cradle. Note that each slot on
the Three Slot Cradle needs to be programmed separately.
• Enable Fast Charge: Enable the cradle to charge the PS20 at a current of 1.5A (default setting is 1A)
• Reset Row: Tap to update the Row ID in the text field to “0” on the application.
• Reset Column: Tap to update the Column ID in the text field to “0” on the application.
• Reset Wall: Tap to update the Wall ID in the text field to “0” on the application.
