Operation principle and hardware description
32

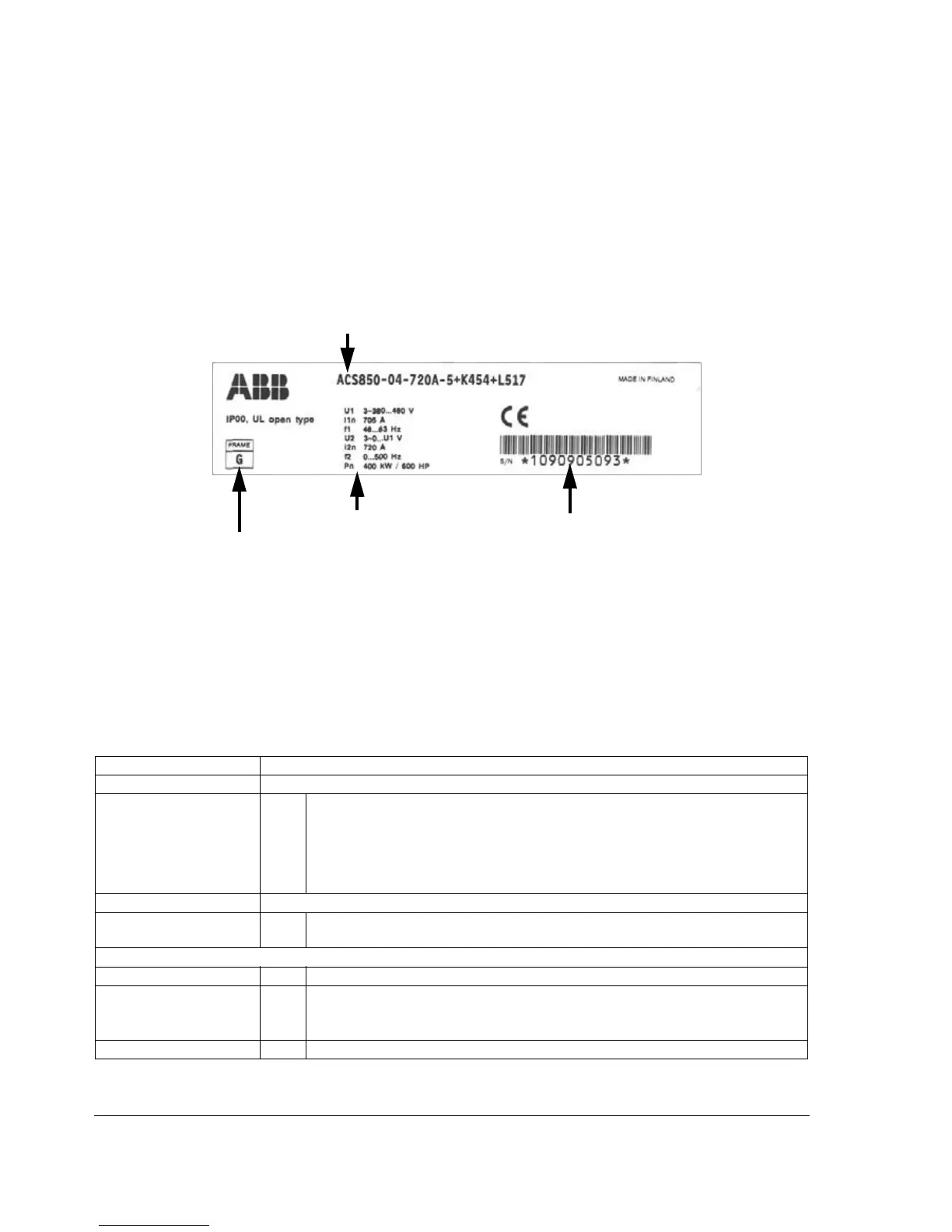

Type designation label
The type designation label includes an IEC and NEMA rating, CE, C-UL US, and
CSA markings, a type designation and a serial number, which allow individual
recognition of each unit. The first digit of the serial number refers to the
manufacturing plant. The next four digits refer to the unit’s manufacturing year and
week respectively. The remaining digits complete the serial number so that there are
no two units with the same serial number. The type designation label is located on
the front cover. An example label is shown below.
Type designation key
The type designation contains information on the specifications and configuration of
the drive module. The first digits from left express the basic configuration eg,
ACS850-04-430A-5. The optional selections are given thereafter, separated by plus
signs eg, +E210. The main selections are described below. Not all selections are
available for all types. For more information, refer to ACS850-04 Ordering
Information (3AUA0000027760), available on request.
Selection Alternatives
Product series ACS850 product series
Type 04 Drive module. When no options are selected: IP00 (UL open type), top entry, side exit,
JCU Drive Control Unit with front cover but no control panel, no EMC filter, Standard
Control Program, Safe Torgue Off function, coated boards, pedestal with output on the
long side, output busbar set for motor, pedestal busbars for brake resistor and DC
connection, base and wall mounting brackets, Hardware manual and Quick Start-up
Guide (multilingual) and CD containing all manuals.
Size Refer to the rating tables, page 111
Voltage range (nominal
rating in bold)
5 380/400/415/440/460/480/500 VAC
+ options
Resistor braking D150 Brake chopper
Filter E210 EMC/RFI filter for second environment TN/IT (grounded/ungrounded) system,
category 3
E208 common mode filter
Pedestal 0H354 No pedestal
Type designation, see section Type designation key on page 32.
