Mechanical installation
47
Mechanical installation
What this chapter contains
This chapter describes how to install the drive module into a cabinet. First, before-
installation information is given, such as required tools, moving the unit and checking
the delivery. Then, the mechanical installation procedure is described.
Safety

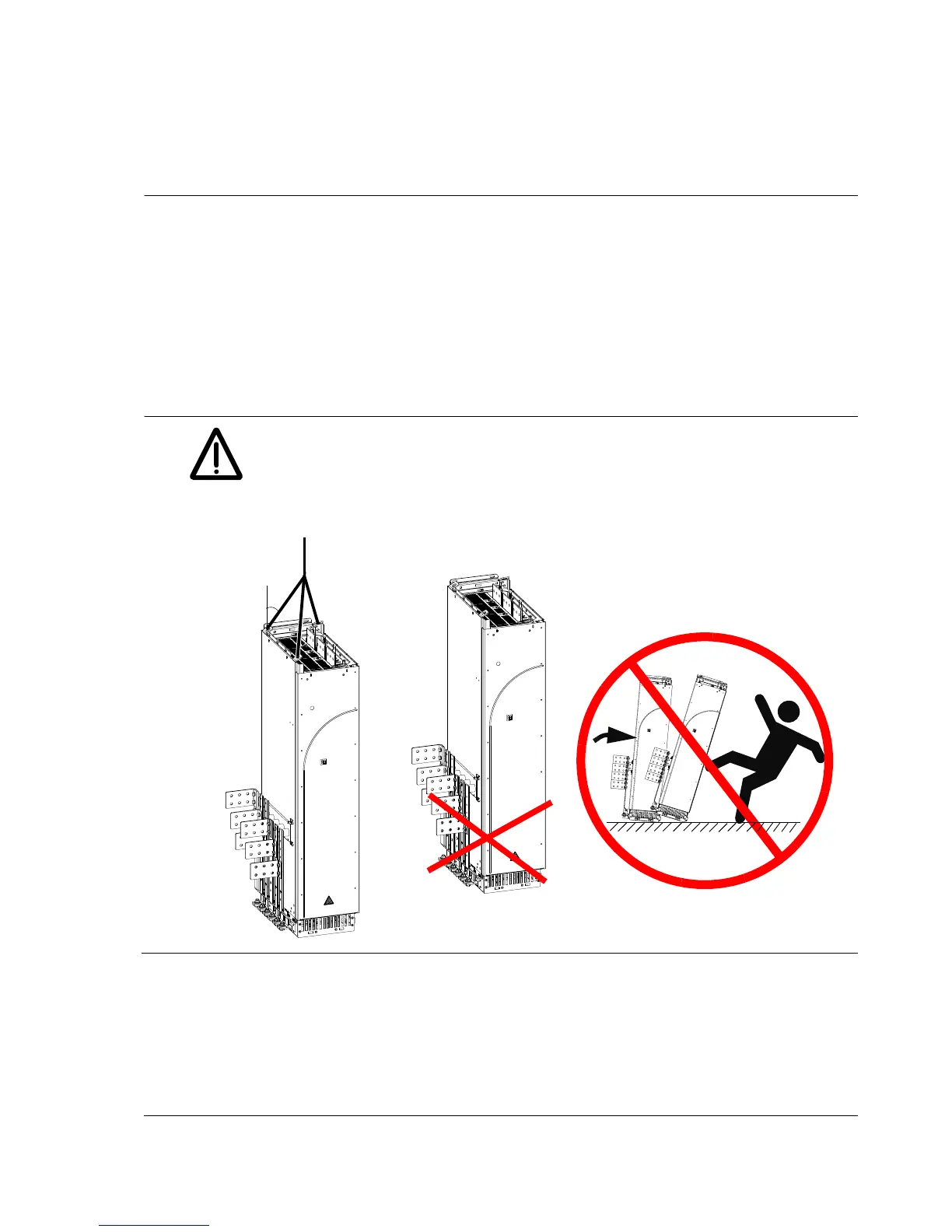

WARNING! The drive module is heavy 200 kg (441 lb). Lift it by the upper part only
using the lifting lugs attached to the top of the unit. The lower part will be deformed
from lifting. Do not remove the pedestal before lifting.
Do not tilt the drive. The centre of gravity of the unit is high. The unit will overturn
from a tilt of about 6 degrees. An overturning unit can cause physical injury.
Do not lift by the lower
part of the frame.
M
a
x
3
0
°
Do not tilt!
