ABB ACS850 Hardware Manual

Electrical installation
84

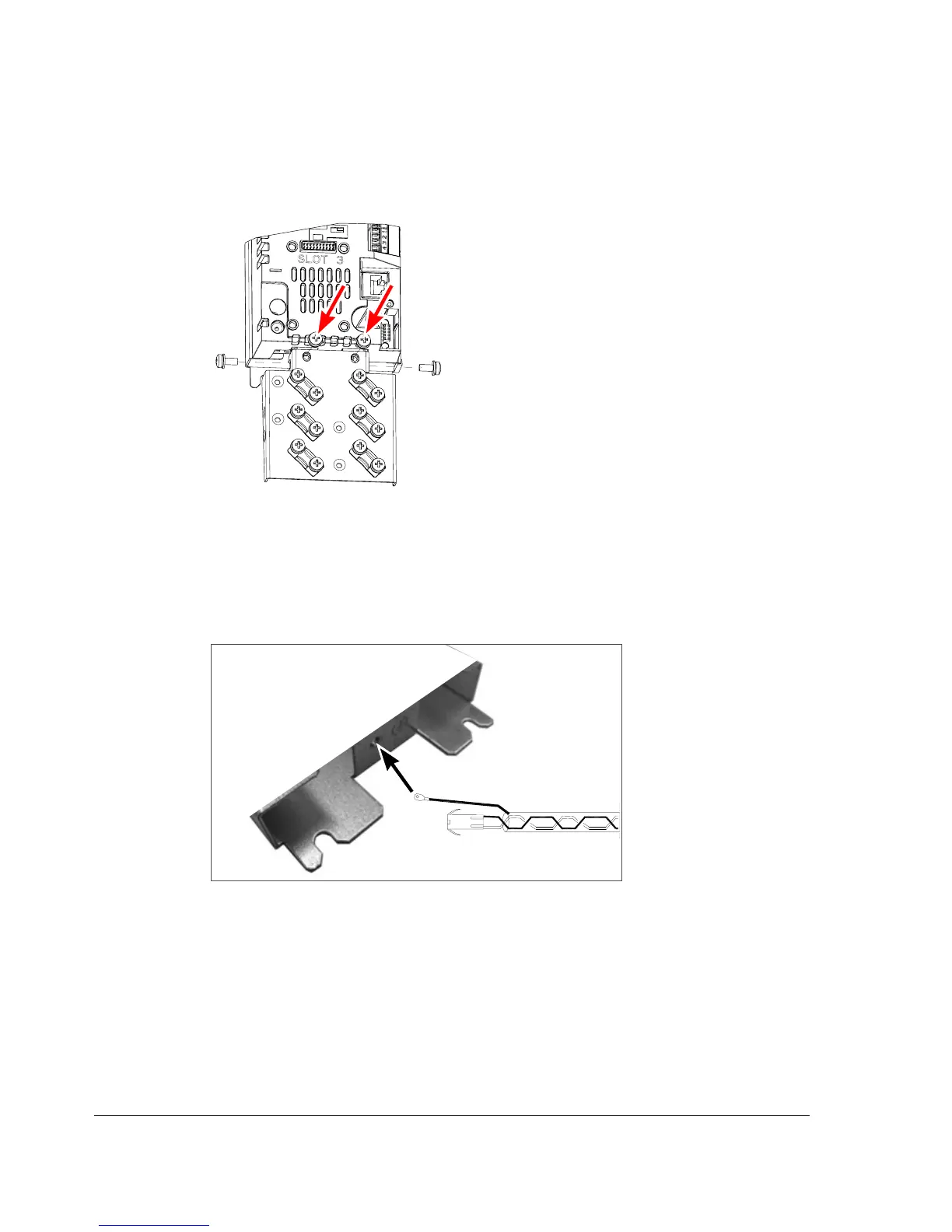

Fastening the control cable clamp plate
Fasten the control cable clamp plate either to the top or base of the control unit with
four screws as shown below.
Grounding the control unit
If the control unit is not grounded through DIN rail mounting, connect the APOW
cable grounding wire to the grounding terminal at the back top or bottom of the
control unit.
0.7 N·m
(6.2 lbf·in)
A grounding terminal is
provided at the base and top of
the control unit back frame.
