Mechanical installation
54
Vertical DIN rail mounting

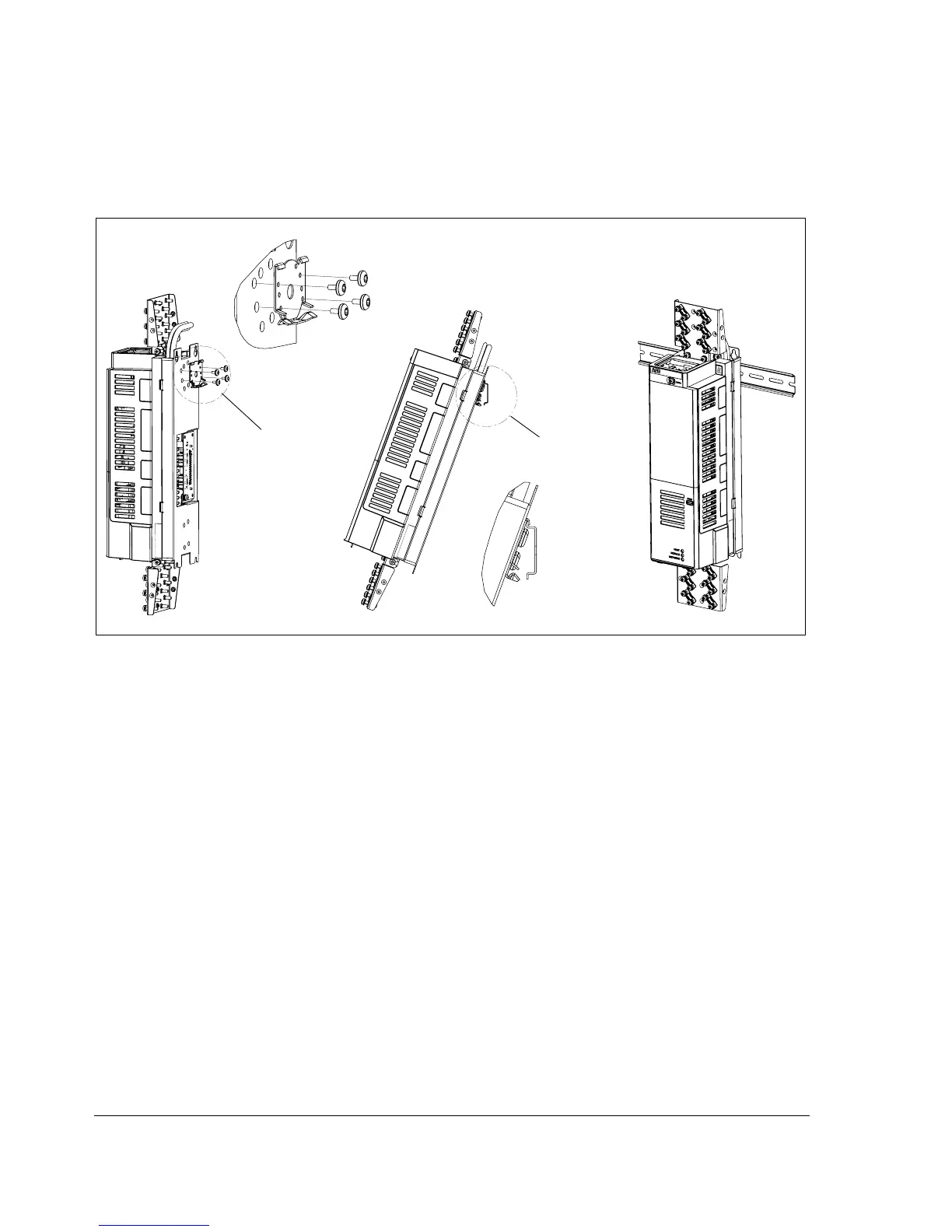

1. Fasten the latch (A) to the back of the control unit with four screws.
2. Click the control unit to the rail as shown below (B).
A
3aua0000038989
A
B
B
