ABB ACS850 Hardware Manual

Electrical installation
81

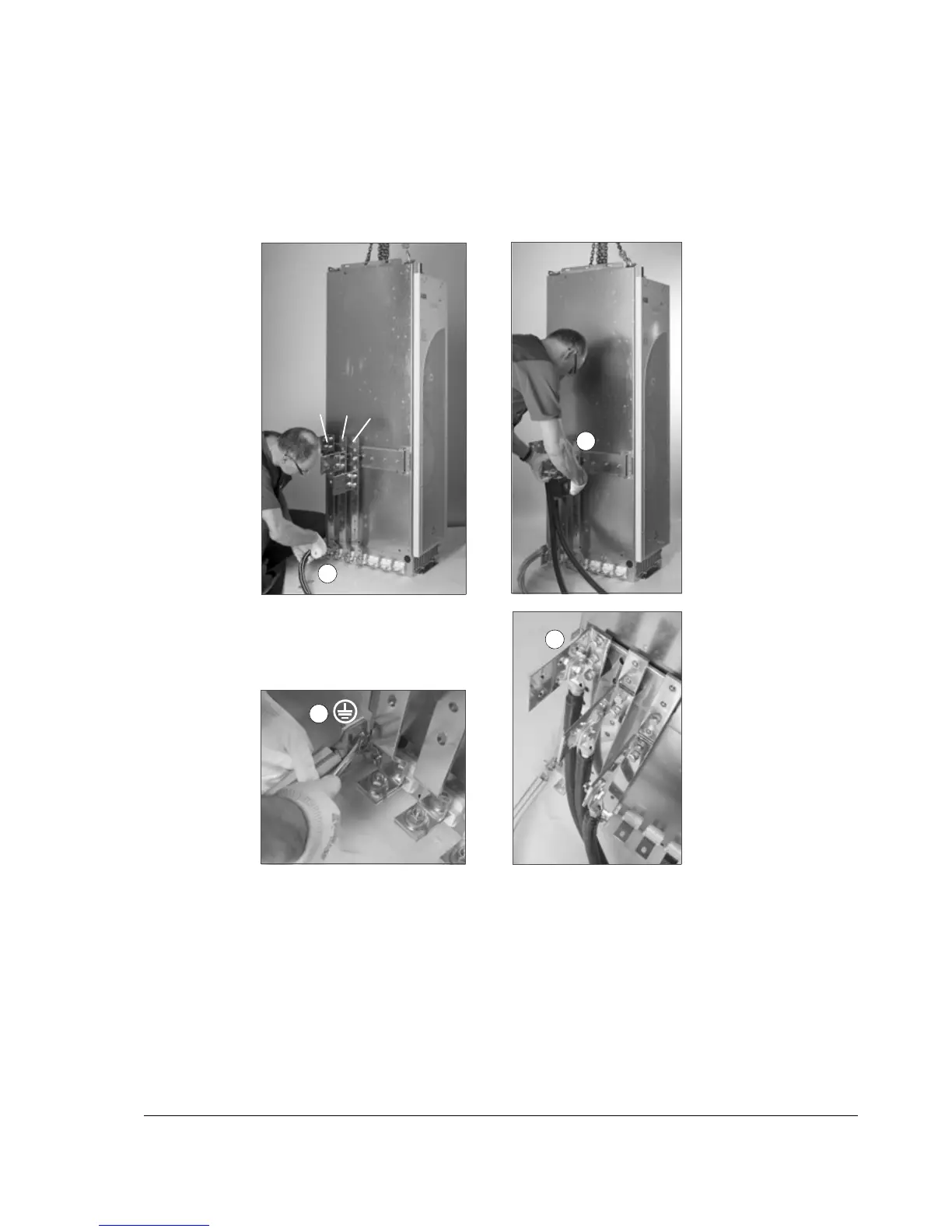

Motor cable connection procedure
1. Connect the twisted shield of the motor cable to the grounding terminal with a
cable lug.
2. Connect the phase conductors to the cable lug terminals U2, V2 and W2.
It is recommended to ground the motor cable shield 360° at the cabinet cable entry,
see page 41.
1
2
1
2
V2
U2
W2
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com

ABB ACS850 Specifications

General

Safety	STO (Safe Torque Off)
Communication	CANopen
Enclosure	IP21
Output Voltage	Up to 1000 V DC
Protection Features	Overcurrent, Overvoltage, Undervoltage
Cooling Method	Air or liquid cooling
Input Voltage	380 to 690 V AC
