ABB ACS880 PCP User Manual

Parameters 169
14.86 AO2 actual value (Visible when 14.01 Module 1 type = FAIO-01)
Displays the value of AO2 in mA.
This parameter is read-only.
-
0.000…22.000 mA Value of AO2. 1000 = 1 mA
14.87 AO2 source (Visible when 14.01 Module 1 type = FAIO-01)
Selects a signal to be connected to analog output AO2.
Alternatively, sets the output to excitation mode to feed a
constant current to a temperature sensor.
For the selections, see parameter 14.77 AO1 source.
Zero
14.88 AO2 force data (Visible when 14.01 Module 1 type = FAIO-01)
Forced value that can be used instead of the selected
output signal. See parameter 14.71 AO force selection.
0.000 mA
0.000…22.000 mA Forced value of analog output AO2. 1000 = 1 mA
14.89 AO2 filter time (Visible when 14.01 Module 1 type = FAIO-01)
Defines the filtering time constant for analog output AO2.
0.100 s
0.000…30.000 s Filter time constant. 1000 = 1 s

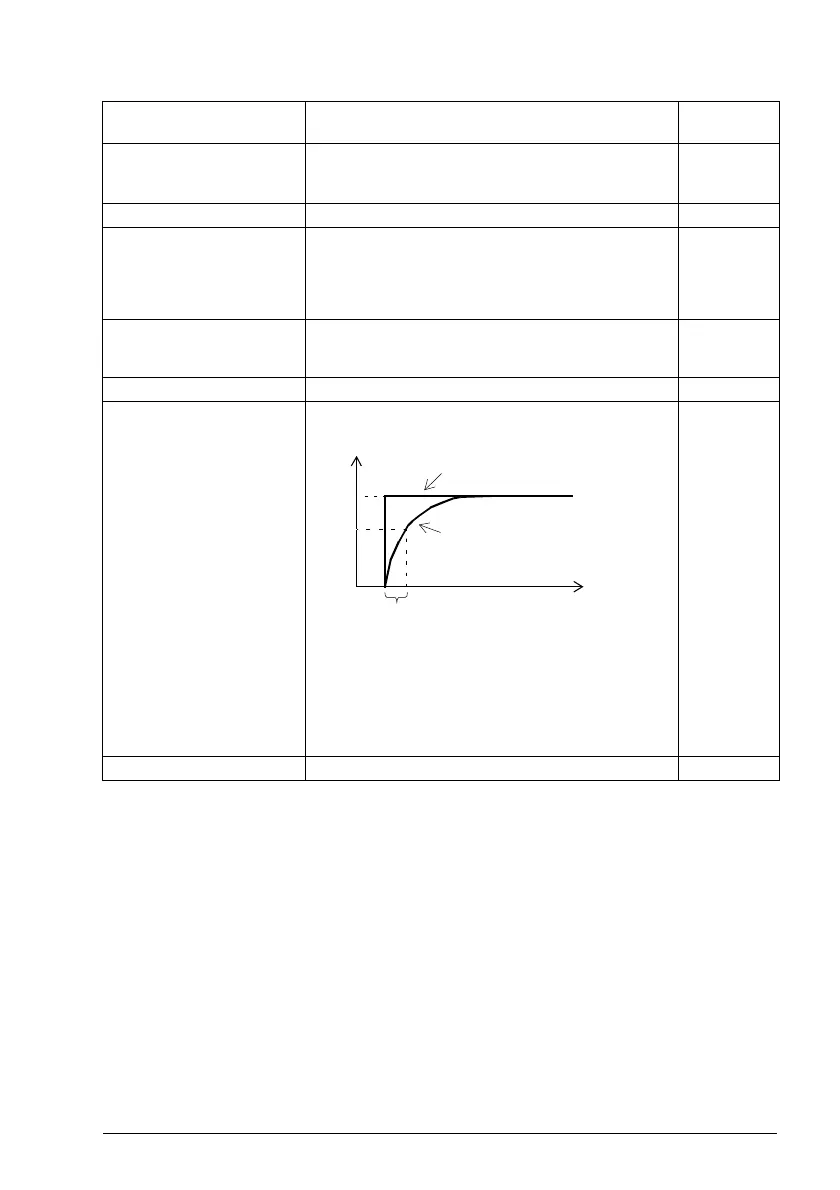

No. Name/Value Description Def/
FbEq16
63
%
100
T
t
O = I × (1 - e
-t/T
)
I = filter input (step)
O = filter output
t = time
T = filter time constant
Unfiltered signal
Filtered signal

ABB ACS880 PCP Specifications

General

Output current	Up to 5200 A
Input voltage	380-690 V
Power range	5600 kW
Cooling method	Air or liquid
Protection class	IP21, IP54
Communication interfaces	Ethernet, CANopen
