Parameters 165
14.65 AI3 scaled at AI3 min (Visible when 14.01 Module 1 type = FIO-11)
Defines the real value that corresponds to the minimum
analog input AI3 value defined by parameter 14.63 AI3
min.
0.000
-32768.000
…32767.000
Real value corresponding to minimum AI3 value. 1 = 1
14.66 AI3 scaled at AI3 max (Visible when 14.01 Module 1 type = FIO-11)
Defines the real value that corresponds to the maximum
analog input AI3 value defined by parameter 14.64 AI3
max. See the drawing at parameter 14.65 AI3 scaled at
AI3 min.
100.000
-32768.000
…32767.000
Real value corresponding to maximum AI3 value. 1 = 1
14.71 AO force selection (Visible when 14.01 Module 1 type = FIO-11 or FAIO-01)
The value of the analog output can be overridden for eg.
testing purposes. A forced value parameter (14.78 AO1
force data) is provided for the analog output, and its value
is applied whenever the corresponding bit in this
parameter is 1.
00b
00b…11b Forced values selector for analog outputs. 1 = 1
14.76 AO1 actual value (Visible when 14.01 Module 1 type = FIO-11 or FAIO-01)
Displays the value of AO1 in mA.
This parameter is read-only.
-
0.000…22.000 mA Value of AO1. 1000 = 1 mA
14.77 AO1 source (Visible when 14.01 Module 1 type = FIO-11 or FAIO-01)
Selects a signal to be connected to analog output AO1.
Alternatively, sets the output to excitation mode to feed a
constant current to a temperature sensor.
Zero
Zero None. 0
No. Name/Value Description Def/
FbEq16

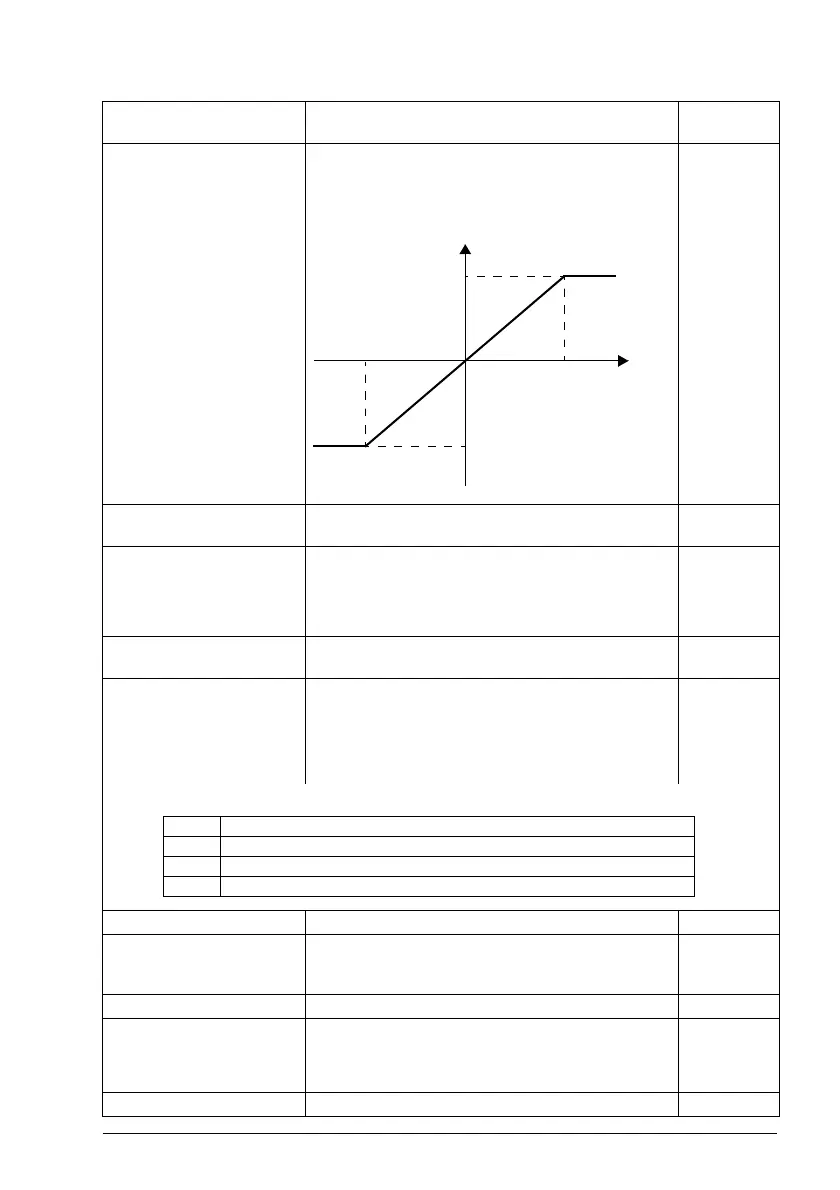

14.66
14.64
14.63
14.65
AI
in
(14.56)
AI
scaled
(14.57)
Bit Value
0 1 = Force AO1 to value of parameter 14.78 AO1 force data.
1 1 = Force AO2 to value of parameter 14.88 AO2 force data (FAIO-01 only).
3…15 Reserved.
