14.90 AO2 source min (Visible when 14.01 Module 1 type = FA IO-01 )
Defines the real value of the signal (selected by parameter
14.87 AO2 source) that corresponds to the minimum AO2
output value (defined by parameter 14.92 AO2 out at AO2
src min).
0.0
-32768.0…32767.0 Real signal value corresponding to minimum AO2 output
value.
1 = 1
14.91 AO2 source max (Visible when 14.01 Module 1 type = k)
Defines the real value of the signal (selected by parameter
14.87 AO2 source) that corresponds to the maximum AO2
output value (defined by parameter 14.93 AO2 out at AO2
src max). See parameter 14.90 AO2 source min.
100.0
-32768.0…32767.0 Real signal value corresponding to maximum AO2 output
value.
1 = 1
14.92 AO2 out at AO2 src
min
(Visible when 14.01 Module 1 type = FAIO -0 1 )
Defines the minimum output value for analog output AO2.
See also drawing at parameter 14.90 AO2 source min.
0.000 mA
0.000…22.000 mA Minimum AO2 output value. 1000 = 1 mA
14.93 AO2 out at AO2 src
max
(Visible when 14.01 Module 1 type = FAIO -0 1 )
Defines the maximum output value for analog output AO2.
See also drawing at parameter 14.90 AO2 source min.
10.000 mA
0.000…22.000 mA Maximum AO2 output value. 1000 = 1 mA

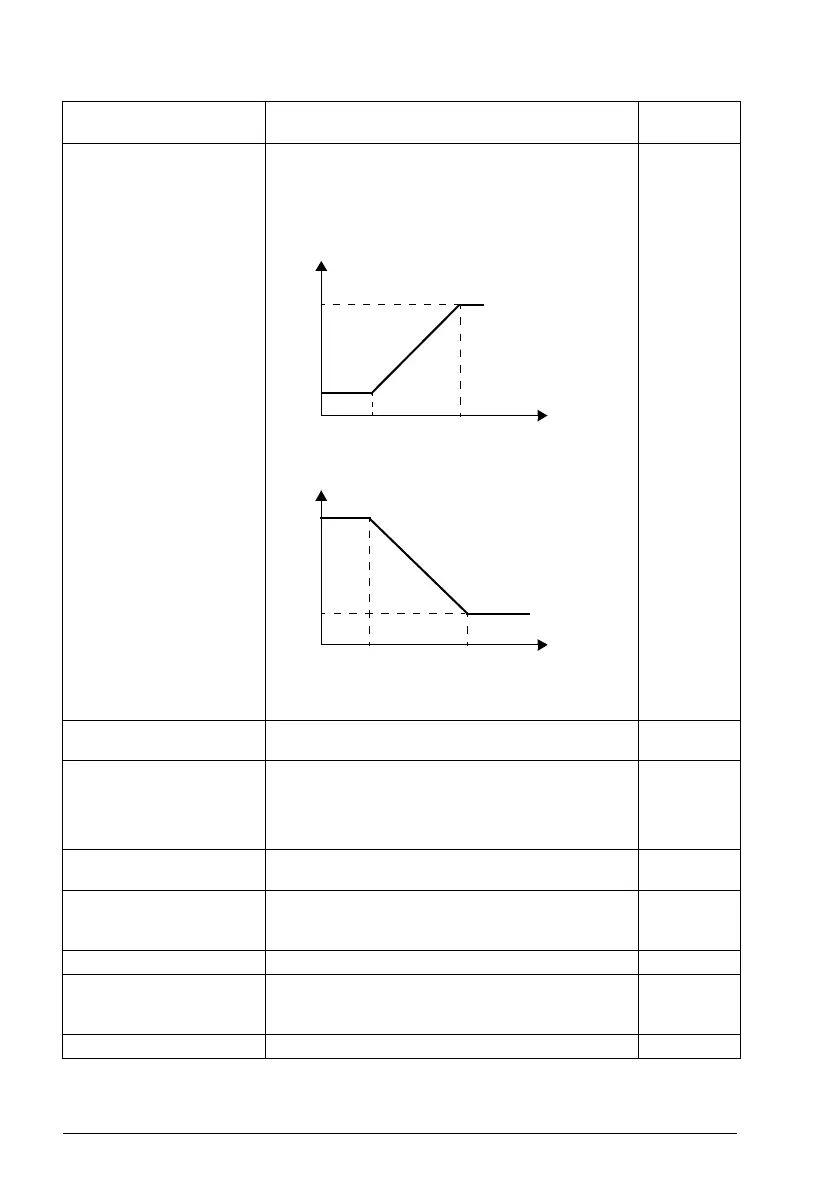

No. Name/Value Description Def/
FbEq16
I
AO1
(mA)
14.93
14.92
14.91 14.90
14.9114.90
14.93
14.92
Signal (real)
selected by par.
14.87
I
AO1
(mA)
Signal (real)
selected by par.
14.87
