Advanced maintenance D87

FTIR data

To gather FTIR diagnostics data from the Maintenance page, click Sensors diagnostics>FTIR. A table

appears indicating various parameters and values.

—

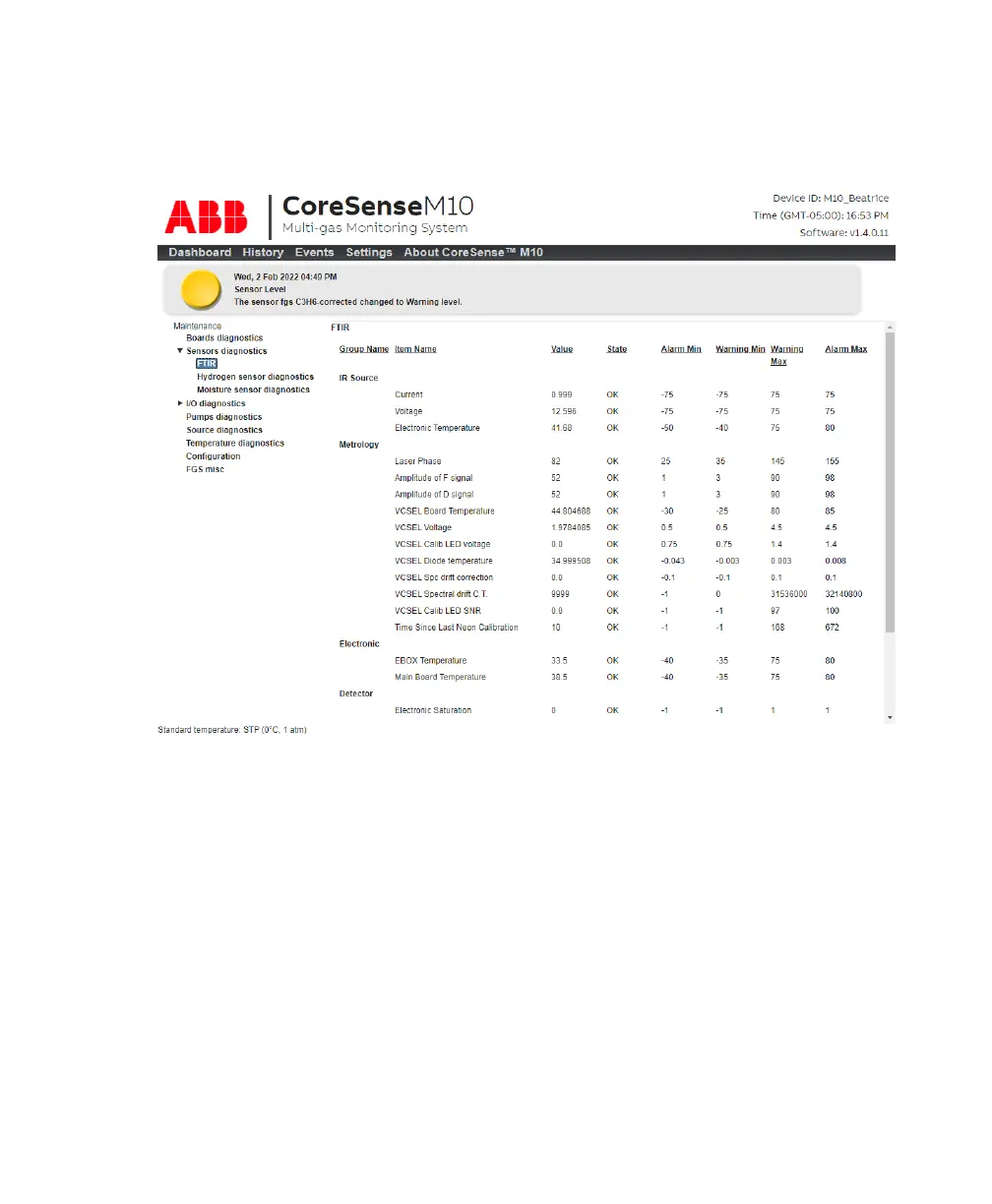

Figure 58 FTIR diagnostics data
