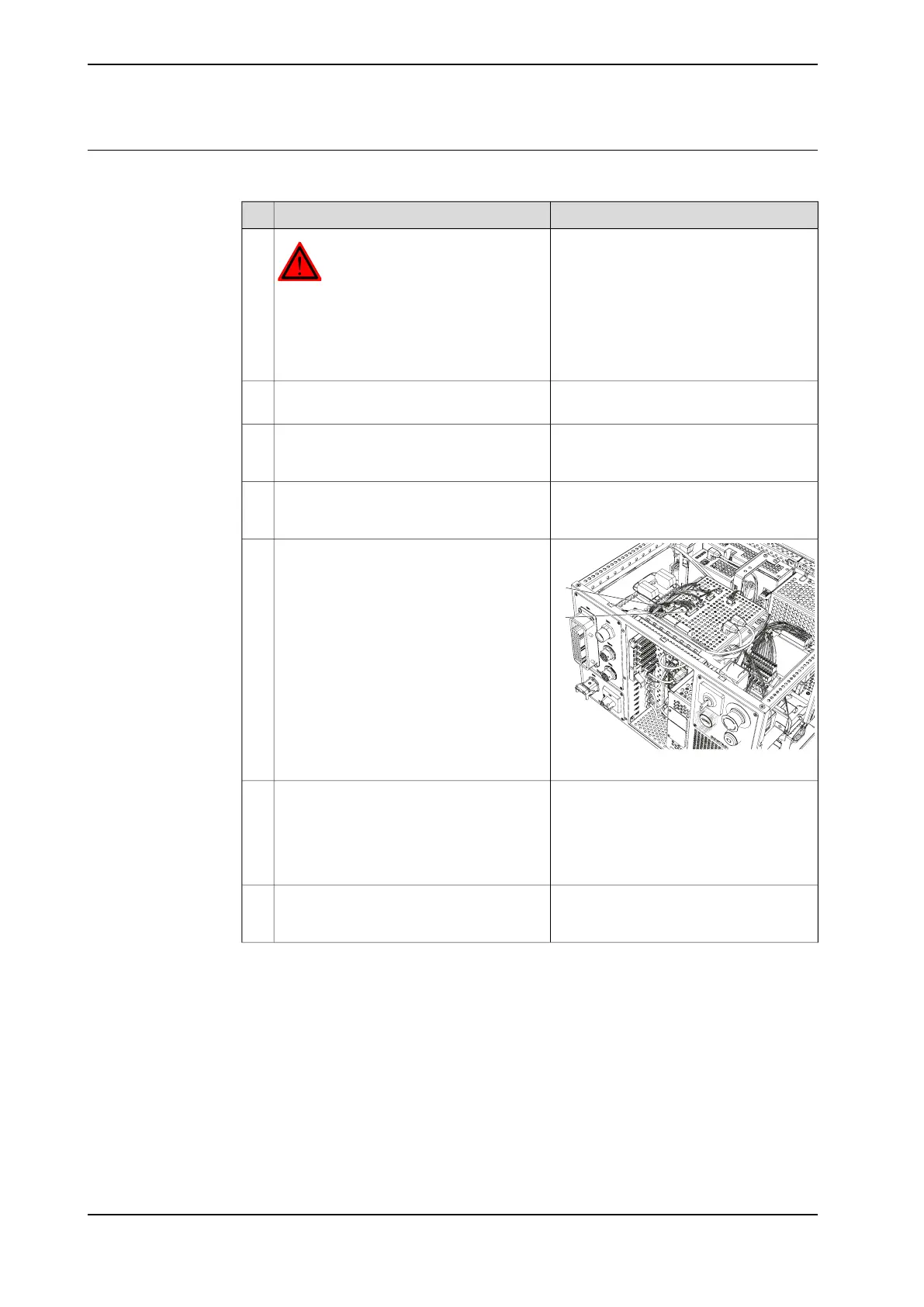

Procedure
The procedure below details how to install the external control panel.
Info/illustrationAction
DANGER
Before commencing any work inside the
cabinet, please observe the safety informa-
tion in section DANGER - Make sure that
the main power has been switched off! on
page 33.
1
See Opening the IRC5 Compact controller
on page 89.
Remove the cover of the cabinet.2
Remove the two attachment screws for the
safety board unit and gently pull it out a
little bit.
3
Remove the contactor unit (contactors at-
tached with plate) attachment screws and
move the unit leftwards a little bit.
4
xx1500000114
Disconnect signal cabling from the safety
board.
Connectors:
• A21.X6
• A21.X9
5
Detach the Emergency stop button, Motor
on button and Mode switch together with
their cabling on the controller. Mount these
buttons and switch on the external operat-
or's panel and strap the cabling to the exist-
ing cable strapping behind the front panel.
6
Connect the round connector from the ex-
ternal operator's panel harness to XS4 on
the controller.
7
Continues on next page
100 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
2 Installation and commissioning
2.11.1 Installation of external operator's panel
Continued
