2.4 On-site installation
2.4.1 Required installation space
Dimensions

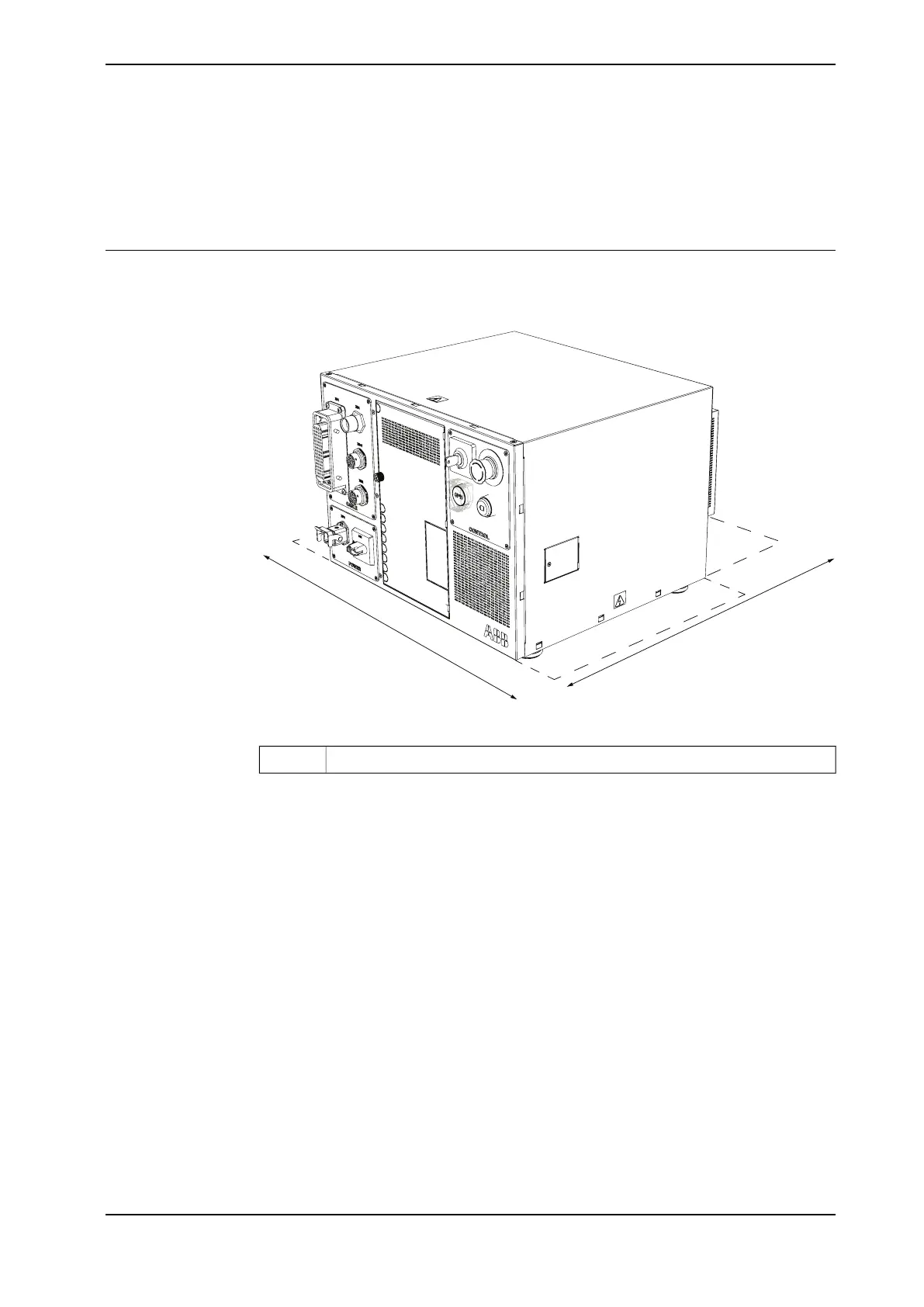

The following illustration shows the required installation space for the IRC5 Compact
controller.
5
4
0
m
m
5
0
m
m
5
0
m
m
1
0
0
m
m
5
5
0
m
m
xx1400001367
Not required if the controller is rack-mounteda)
• A free space of 50 mm on both left and right side of the controller is required
if the controller is mounted on desk (not rack-mounted).
• A free space of 100 mm on the back of the controller is required to ensure
proper cooling. Do not place customer cables over the fan cover on the back
of the controller (because this makes it difficult to inspect and it leads to
inefficient cooling).
