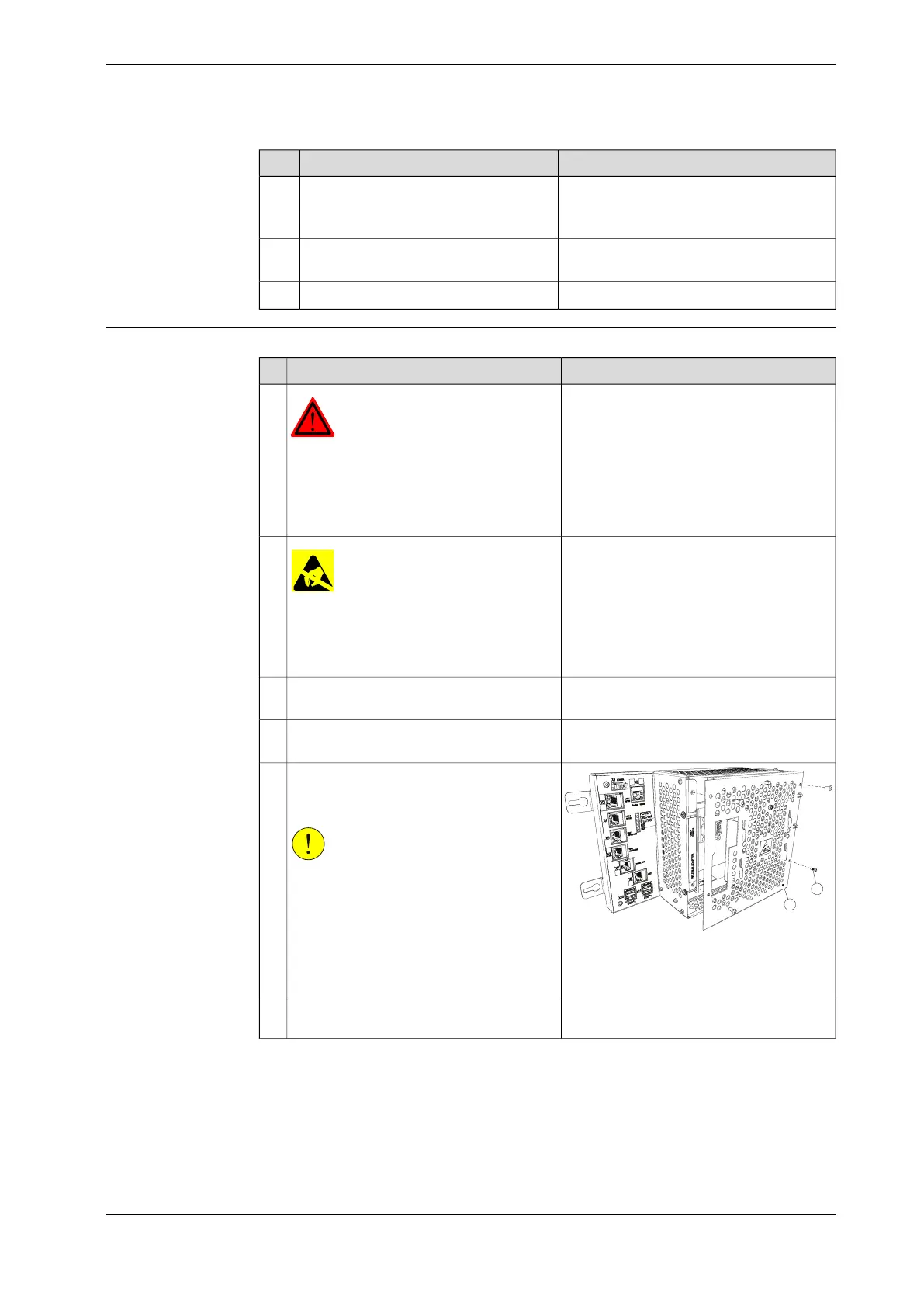

ABB IRC5 Compact User Manual

NoteEquipmentItem
3HAC057075-001Harness extended Key switchG
Used when the controller has the option
735-3 or 735-4 Additional contacts.
The contents are defined in section Stand-
ard toolkit, IRC5 on page 207.
Standard toolkit
See Circuit diagrams on page 217.Circuit diagram
Installing the Safety module
Note/IllustrationAction
DANGER
Before commencing any work inside the
cabinet, please observe the safety inform-
ation in section DANGER - Make sure that
the main power has been switched off! on
page 33.
1
ELECTROSTATIC DISCHARGE
(ESD)
The unit is sensitive to ESD. Before hand-
ling the unit please observe the safety in-
formation in section WARNING - The unit
is sensitive to ESD! on page 34
2
See Removing the controller cover on
page 89.
Remove the cover of the cabinet.3
See Replacement of computer unit on
page 138.
Remove the computer unit.4
B
A
xx1300000684
A Attachment screws (4 pcs.)
B Cover
Open the computer unit by removing the
attachment screws and lift off the cover.
Disconnect the fan connector.
CAUTION
Be careful with the fan cable when opening
and removing the upper cover. The fan
cable must not be stretched.
5
Remove the attachment screw on top of
the slot bracket.
6
Continues on next page
Product manual - IRC5 Compact 105
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
2 Installation and commissioning
2.11.3 Installing the Safety module DSQC1015 for SafeMove
Continued
