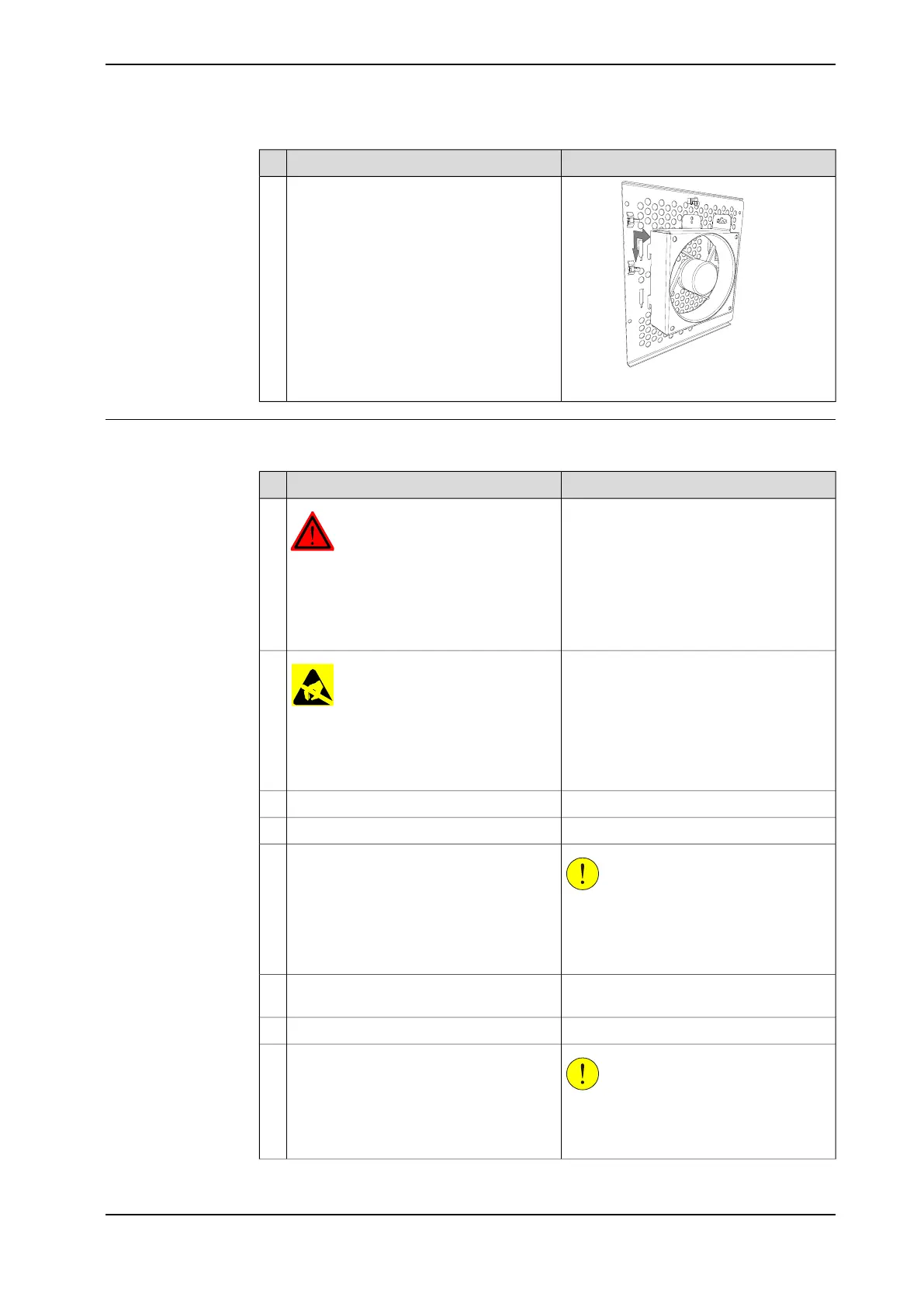

Note/IllustrationAction
xx1300000806
Remove the fan from the upper cover.8
Refitting
The procedure below details how to refit the fan in the computer unit.
Note/IllustrationAction
DANGER
Before commencing any work inside the
cabinet, please observe the safety inform-
ation in section DANGER - Make sure that
the main power has been switched off! on
page 33.
1
ELECTROSTATIC DISCHARGE
(ESD)
The unit is sensitive to ESD. Before hand-
ling the unit please observe the safety in-
formation in section WARNING - The unit
is sensitive to ESD! on page 34
2
Refit the fan on the upper cover.3
Refit the attachment screw.4
CAUTION
When strapping the cable make sure that
the cable is not stretched or squeezed, and
that the cable does not get caught in the
fan.
Strap the fan cable to the upper cover.5
See Replacement of computer unit on
page 138.
Refitt the computer unit.6
Refitt the controller cover.7
CAUTION
Be careful with the fan cable when closing
the upper cover. The fan cable must not be
squeezed.
Refit the fan connector and close the com-
puter unit.
8
Continues on next page
Product manual - IRC5 Compact 161
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.10 Replacement of fan in computer unit
Continued
