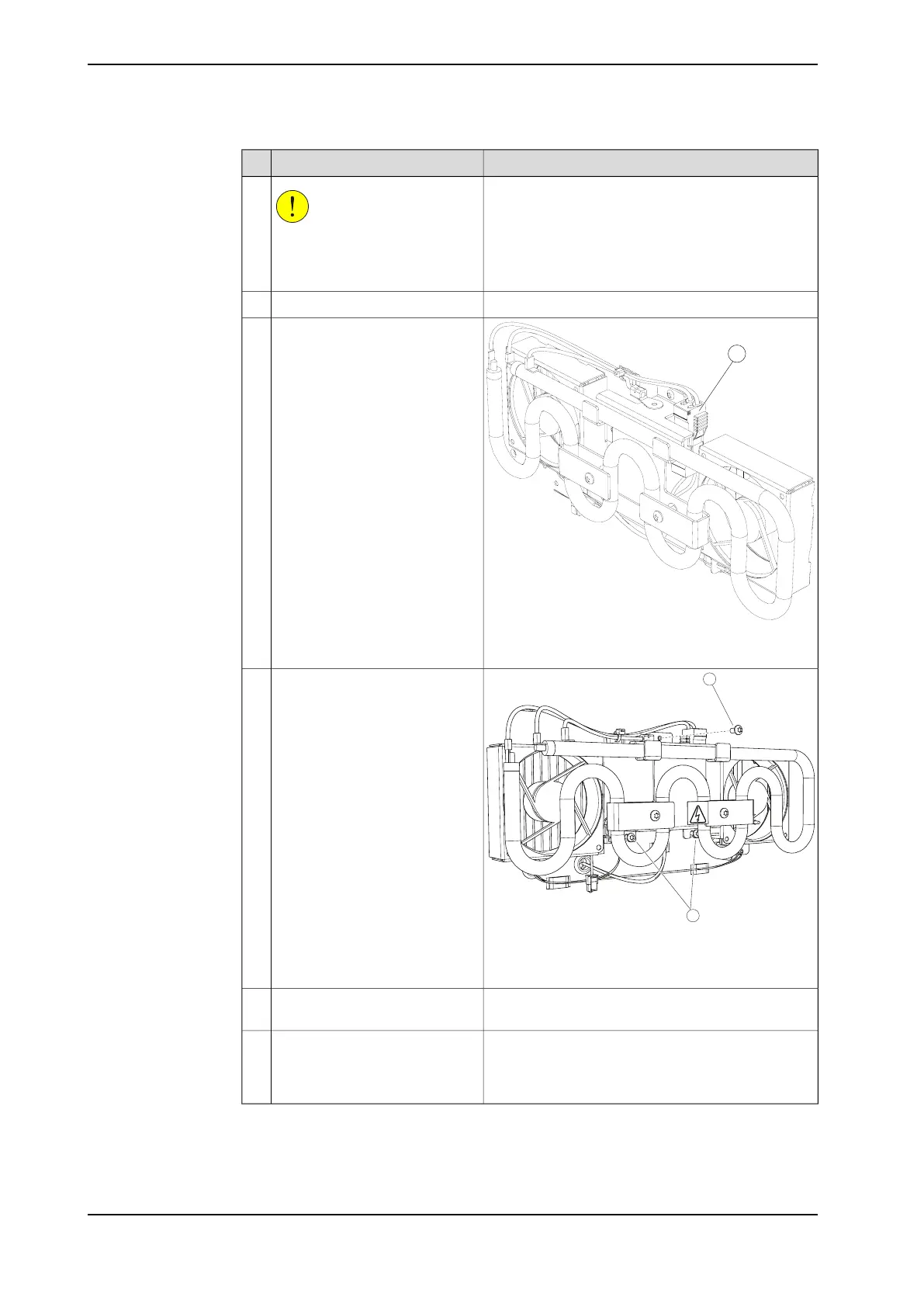

Note/illustrationAction
CAUTION
Hot surface on top of the bleeder.
Risk of burns. Be careful when
removing the unit.
2
Remove the fan cover.3
A
xx1500000119
Disconnect the bleeder connect-
or.
4
A Bleeder connector
A
B
xx1400001458
Loosen the two lower attachment
screws on the bleeder bracket.
5
A Upper attachment screw
B Lower attachment screws
Remove the upper attachment
screw.
6
Pull the brake resistor bleeder
upwards and then outwards, to
release it from the lower screw
heads, and remove it.
7
Continues on next page
176 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.15 Replacement of brake resistor bleeder
Continued
