ABB IRC5 Compact User Manual

Info/illustrationAction
xx1400002159

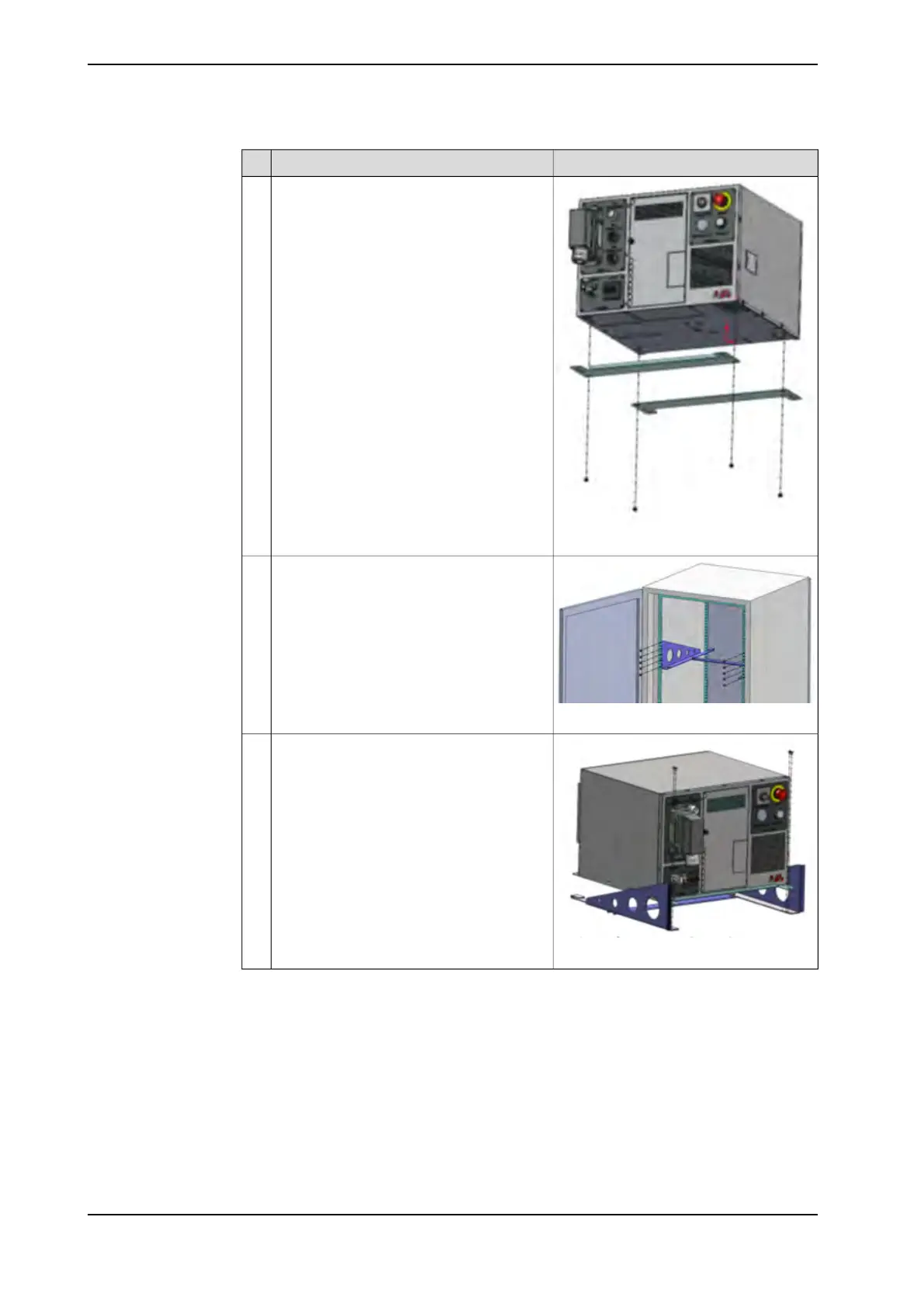

Assemble the mounting brackets.2
xx1500000232
Fit the right, left and middle mounting
brackets in the 19 inch cabinet.
3
xx1400002160
Insert the IRC5 Compact in the 19 inch cab-
inet so that the latches fit in the recesses in
the back of the mounting brackets. Fasten
the IRC5 Compact to the mounting brackets
with the attachment screws.
4
52 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
2 Installation and commissioning
2.4.3 Mounting the controller in a 19" cabinet
Continued
