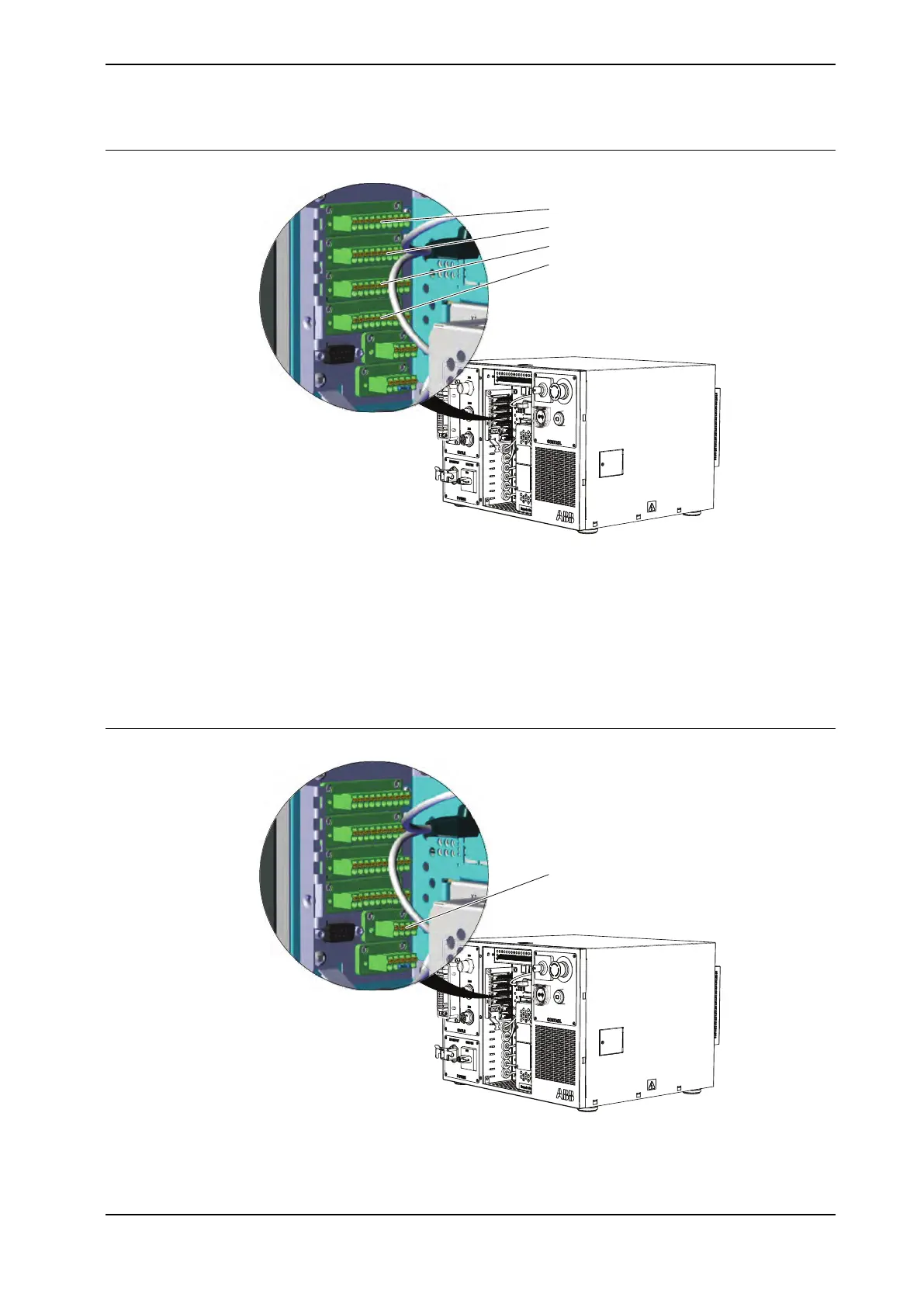

XS12, XS13, XS14 and XS15 I/O
XS14
XS13
XS12
XS15
xx1500002926
The connectors are internally connected with the I/O unit (DSQC 652).
The connectors contain 16 digital input signals, 16 digital output signals, 24V and
0V for the outputs, and 0V for the inputs. Note that 24V and 0V needs external
power supply.
For connection details, see circuit diagram for IRC5 Compact, see Circuit diagrams
on page 217.
XS16 Power Supply
XS16
xx1500002928
Continues on next page
Product manual - IRC5 Compact 77
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
2 Installation and commissioning
2.6.7 Descriptions for connectors XS7 - XS17
Continued
