Location
on
the
controller

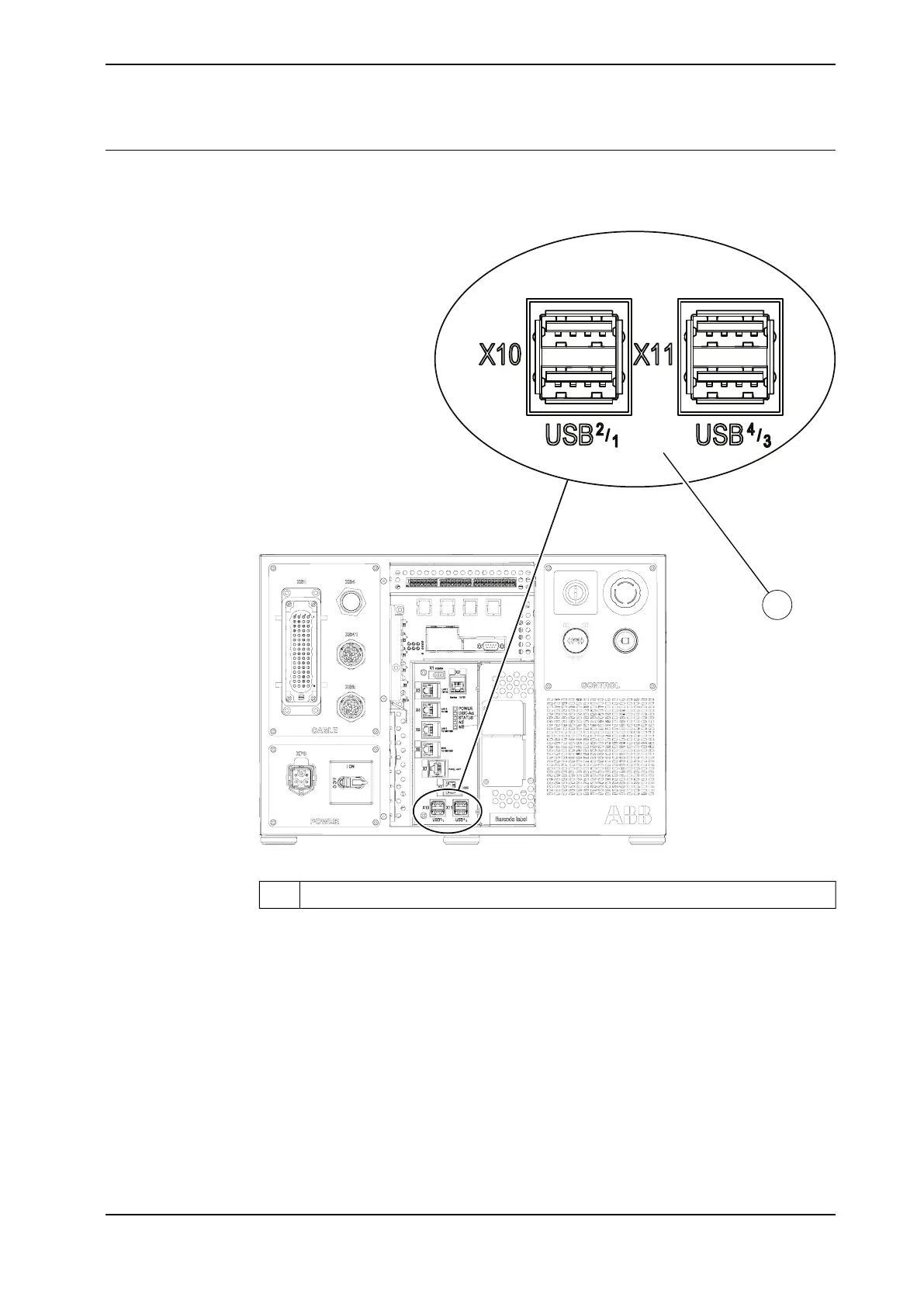

The
location
of
the
USB
ports
on
the
IRC5
Compact
controller
is
shown
by
the
following
illustration:
A
xx1400001376
USB
port
1
-
4
A
Product
manual
-
IRC5
Compact
93
3HAC047138-001
Revision:
G
©
Copyright
2009-2017
ABB.
All
rights
reserved.
2
Installation
and
commissioning
2.9.2
Connecting
a
USB
memory
Continued
92
94
