ABB SACE Emax 2 Installation, Operation And Maintenance Instructions

ABB | SACE Emax 2
Emax E1.2 circuit-breakers | 3 - Unpacking and handling
11 | © 2014 ABB | 1SDH000999R0002 - L8569
Continued from the previous page

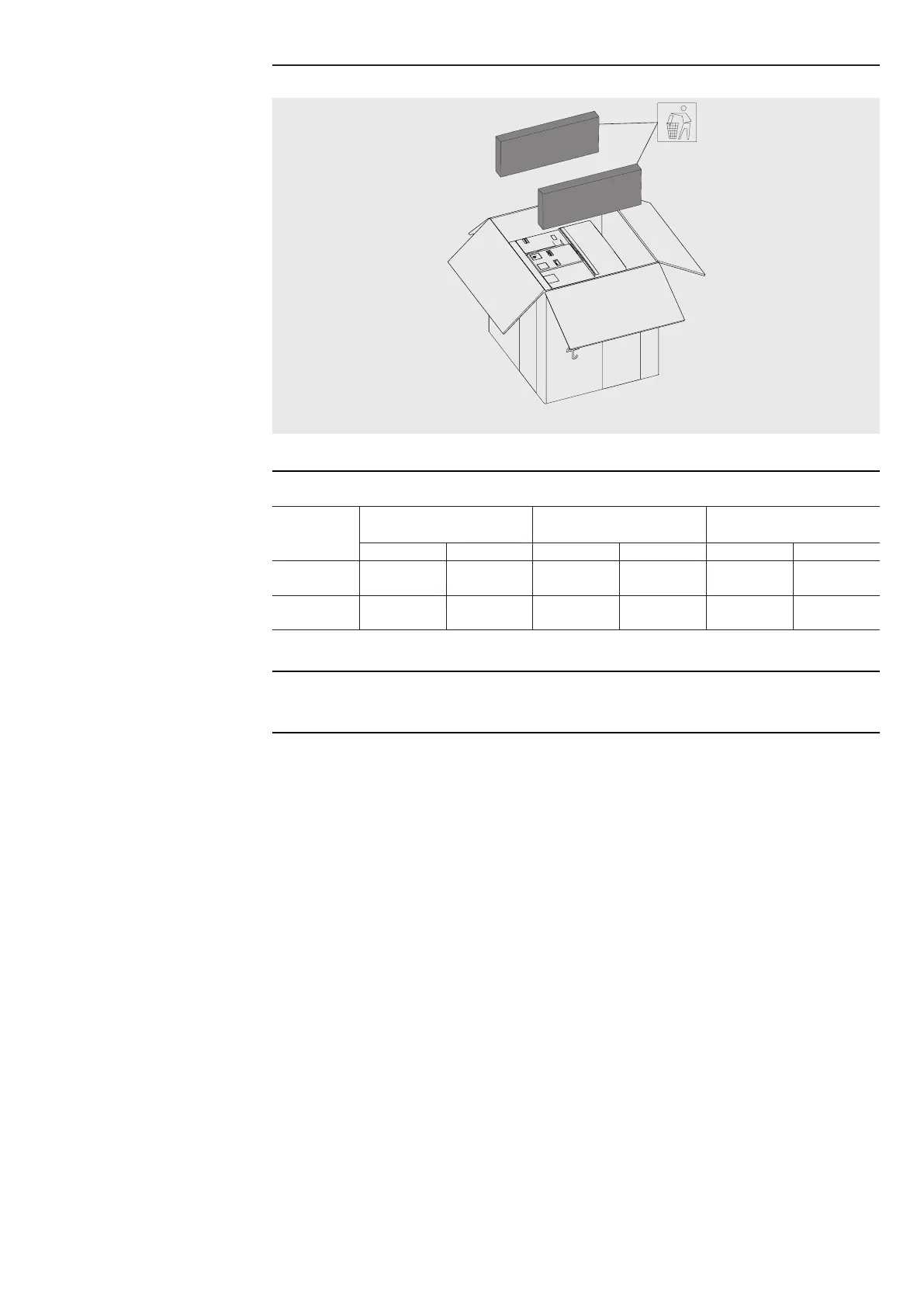

3. Remove the side containment protections from the packing box. See Figure 9.
Figure 9
Weight of circuit-breakers
without packaging
The following table specifies the weights of the circuit-breakers without packaging:
Fixed
Moving part of withdra
-
wable device
Fixed part of withdrawa
-
ble device
III IV III IV III IV
E1.2
14 Kg / 31
lbs
16 Kg / 35
lbs
18 Kg / 40
lbs
20 Kg / 44
lbs
20 Kg / 44
lbs
23 Kg / 51
lbs
E1.2-A
14 Kg / 31
lbs
16 Kg / 35
lbs
20 Kg / 44
lbs
22,5 Kg / 49
lbs
21 Kg / 46
lbs
24 Kg / 52
lbs
Disposal of packing materials
For disposal of the packaging materials see the chapter " 5 - Decommissioning and treatment at end of life
" on page 104.

ABB SACE Emax 2 Specifications

General

Type	Air circuit breaker
Rated Current	800 A to 6300 A
Breaking Capacity	Up to 150 kA at 415 V AC
Frequency	50/60 Hz
Number of Poles	3, 4
Installation	Fixed or withdrawable
Standards	IEC 60947-2
Trip Unit	Ekip Touch, Ekip Hi-Touch
Communication	Modbus, Profibus, Ethernet
