ABB SACE Emax 2 Installation, Operation And Maintenance Instructions

ABB | SACE Emax 2
Electronic accessories | 1 - Ekip Supply modules
61 | © 2014 ABB | 1SDH000999R0002 - L8569
Electronic accessories

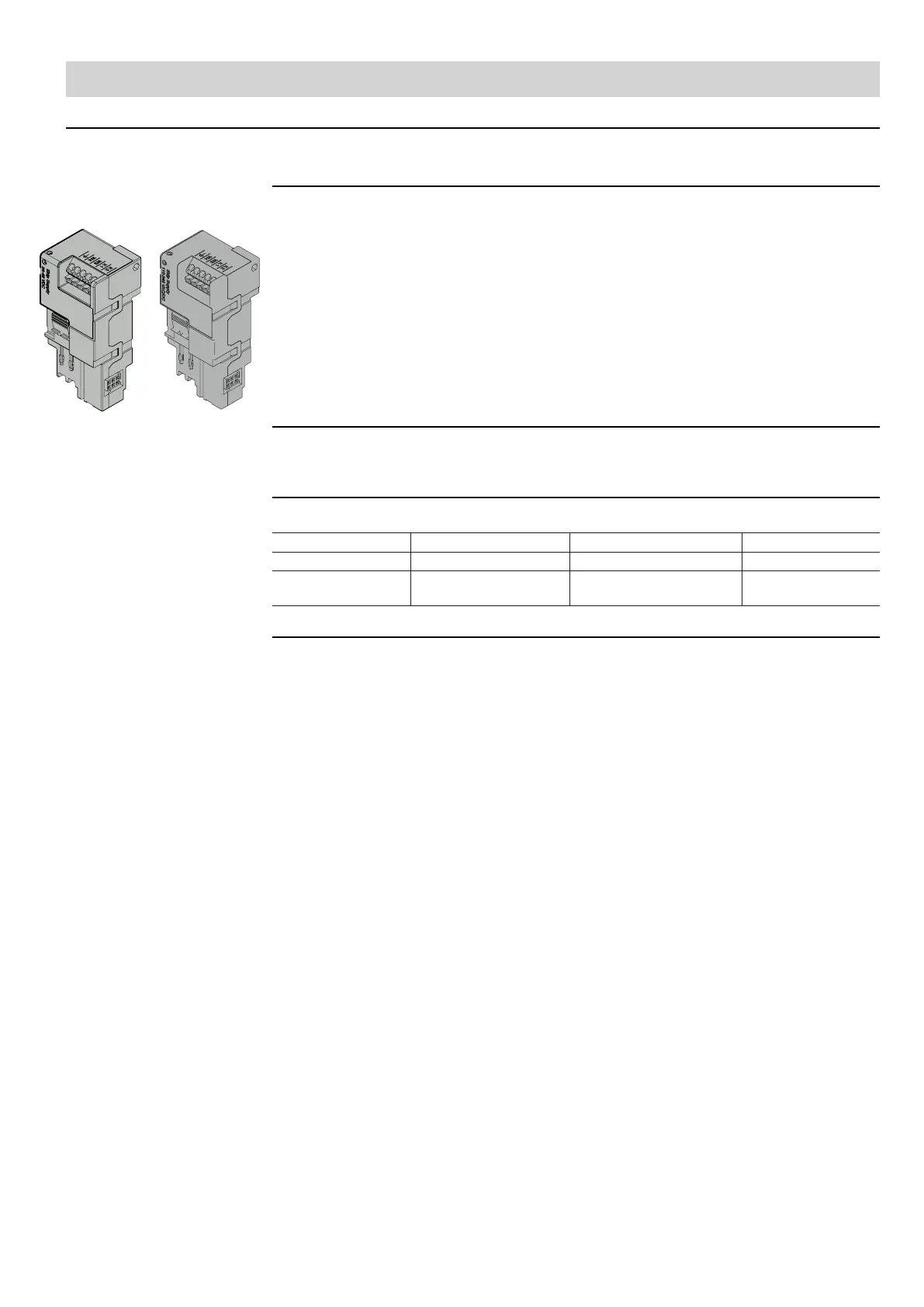

1 - Ekip Supply modules
Description
The Ekip Supply is a power supply accessory module.
There are two types, depending on the input voltages to be supplied:
• Ekip Supply 24-48Vdc.
• Ekip Supply 110-240Vac/dc.
Compatibility
The modules can be installed in the presence of releases of Ekip Dip, Ekip Touch, Ekip Hi‐Touch, Ekip G
Touch, and Ekip G Hi‐Touch releases.
Electrical characteristics
The following table lists the electrical characteristics:
Module Power supply voltages Frequency Power input
Ekip Supply 24-48Vdc. 21.5…53 V DC - Maximum 10W
Ekip Supply
110-240Vac/dc
105…265 V AC/DC 45…66 Hz Maximum 10 VA / W

ABB SACE Emax 2 Specifications

General

Type	Air circuit breaker
Rated Current	800 A to 6300 A
Breaking Capacity	Up to 150 kA at 415 V AC
Frequency	50/60 Hz
Number of Poles	3, 4
Installation	Fixed or withdrawable
Standards	IEC 60947-2
Trip Unit	Ekip Touch, Ekip Hi-Touch
Communication	Modbus, Profibus, Ethernet
