3 - Ekip Com Actuator module
Description
Ekip Com Actuator is an accessory module that allows the SACE Emax 2 circuit-breakers to be opened and
closed remotely.
Connections
Ekip Com Actuator is installed on the front of the circuit-breaker in the accessories area.
Information on the assembly is available from the web site http://www.abb.com/abblibrary/DownloadCenter/,
in particular with the kit sheet 1SDH000999R0501.
Wiring diagrama are provided below for the module:
S43
C13
C13
C13
+
~
SO
~
-
C12
C12
C12
YO
C11
C11
C11
76
XB4 1
XB4 2
K51
YO
K51
7XK7
XK7
8
Ekip Com Actuator
A4
X
XV
X
XV
A1
A4
78
C1
C1
C1
YC
C2
C2
C2
-
~
SC
~
+
C3
C3
C3
S43
XB3 1
XB3
2
K51
YC
K51
9XK7
XK7
10
Ekip Com Actuator
Diagrams 78 - 76
Further information is available on page 58, or on the site http://www.abb.com/abblibrary/DownloadCenter/,
where the wiring diagram is available 1SDM000091R0001.
Compatibility
Ekip Com Actuator module is supplied on request and is compatible with all Ekip releases if there is an Ekip
Com or Ekip Link module present.
4 - Other accessories

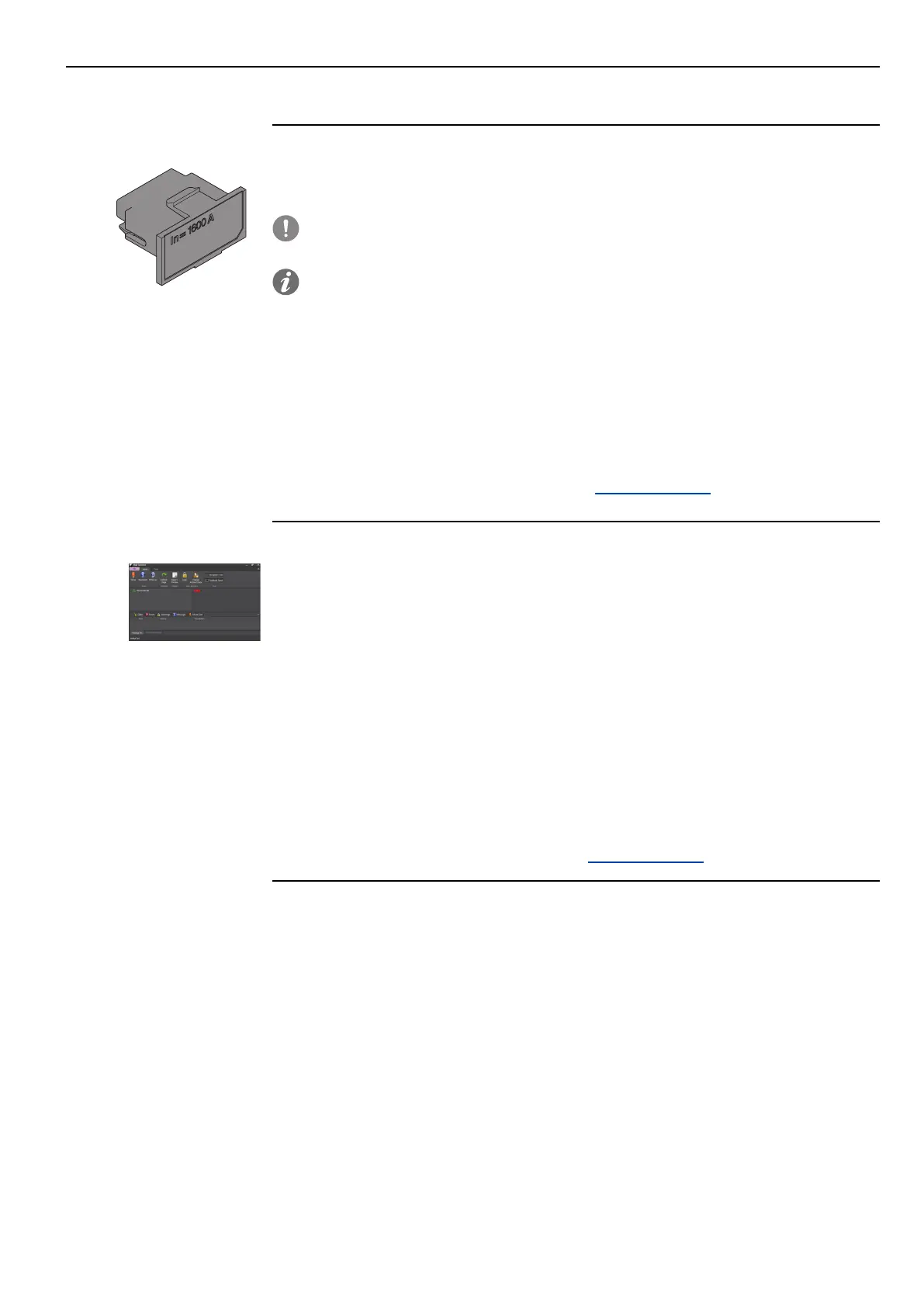

Rating Plug
The Rating Plug defines the rated current In, necessary in order to set the current protections on the release,
where these refer to In.
It is supplied with all Ekip releases, mounted on a front connector dedicated and accessible to the user, and
can be replaced with release off and circuit breaker open.
IMPORTANT: the replacement of the Rating Plug with release on or circuit breaker
closed may cause malfunction of the release, or unwanted opening of the switch.
NOTE: a trip unit can be equipped with any Rating Plug with a rated current of up to Iu, i.e.
the rated uninterrupted current of the circuit-breaker (indicate on the rating plate of the circuit-
breaker).
The release continuously checks for the presence of the Rating Plug, signalling its absence or any errors in
assembly or installation.
Once mounted, when the release is energized, its installation is requested.
On the Touch, Hi-Touch, G Touch and G Hi-Touch releases to activate the residual current protection, it is
necessary to mount a Rating Plug Rc. They are also available Rating Plug L = OFF, which allow you to cancel
the protection L.
Further information on mounting the Rating Plug is available from the web site http://www.abb.com/
abblibrary/DownloadCenter/, in particular in the kit sheet 1SDH001000R0510.
Ekip Connect software
Ekip Connect is the free software for communication and testing of ABB low voltage circuit-breakers equipped
with compatible releases, in particular Ekip releases.
It must be installed on PCs equipped with the Microsoft Windows® operating system by downloading it from
the site http://www.abb.com/abblibrary/DownloadCenter.
With its communication function, it allows you to:
• Monitor the state of the circuit-breakers connected and record information.
• Execute the operation, reset, signalling commands, etc…
• Configure the protection releases with customized parameters.
• Configure the electronic accessories, connected to the release via Local Bus.
• Download information from releases equipped with Datalogger.
• Create communication reports.
• Reset configurations.
With test function, and Ekip T&P module (see page 68), it allows you to:
• Simulate fault conditions by performing manual or automatic tests.
• Perform trip tests.
• Create test reports.
Further information on the Ekip Connect application is available from the web site http://www.abb.com/
abblibrary/DownloadCenter/, in particular in the manual 1SDH000891R0002.
