ABB SACE Emax 2 Installation, Operation And Maintenance Instructions

ABB | SACE Emax 2
Electrical accessories | 1 - Electrical control accessories
75 | © 2014 ABB | 1SDH000999R0002 - L8569

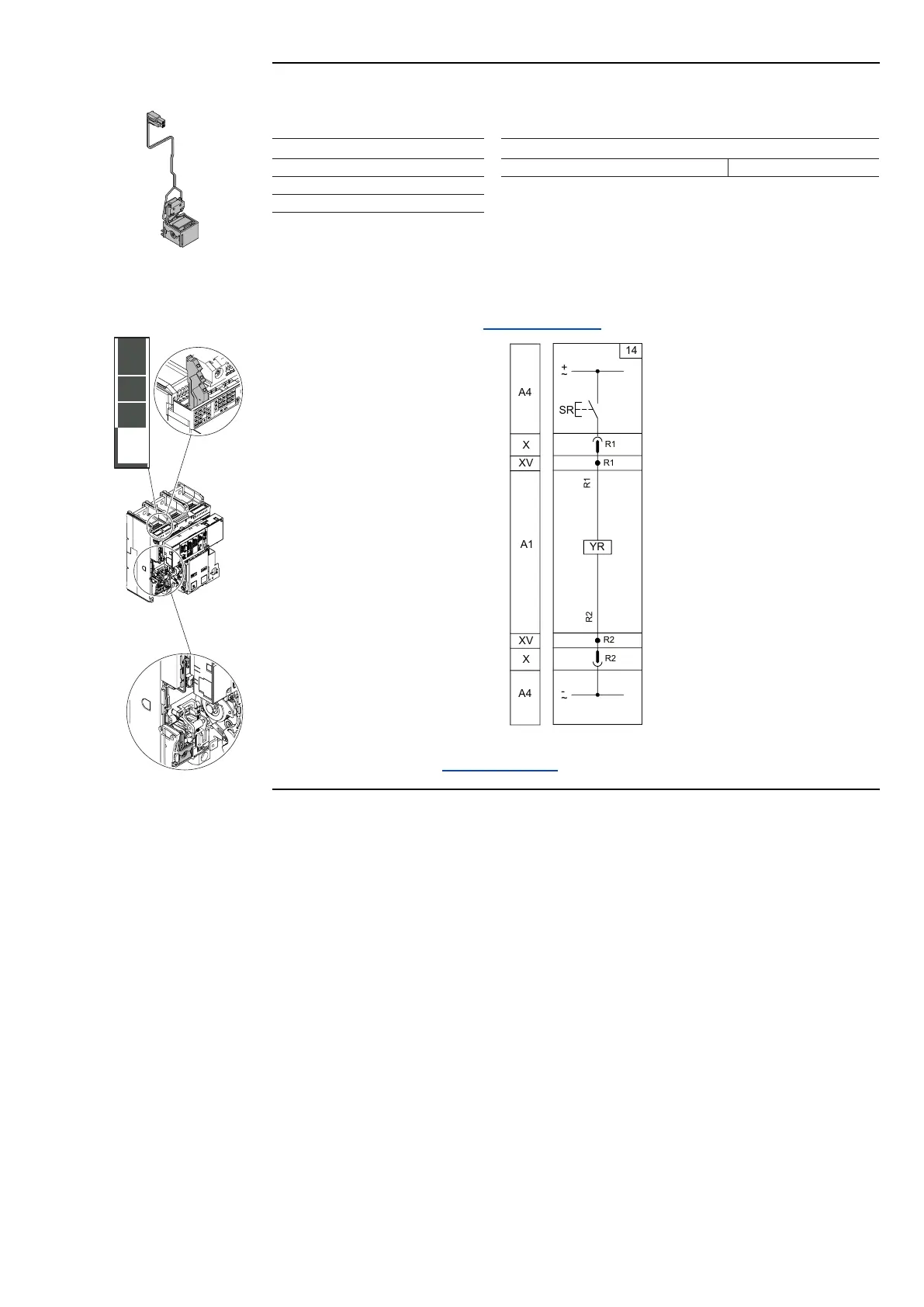

YR: remote resetting coil
R2
R1
YR
The remote resetting coil deactivates the lock at the closing of the circuit-breaker, generated by the opening
of the circuit-breaker caused by tripping of the Ekip protection release.
The tables listing the available voltages and the electrical characteristics are provided below:
Available voltages (Un)
24 V AC/DC
110 V AC/DC
220 V AC/DC
General characteristics
Operating limits 90...110 %Un
YR: Connections
Further information is available on page 58, or on the site http://www.abb.com/abblibrary/DownloadCenter/,
where the wiring diagram is available 1SDM000091R0001.
A4
X
XV
X
XV
A1
A4
+
~
SR
~
-
R2
R2
R2
YR
R1
R1
R1
14
Diagram 14
Information on the assembly is available from the web site http://www.abb.com/abblibrary/DownloadCenter/,
in particular with the kit sheet 1SDH000999R0606.

ABB SACE Emax 2 Specifications

General

Type	Air circuit breaker
Rated Current	800 A to 6300 A
Breaking Capacity	Up to 150 kA at 415 V AC
Frequency	50/60 Hz
Number of Poles	3, 4
Installation	Fixed or withdrawable
Standards	IEC 60947-2
Trip Unit	Ekip Touch, Ekip Hi-Touch
Communication	Modbus, Profibus, Ethernet
