ABB | SACE Emax 2
12 | © 2014 ABB | 1SDH000999R0002 - L8569
Emax E1.2 circuit-breakers | 4 - Description
4 - Description
Description of circuit-breaker
Emax E1.2 circuit-breakers consist of a structure containing the poles, the operating mechanism and the
auxiliary parts. Each pole, enclosed in a plastic box, consists of a breaking structure and a current transformer.
The structure of the breaking part differs between selective circuit-breaker or limiter.
The circuit-breaker is available in two types:
• fixed version
• withdrawable

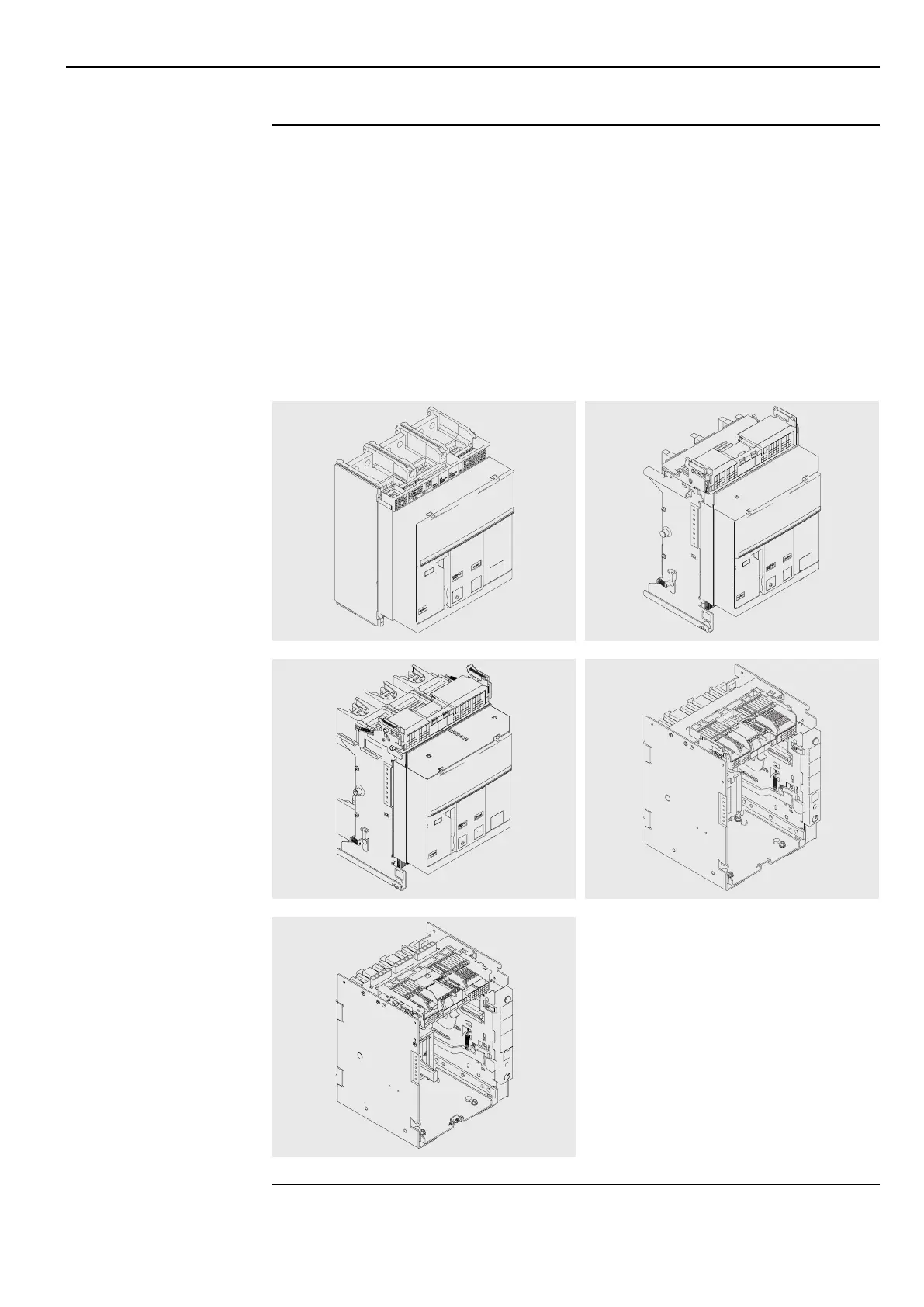

The circuit-breaker in fixed version (see Figure 10) has its own terminals for connection to the power circuit.
The withdrawable circuit breaker consists of a mobile part (see Figure 11 for IEC and Figure 12 for UL) and
of a fixed part (see Figure 13 for IEC and Figure 14 for UL) for connection through its own terminals to the
power circuit.
The coupling between the mobile part and the fixed part is via disconnection contacts mounted on the fixed
part.
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
