ABB SACE Emax 2 Installation, Operation And Maintenance Instructions

ABB | SACE Emax 2
Mechanical accessories | 1 - Mechanical Protection accessories
83 | © 2014 ABB | 1SDH000999R0002 - L8569

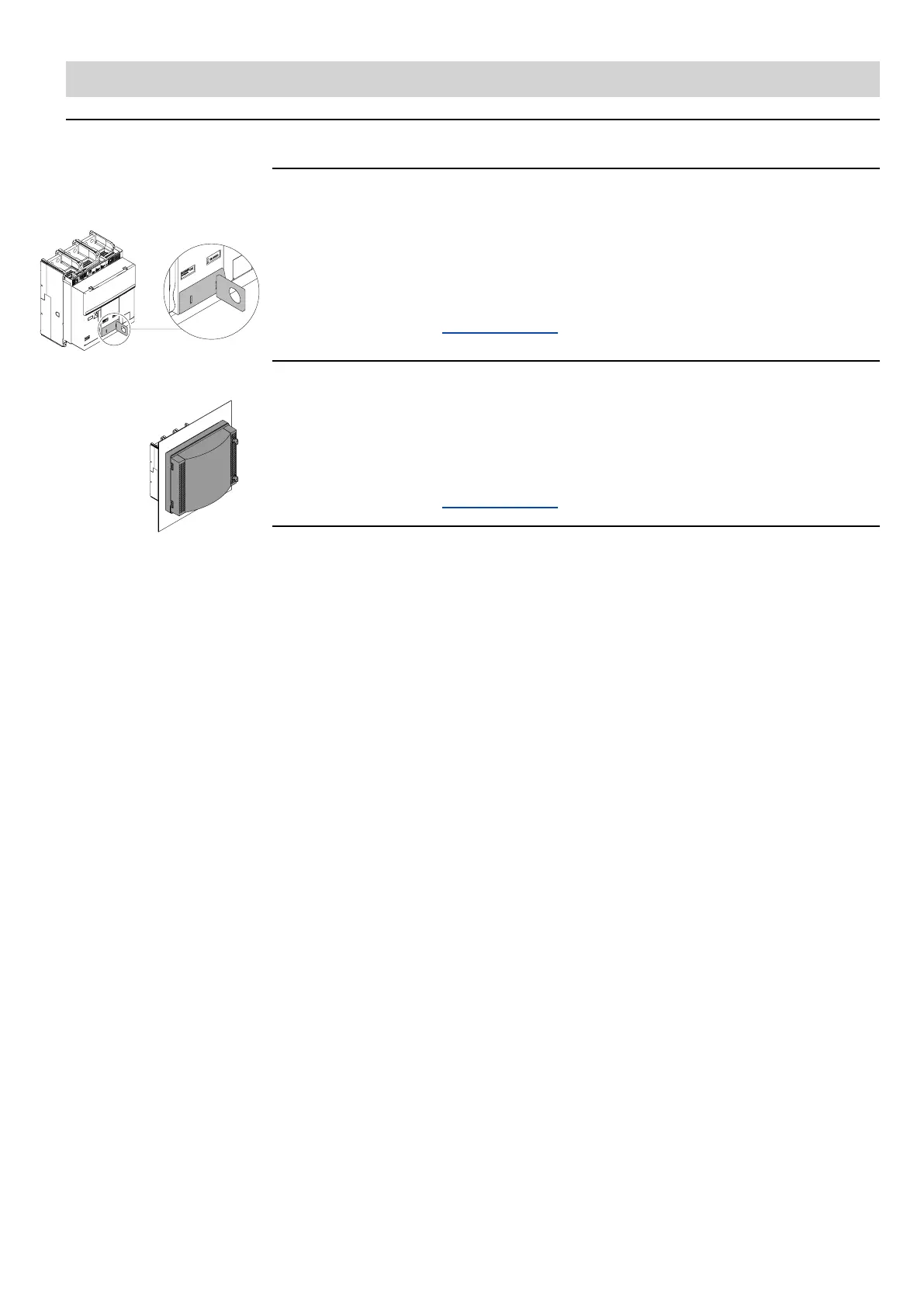

Mechanical accessories
1 - Mechanical Protection accessories
PBC: opening and closing
push-button protection
The push-button protection inhibits the use of the opening and closing push-buttons.
It is available in two types:
• Protection that simultaneously inhibits the use of both push-buttons. The use of the push-buttons is only
allowed with the aid of an appropriate key.
• Padlockable protection that inhibits the use of one or both push-buttons with the aid of a padlock.
Information on the assembly is available from the web site http://www.abb.com/abblibrary/DownloadCenter/,
in particular with the kit sheet 1SDH000999R0715.
IP54 protection
The IP54 protection completely protects the front of the circuit-breaker, to achieve Protection class IP54.
It is always equipped with two locks for closing, available in two types:
• lock with different key code numbers (for an individual circuit-breaker)
• lock with the same key code number (for more than one circuit-breaker)
Information on the assembly is available from the web site http://www.abb.com/abblibrary/DownloadCenter/,
in particular with the kit sheet 1SDH000999R0714.

ABB SACE Emax 2 Specifications

General

Type	Air circuit breaker
Rated Current	800 A to 6300 A
Breaking Capacity	Up to 150 kA at 415 V AC
Frequency	50/60 Hz
Number of Poles	3, 4
Installation	Fixed or withdrawable
Standards	IEC 60947-2
Trip Unit	Ekip Touch, Ekip Hi-Touch
Communication	Modbus, Profibus, Ethernet
