ABB SACE Emax 2 Installation, Operation And Maintenance Instructions

ABB | SACE Emax 2
Introduction to Ekip protection releases | 1 - Presentation
31 | © 2014 ABB | 1SDH000999R0002 - L8569
Introduction to Ekip protection releases
1 - Presentation
Families and functionality
Emax 2 can be configured with five different types of protection release, distinguished by type of interface and
functionality. One release has a dip-switch interface (Ekip Dip) while the others are equipped with a display
touchscreen (Ekip Touch).
Ekip Dip
Ekip Touch
Ekip Hi-Touch
Ekip GTouch
Ekip G Hi-Touch
Ekip Measuring Pro
Ekip Measuring

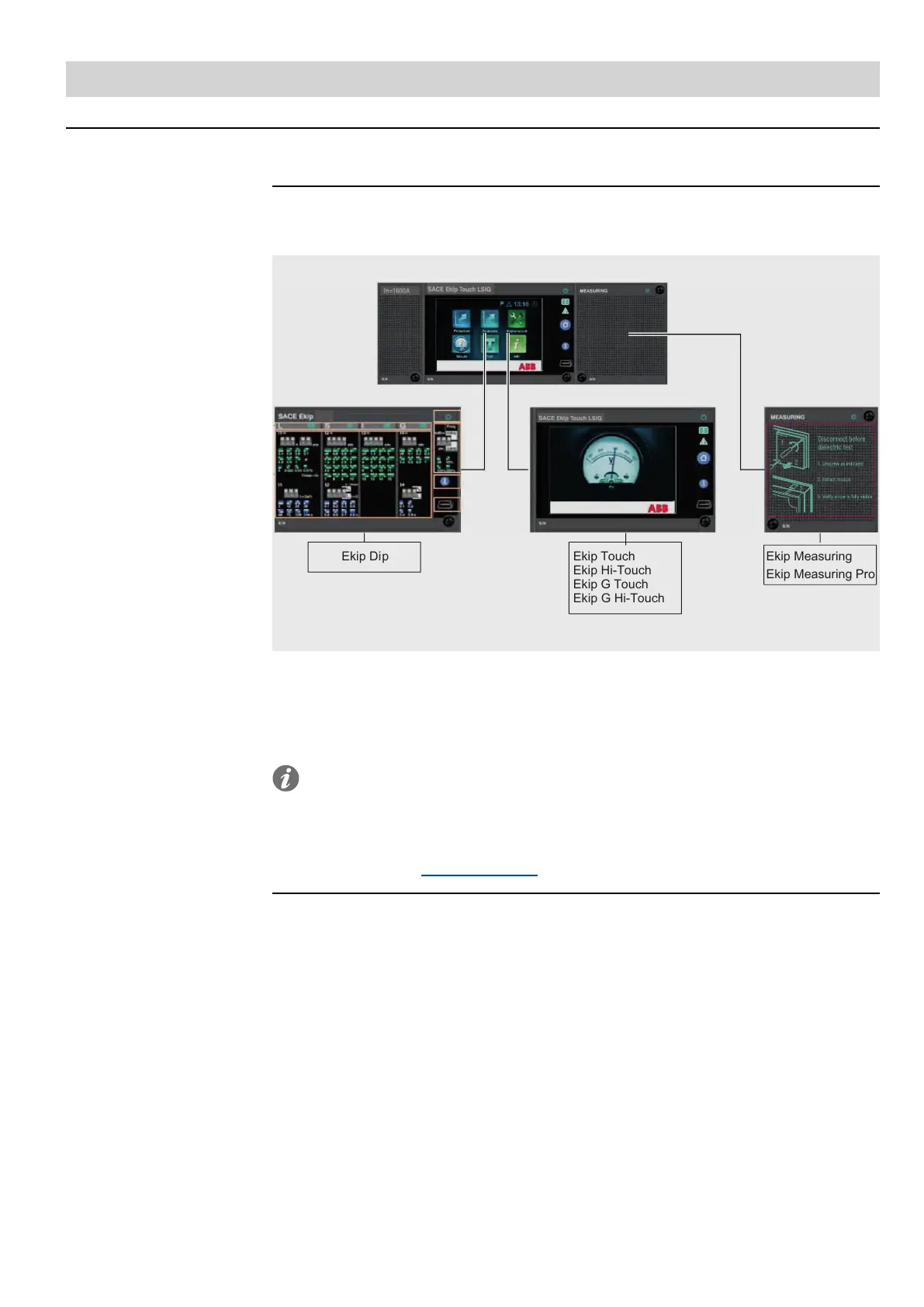

Figure 66
All versions of the releases include protection and measurement functions referring to the primary installation
currents.
The Ekip Touch version can be equipped with the Ekip Measuring module to extend measurement functions
or (with the Ekip Measuring Pro module) protection and measurement functions, to voltages, powers and
energies.
NOTE: the Ekip Hi-Touch, Ekip G Touch and Ekip G Hi-Touch versions have the Ekip Measuring
Pro module mounted as standard.
Ekip Dip is described starting from page 34
Information on Ekip Touch is available from the web site http://www.abb.com/abblibrary/DownloadCenter/,
in particular in the manual 1SDH001316R0002.

ABB SACE Emax 2 Specifications

General

Type	Air circuit breaker
Rated Current	800 A to 6300 A
Breaking Capacity	Up to 150 kA at 415 V AC
Frequency	50/60 Hz
Number of Poles	3, 4
Installation	Fixed or withdrawable
Standards	IEC 60947-2
Trip Unit	Ekip Touch, Ekip Hi-Touch
Communication	Modbus, Profibus, Ethernet
