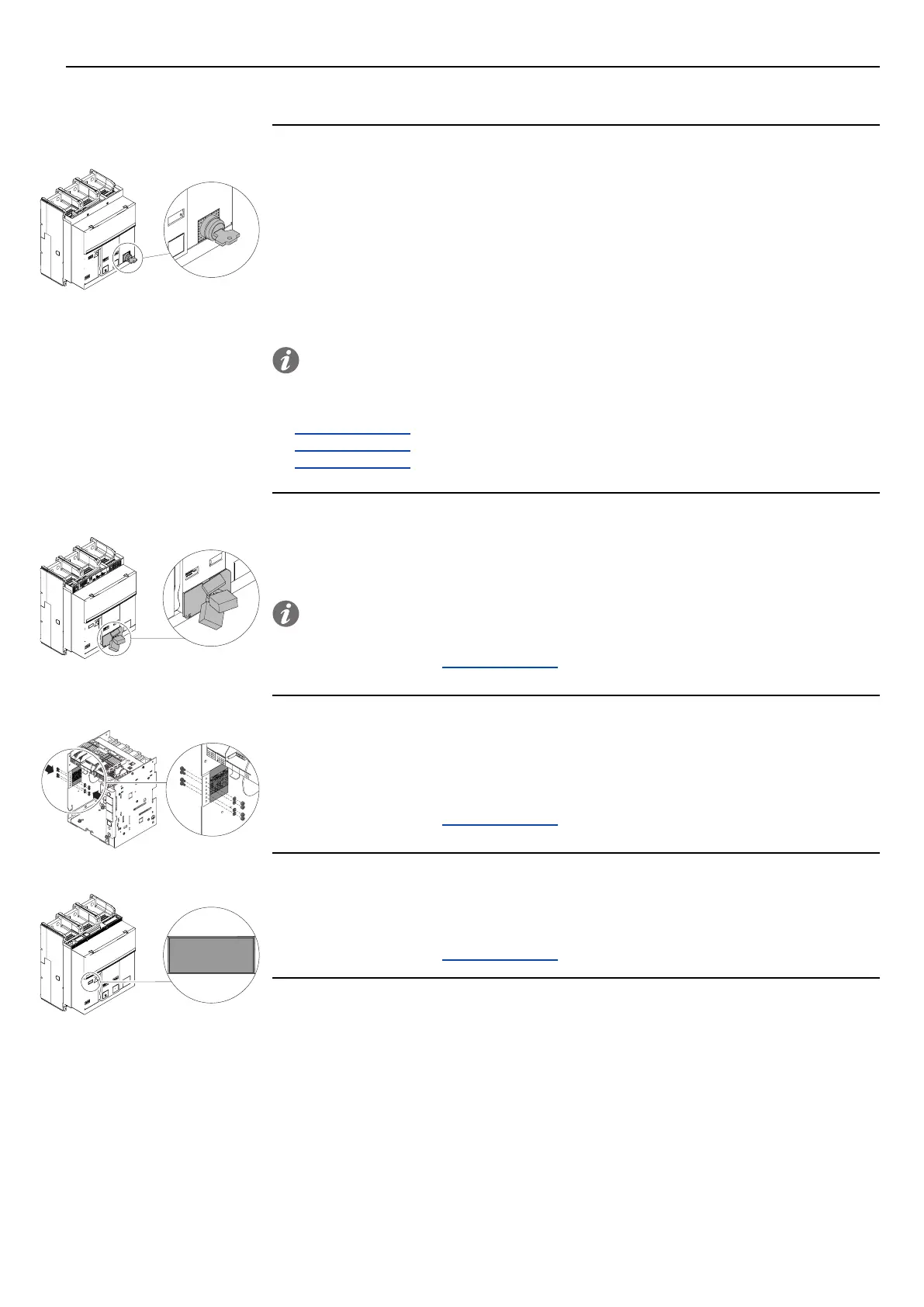

2 - Mechanical safety accessories
KLC: open position key lock
The KLC lock locks the circuit-breaker in the open position.
It can also be used during maintenance activities on the circuit-breaker after removal of the guard accessory.
The KLC lock is available with two types of locking:
• lock with different key code numbers (for an individual circuit-breaker).
• lock with the same key code number (for more than one circuit-breaker). The maximum number of key
code numbers available is five.
If set up appropriately, the KLC-A lock can work with four other types of locks:
• Ronis
• Profalux
• Kirk
• Castell
NOTE: the supply of Ronis - Profalux - Kirk - Castell locks is at customer's expense.
Information on assembly is available at the web site http://www.abb.com/abblibrary/DownloadCenter/, in
particular with the sheets kit:
• 1SDH000999R0702 for key locks with lock supplied by ABB;
• 1SDH000999R0703 for the key locks with pre-engineering for Ronis - Profalux - Kirk locks;
• 1SDH000999R0718 for the key locks with pre-engineering for Castell locks;
PLC: padlock
The PLC padlock locks the circuit-breaker in the open position.
It is available in two types:
• lock usable with a maximum number of three padlocks with a diameter of 4 mm - 0,16"
• lock usable with a maximum number of two padlocks with a diameter of 8 mm - 0,32"
• lock for a padlock with a diameter of 7 mm - 0,28" or for a latch chain
NOTE: The padlocks are at the expense of the customer.
Information on the assembly is available from the web site http://www.abb.com/abblibrary/DownloadCenter/,
in particular with the kit sheet 1SDH000999R0706.
Anti-racking-in lock
E1.2 B-C-N
06
08
10
12
16
06
08
E1.2 L
10
12
02
E1.2 B-C-N
06
08
10
12
16
06
08
E1.2 L
10
12
02
The anti-racking-in lock allows the moving part of the circuit-breaker to be inserted only into the corresponding
fixed part.
It is intended for all withdrawable circuit breakers.
Information on the assembly is available from the web site http://www.abb.com/abblibrary/DownloadCenter/,
in particular with the kit sheet 1SDH000999R0701.
MOC: Operation counter
00001
The mechanical operation counter displays the number of mechanical operations performed by the circuit-
breaker.
Information on the assembly is available from the web site http://www.abb.com/abblibrary/DownloadCenter/,
in particular with the kit sheet 1SDH000999R0710.
