ABB SACE Emax 2 Installation, Operation And Maintenance Instructions

ABB | SACE Emax 2
46 | © 2014 ABB | 1SDH000999R0002 - L8569
Ekip Dip protection release | 5 - List of alarms and signals
5 - List of alarms and signals
LED view
The Ekip Dip release continuously monitors its own operating status and that of all the devices to which it is
connected. All the signals are available with the front LEDs.
The protection LEDs provide information with various combinations of lighting and flashing, while the Power
LED, as described on page 35, indicates the power status of the release.

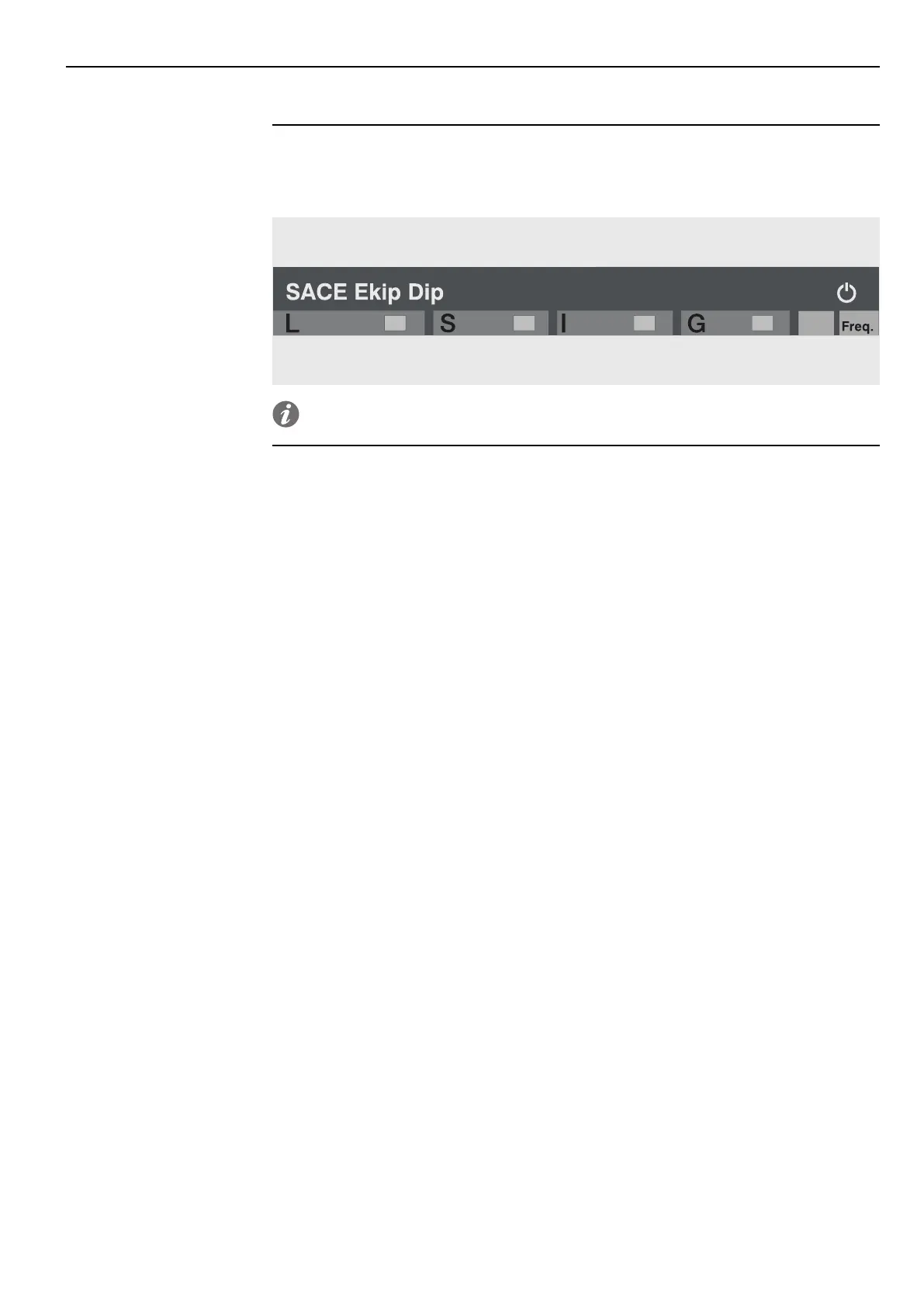

Figure 68
NOTE: the number of leds present depends on the version of the release (LI, LSI, LSIG).

ABB SACE Emax 2 Specifications

General

Type	Air circuit breaker
Rated Current	800 A to 6300 A
Breaking Capacity	Up to 150 kA at 415 V AC
Frequency	50/60 Hz
Number of Poles	3, 4
Installation	Fixed or withdrawable
Standards	IEC 60947-2
Trip Unit	Ekip Touch, Ekip Hi-Touch
Communication	Modbus, Profibus, Ethernet
