Preface
MicroLogix 1000 Programmable Controllers User Manual
11–6
Bit Shift Right (BSR)
When the rung goes from false-to-true, the controller sets the enable bit (EN bit 15)
and the data block is shifted to the right (to a lower bit number) one bit position. The
specified bit at the bit address is shifted into the last bit position. The first bit is
shifted out of the array and stored in the unload bit (UL bit 10). The shift is
completed immediately.
For wraparound operation, set the bit address to the first bit of the array or to the UL
bit.
Operation

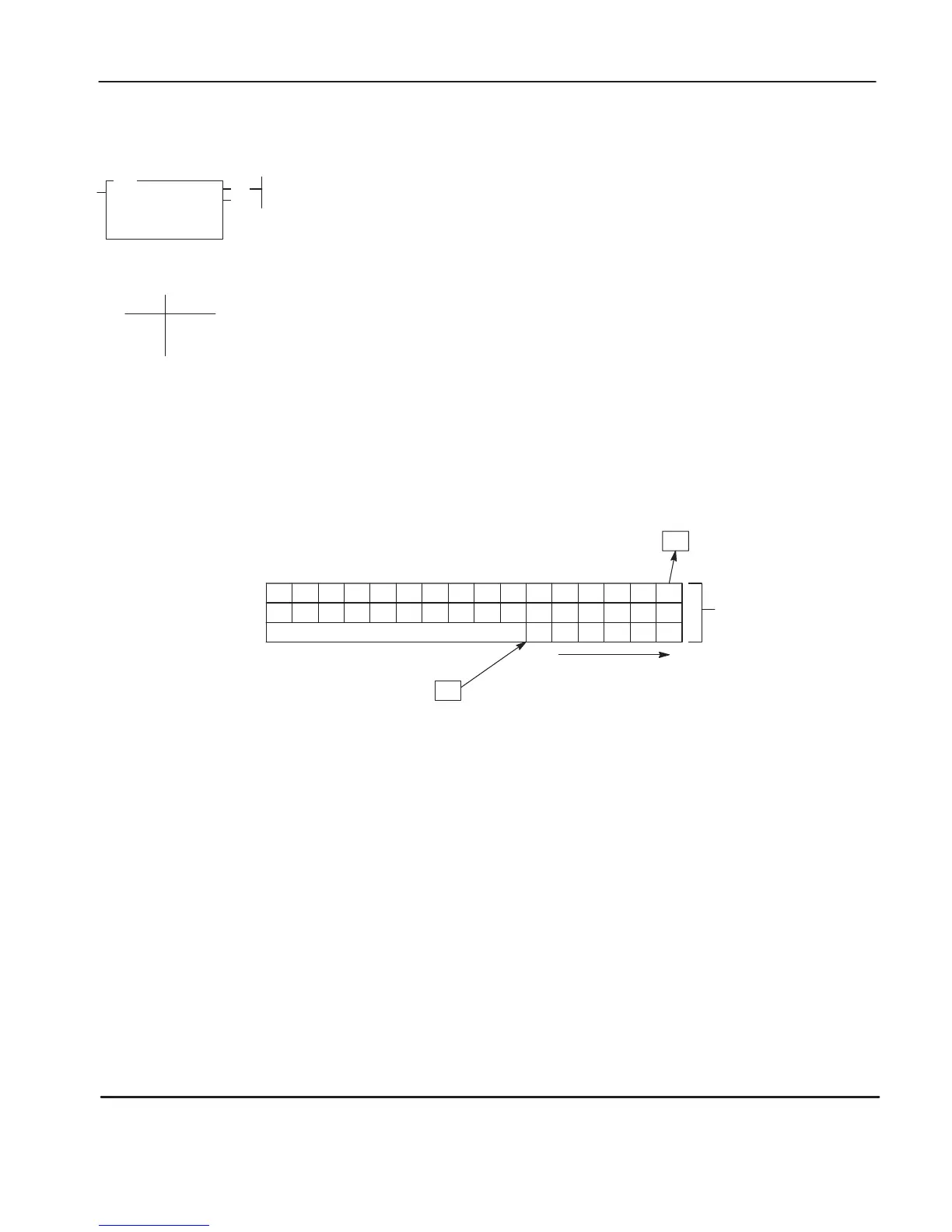

The following figure shows the operation of the BSR instruction shown above.
35 34 33
51 50 49 48
67 66 65 64
3239 38 37
55 54 53 52
69 68
3643 42 41
59 58 57 56
4047 46 45
63 62 61 60
44
RESERVED
38 Bit Array
#B3:2
Source Bit
I:0/06
Unload Bit
(R6:04/10)
Data block is shifted one bit at a
time from bit B3/69 to bit B3/32.
If you wish to shift more than one bit per scan, you must create a loop in your
application using the JMP
, LBL, and CTU instructions.
53.34+
3.98/word
Execution Times
(µsec) when:
False
True
19.80
(DN)
BSR
BIT SHIFT RIGHT
File
Control
Bit Address
Length
(EN)
