Wiring Y our Controller
2–23

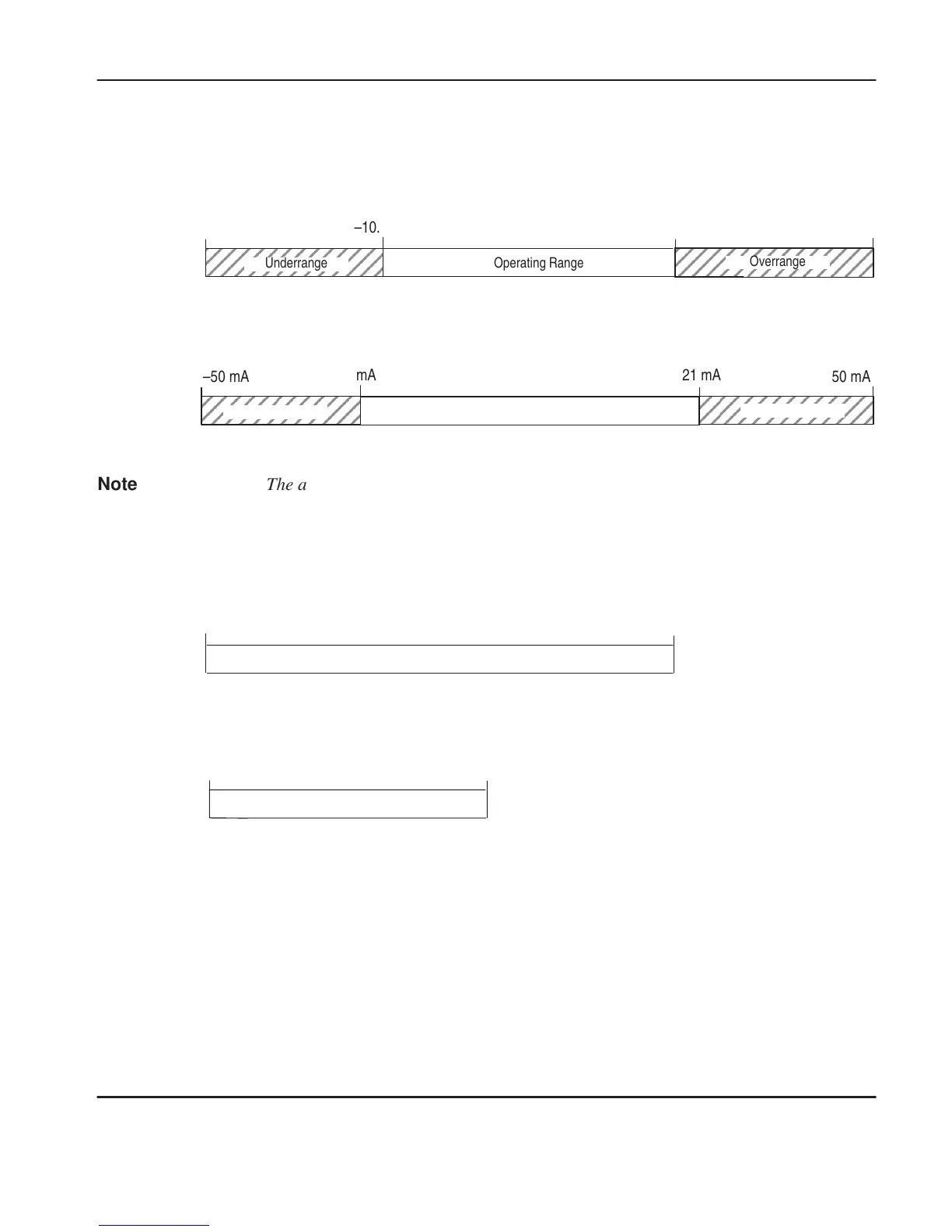

Analog V oltage and Current Input and Output Ranges
Analog Voltage Input Range
ÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉ
Operating Range
Overrange
Underrange
–10.5V dc 10.5V dc
–24V dc
24V dc
Analog Current Input Range
ÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉ
Operating Range
Overrange
Underrange
–21 mA 21 mA
–50 mA 50 mA
Note The analog voltage inputs ar e pr otected to withstand the application of 24V dc
without damage to the contr oller . The analog curr ent inputs ar e pr otected to
withstand the application of 50 mA without damage.
Analog Voltage Output Range
Operating Range
0V dc 10V dc
Analog Current Output Range
Operating Range
20 mA
4 mA
Note The analog outputs ar e pr otected to withstand the short cir cuiting of the voltage or
curr ent outputs without damage to the contr oller.
For information on analog signal and data word values using the nominal
transfer function formula, see page 5–5.
