Communicating with Devices on an Ethernet Network 11-3

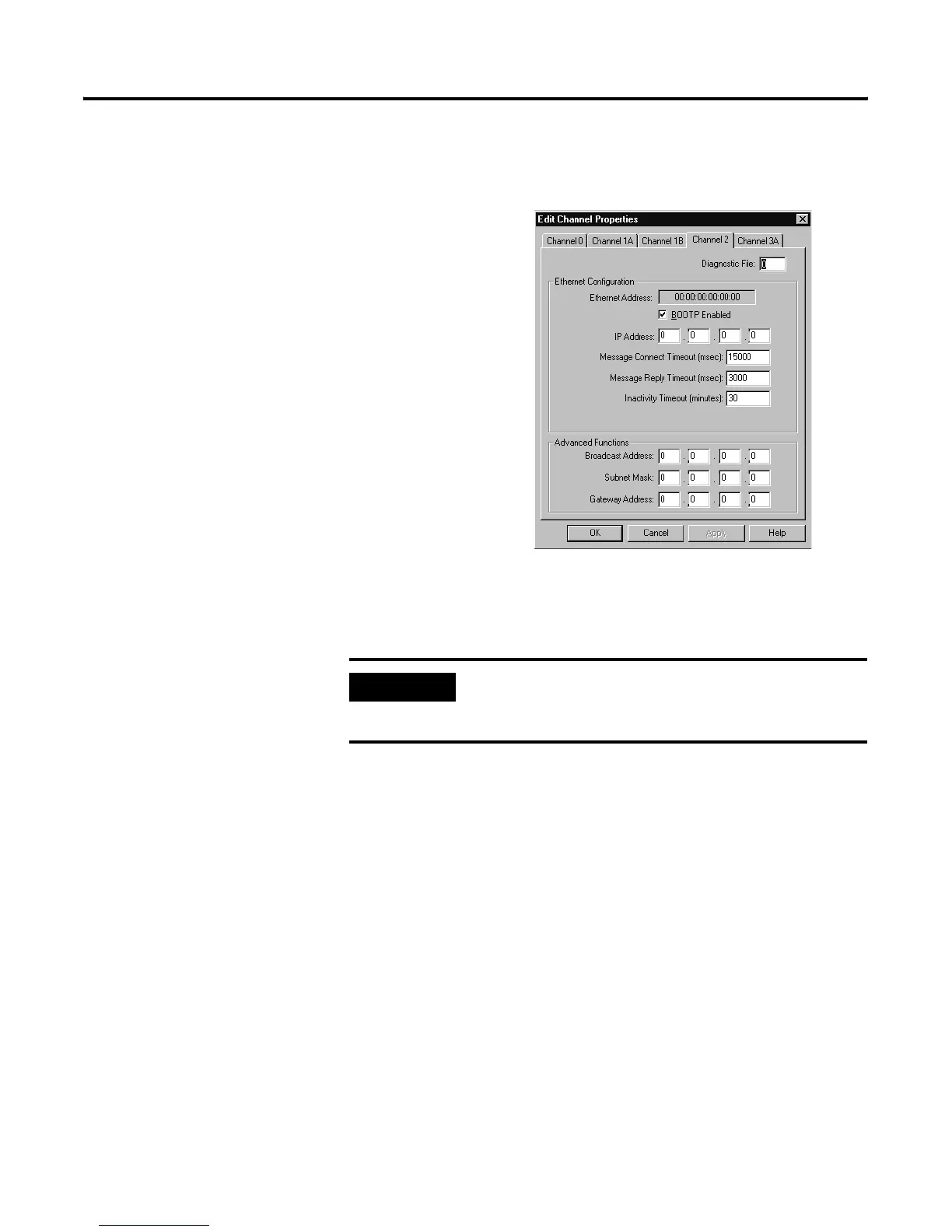

You can manually configure channel 2 for Ethernet communication using your

programming software over a DH+ or serial link

Enter the IP address and toggle the BOOTP enable field to

No. Enter further

configuration information in the appropriate fields. See the following table on

the next page.

IMPORTANT

BOOTP enabled is the factory default. You cannot

manually change the IP address with your programming

software if BOOTP is enabled
