11-36 Communicating with Devices on an Ethernet Network

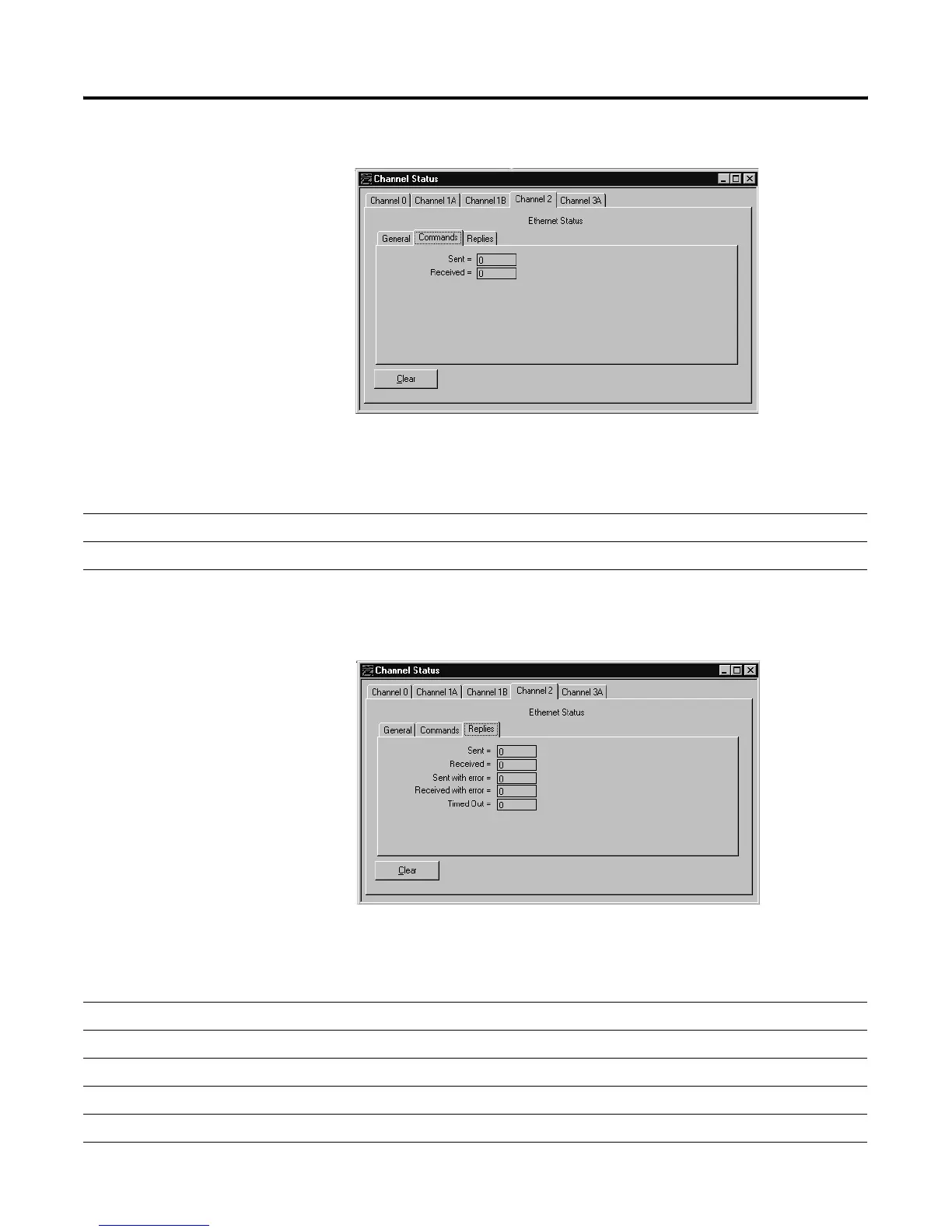

Monitoring Ethernet commands

Monitoring Ethernet replies

Status Field Bytes Displays the Number of

Sent 0-3 Commands sent by the channel

Received 4-7 Commands received by the channel

Status Field Bytes Displays the Number of

Sent 8-11 Replies sent by the channel

Received 12-15 Replies received by the channel

Sent with error 16-19 Replies containing errors sent by the channel

Received with error 20-23 Replies containing errors received by the channel

Timed out 24-27 Replies not received within the specified timeout period
