122 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019

Chapter 5 Configure Integrated Motion Using a PowerFlex 755 Drive

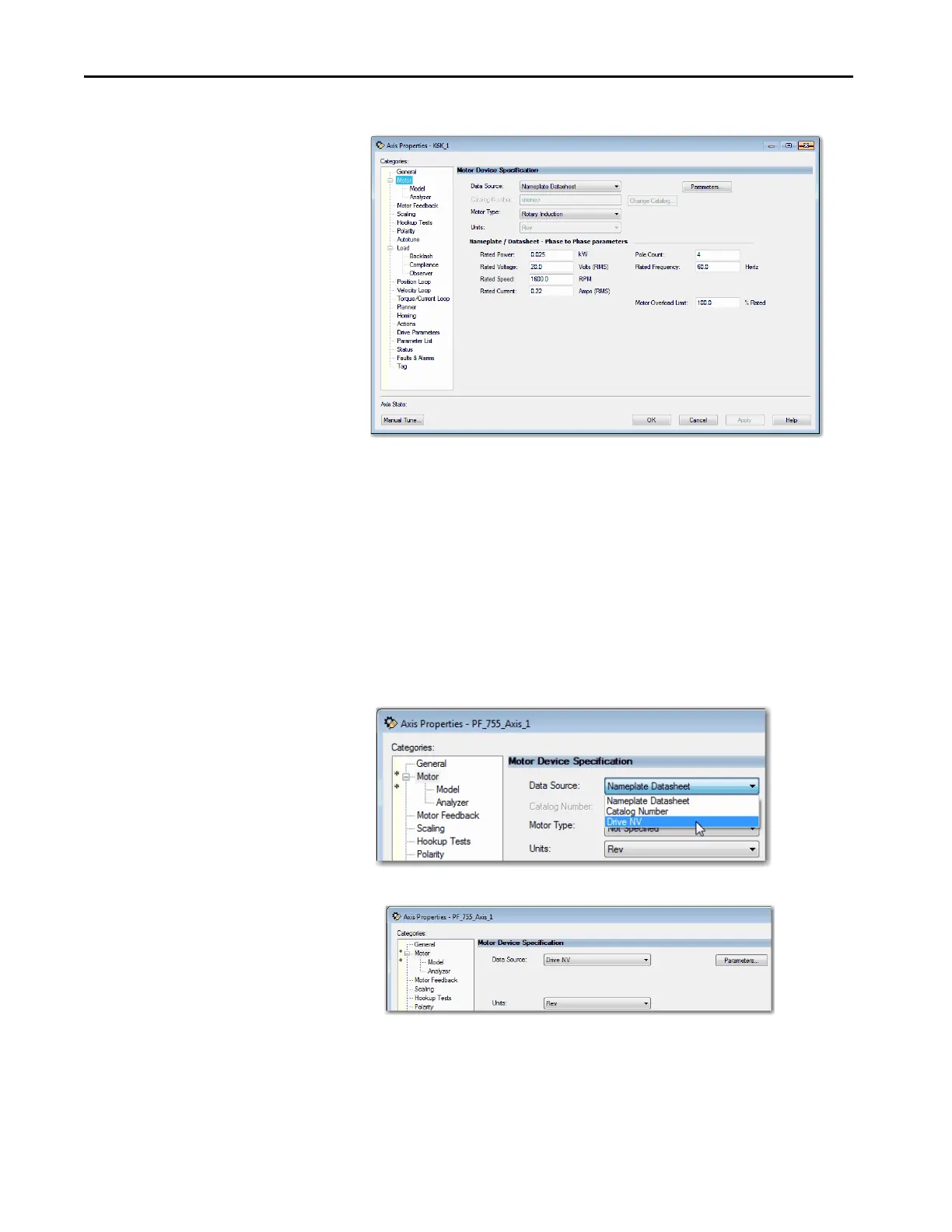

3. Enter the parameter information from the motor Nameplate data sheet.

4. Click Apply.

Choose Drive NV as the Motor Data Source

When you choose Drive NV, the motor attributes are derived from the

nonvolatile memory of a drive. Only a minimal set of motor and motor

feedback (Feedback 1) attributes are required to configure the drive.

Follow these instructions to choose a data source.

1. From the Data Source pull-down menu, choose Drive NV.

2. From the Units pull-down menu, choose Revolutions or Meters.
