Chapter 9 Axis Configuration Examples for the PowerFlex 755 Drive
Example 3: Velocity Loop
with Motor Feedback Via a
UFB Feedback Device
This example describes how to create two AXIS_CIP_DRIVE axes that are
associated to a PowerFlex 755 drive with dual motor feedback via a universal
feedback device, catalog number 20-750-UFB-1.
1. Once you have created an AXIS_CIP_DRIVE, open the Axis
Properties.
2. Connect the Feedback Port 1 with one feedback cable that is connected
to the PowerFlex 755 drive.
3. From the Axis Configuration pull-down menu, choose Velocity Loop.
4. From the Feedback Configuration pull-down menu, choose Motor
Feedback.

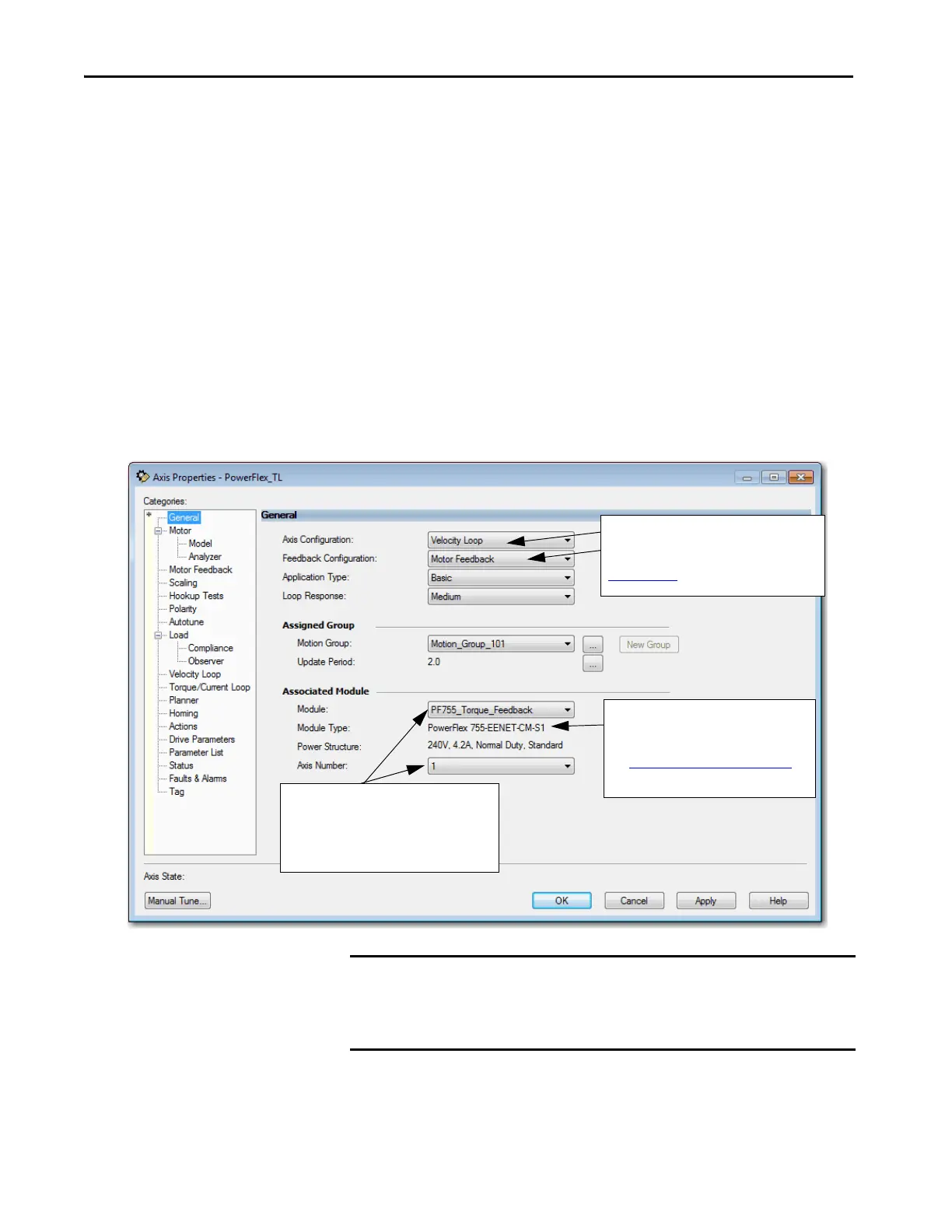

Figure 66 - Example 3: Velocity Loop with Motor Feedback, General Dialog Box
Now that you defined the axis as a Velocity Loop with Motor Feedback,
the Motor and Motor Feedback dialog boxes become available.
TIP Remember that you already assigned the feedback device when you
added the drive to your project.
Displays the type of drive you selected and
power structure you assigned via the
PowerFlex 755 drive Module Properties.
See Add a PowerFlex 755 Drive on page 99
.
The newly created PowerFlex 755 drive module
name is the default. The Axis Number defaults to
1, indicating the primary axis of the drive. Axis
Number 2 is used only for configuring a Feedback
Only axis.
The selections determine the Control Mode.
See the Integrated Motion on the EtherNet/IP
Network Reference Manual, publication,
MOTION-RM003
.
IMPORTANT After you have configured the axis and you change the Axis Configuration
type or the Axis Number, some of the configuration information is set to
default values. This change can cause some previously entered data to be
reset back to its default setting.
To Next Page
