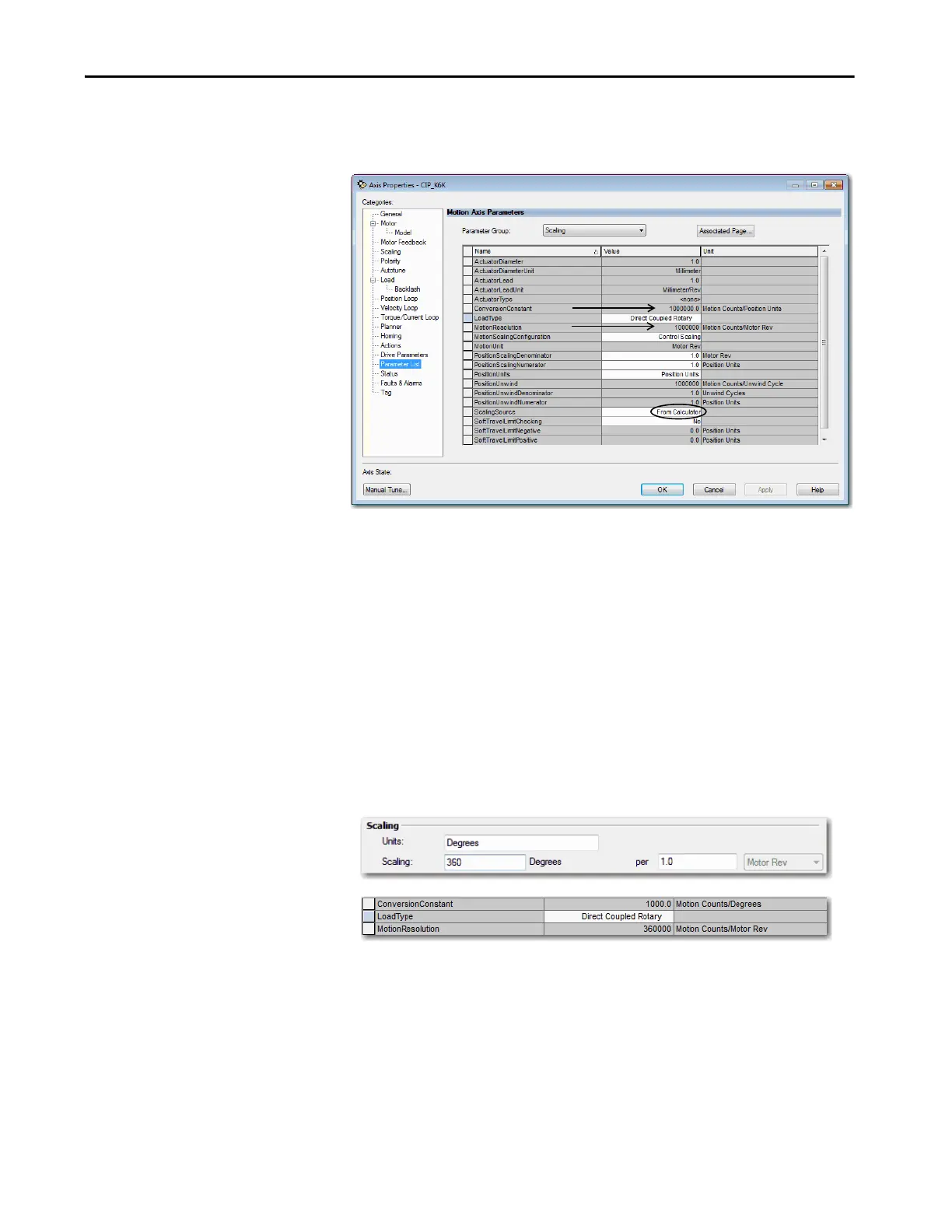

When you click Parameters, you see values for the Conversion Constant and
the Motion Resolution, each having a value of 1 million. These values are
generated from the software calculator.
In most cases, the software scaling calculator generates Scaling Factor values
that are suitable for the application. But in rare cases, like applications that
require online product recipe changes, you can set the Scaling Source attribute
to Direct Scaling Factor Entry. This attribute allows you to enter the Scaling
Factors.
Direct Coupled Rotary
For a Direct Coupled Rotary load type, you can express Scaling Units for the
rotary motor, for example, Degrees.
Here is an example of Direct Coupled Rotary load that is scaled in Degrees and
the resulting values for the Conversion Constant and Motion Resolution.
