Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 313

Out of Box Configuration for PowerFlex Drives Appendix B

Profile Operand

This operand has two profile types:

• Trapezoidal Velocity Profile

• S-curve Velocity Profile

Trapezoidal Velocity Profile

The trapezoidal velocity profile is the most commonly used profile because it

provides the most flexibility in programming subsequent motion and the

fastest acceleration and deceleration times. Acceleration and deceleration

specify the change in velocity per unit time. Jerk is not a factor for trapezoidal

profiles. Therefore, it is considered infinite and is shown as a vertical line in the

following graph.

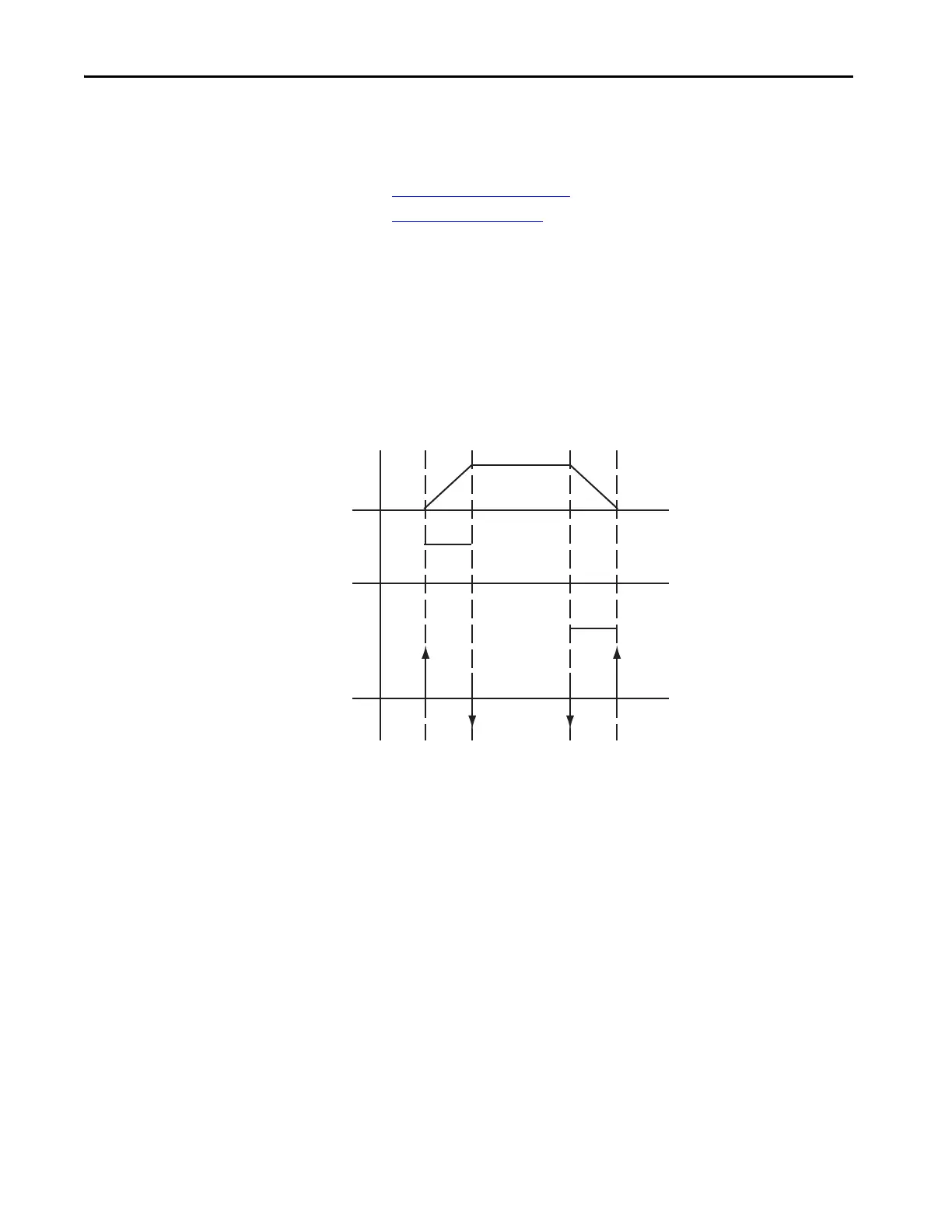

VelocityAccelJerk

Time

Trapezoidal Accel/Decel Time

Default Chapter3
