Initial Configuration
19
NX-Series Controllers - WebConsole & Programming Guide
Initial Configuration
Overview
This section describes using the NetLinx Studio software application to perform the initial configuration of the NetLinx Master.
NetLinx Studio is used to setup a System number, obtain/assign the IP/URL for the NX controller, as described in this section (as
well as to transfer firmware Kit files to the Master - see the Upgrading Firmware section on page 28).
Before You Start
1. Verify you have the latest version of the NetLinx Studio application version 4.0 installed on your PC.
NetLinx Studio is available to download from www.amx.com. Login to download the latest version. Alternatively, if it is already
installed, use the Web Update option in NetLinx Studio’s Help menu to obtain the latest version.
The default location for the NetLinx Studio application is Start > Programs > AMX Control Disc > NetLinx Studio > NetLinx
Studio.
2. Verify that a LAN cable is connected from the Master to the LAN Hub.
3. Connect a programming cable (Type-B USB) from the Program Port on the Master to a USB port on the PC being used for
programming.
4. Apply power to the Master.
Preparing the Master for USB Communication
To establish USB communication with the Master via the PROGRAM port with Type-B-to-Type-A cable:
1. Launch NetLinx Studio and select Settings > Workspace Communication Settings (FIG. 3):
2. This opens the Workspace Communication Settings dialog (FIG. 4).

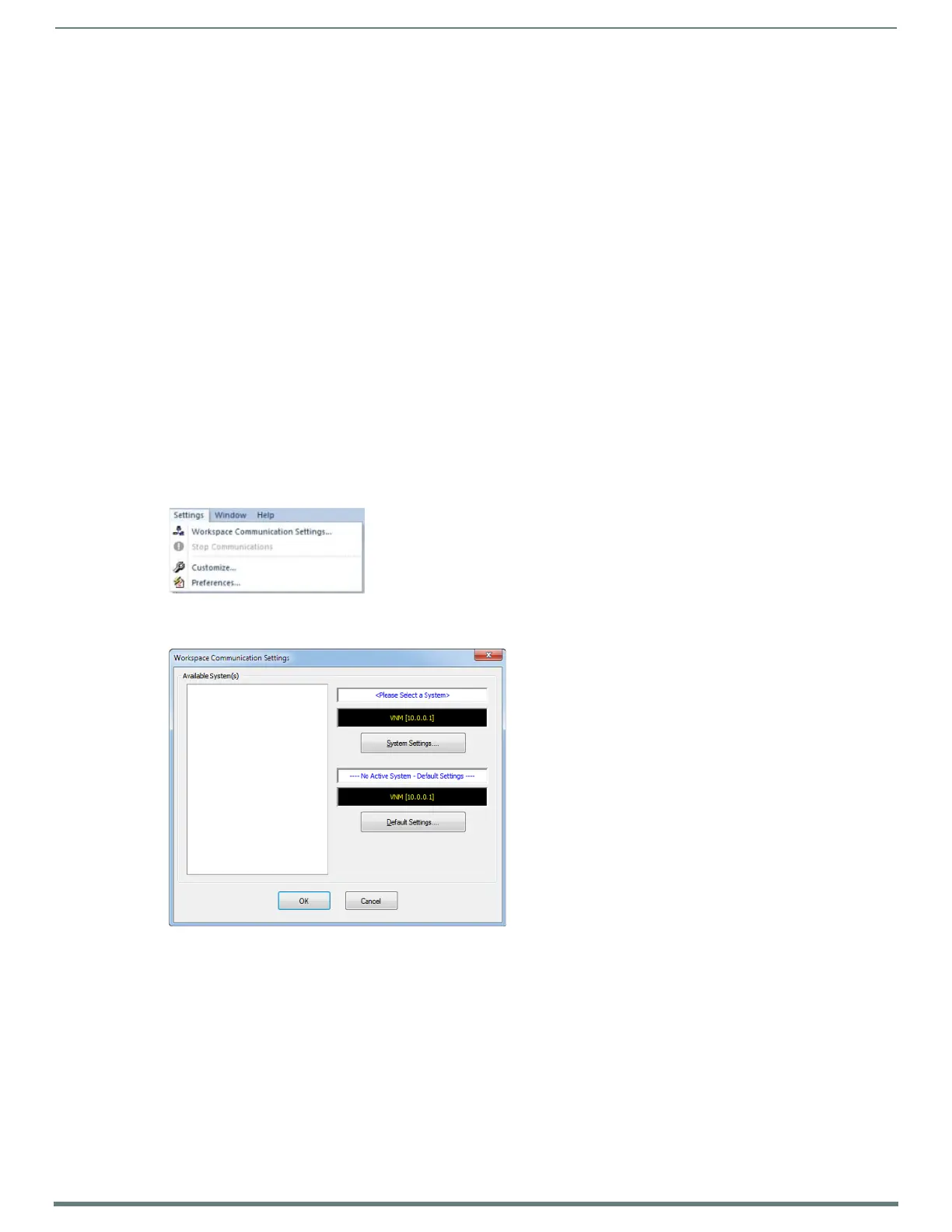

FIG. 3
NetLinx Studio menu bar - Settings > Workspace Communication Settings
FIG. 4 Workspace Communication Settings dialog
