WebConsole - Switching Options
70
NX-Series Controllers - WebConsole & Programming Guide
Conf iguring/Switching the Downmix Signal
When the system contains Audio Switching Boards, one embedded audio signal** can be downmixed and routed at any given time.
** Signal must be Dolby, TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, or 2 CH through 8 CH L-PCM.
When Audio Switch Mode is selected, the “Downmix” input automatically displays as the last analog audio input+1. The Downmix
Input number for each of the Enova 100 Series models is shown in the following table.
NOTE: The table above also applies to Enova 8/16/32/64 enclosures that have been upgraded with an Enova DGX 100 Series CPU
and that contain Audio Switching Boards.
From the Configuration page – to designate which source will be routed on the Downmix Input, click the Downmix button in the
Switching pane on the left and then select the input from the Downmix Source drop-down list in the Configuration pane on the
right.
Designating an Input for Downmixing (from Conf iguration page)
1. In the Switching pane on the left, select Audio Switch Mode.
The Downmix button displays at the end of the input buttons.
2. Select the Downmix button.
3. In the Configuration pane on the right, select the input from the Downmix Source drop-down list.
The Downmix signal is ready to apply any of the configuration options or to execute switches.
4. To use a different input source for downmixing, repeat Steps 1-3 (only one input can be downmixed at a time).
Downmix Input #
Enova DGX 800 17
Enova DGX 1600 25
Enova DGX 3200 41
Enova DGX 6400 81

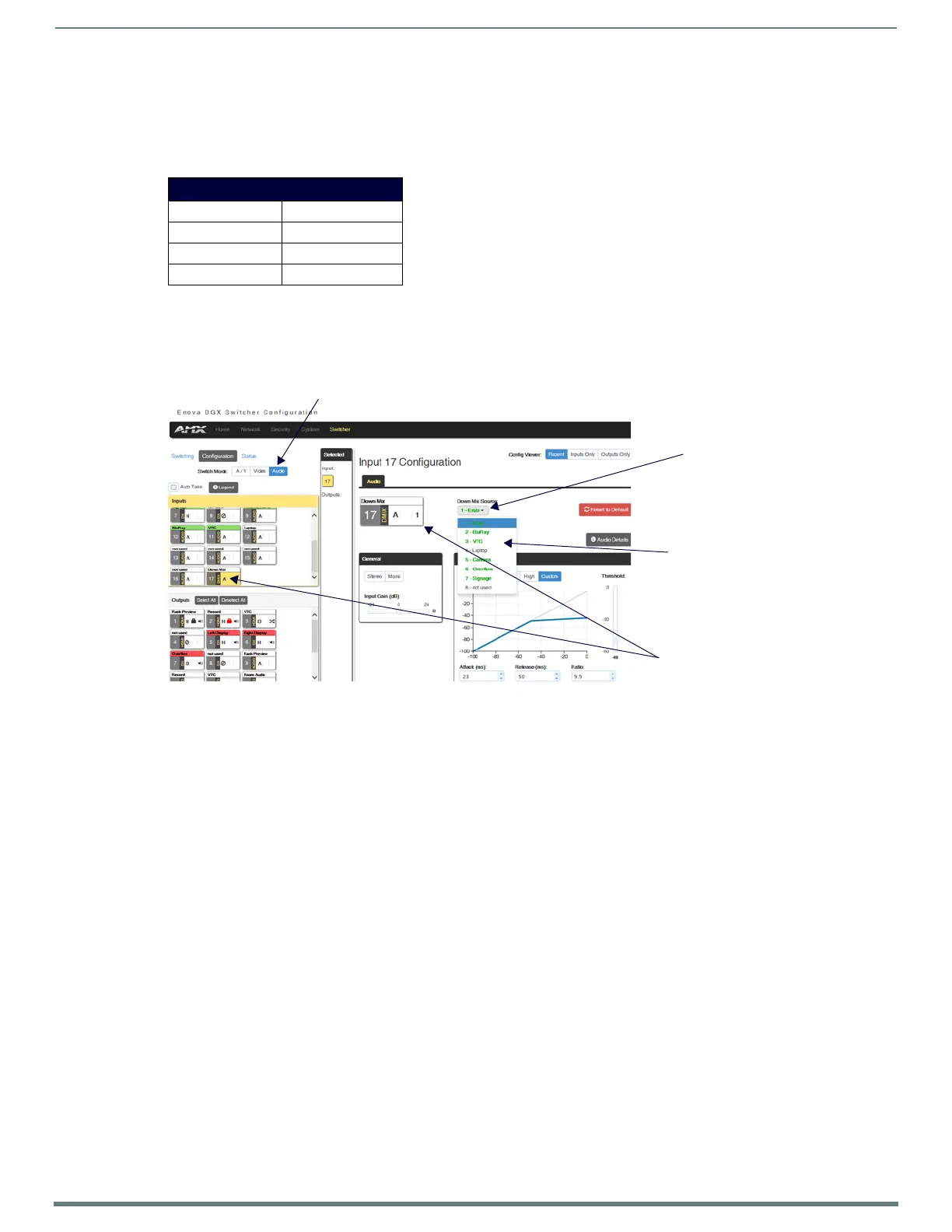

FIG. 58 Downmix input ready to switch or configure
Switch Mode must be set to Audio
Drop-down list displays
inputs available for
downmixing
Downmix Source
routes the selected
input (Input 1 in the
example)
Downmix Input button
To Next Page
