Operation Control-By-Event Operation
112 IQ-301 PN 50036:F 10/29/2001
4.3.8 How the Control Panel Indicates a Panel Circuit Trouble
•The
SYSTEM
TROUBLE
LED flashes
• Trouble relay turns on
• A message is sent to the LCD display, History buffer, and installed printers,
terminal mode LCD-80s, and CRT-2s
•A
TROUBL
status banner and a B
ELL
C
IRCUIT
Type Code is displayed on the LCD
display, along with information specific to the device, as shown in Figure 107.
Figure 107 Sample Display of a Panel Circuit in Trouble
4.4 Control-By-Event Operation
Control-by-event (CBE) is done through 99 software zones. Each system point
(detector, control module, monitor module, relay module, or NAC) may list up to five
zones in its program information. A general alarm zone (Z00) may be listed for output
(control) points, but is not necessary to list for input points. Z00 is not activated by
non-alarm or supervisory points.
If any input device (detector or monitor module) becomes active and it is not disabled,
it activates all software zones in its list. An output device (control or relay module, or
NAC) that is not disabled is turned on if any of the software zones in its list are active.
This is basically an “or” functionality. Zones 90 through 99 are reserved for special
functions such as releasing (Refer to Section 3 “Programming”).
Control-by-event (CBE) control is done through 99 software zones. Each input point
(detector, monitor module) and output point (control or relay module, NAC/Panel
Circuit) can be programmed to list up to five software zones. Non-Alarm or
Supervisory points do not activate software zone Z00 (general alarm).
Zones 90-99 are reserved for special functions such as releasing (refer to Section 3
“Programming”).
Input and output devices with listed software zones work as follows:
• Inputs – When an input device (detector or monitor module) activates, so do all
software zones listed to the input device.
• Outputs – When a software zone activates, the output device (
control or relay
module
, NAC/Panel Circuit) turns on.

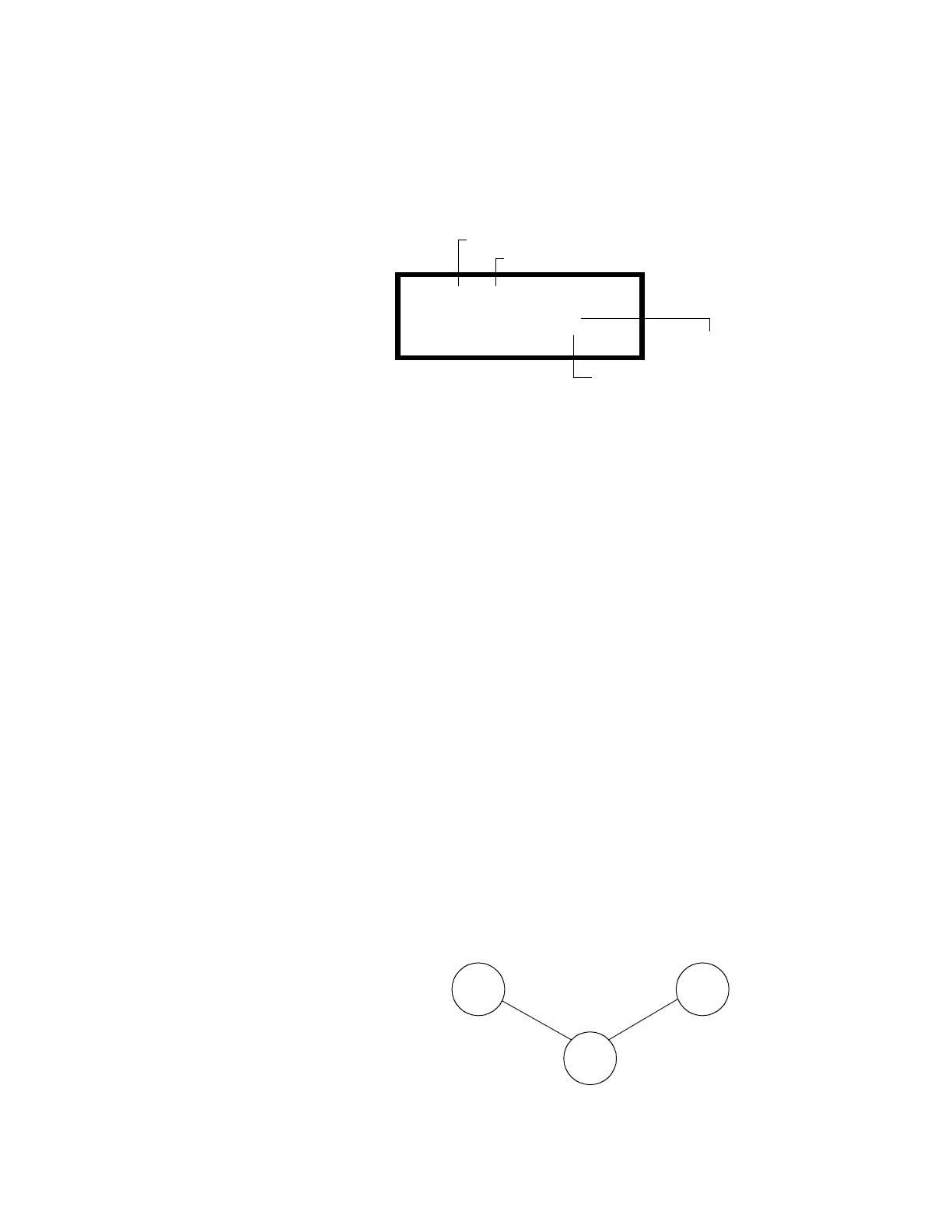

Figure 108 shows an illustration of simple CBE for Zone 04.
Figure 108 CBE Example
TROUBL BELL CIRCUIT
PANEL CIRCUIT NO. 1
Z00 SHORT CIRCUIT
10:21A 07/24/98@ B01
Status banner TROUBL
Type Code
BELL
CIRCUIT
Address of the NAC
(B01-B04)
Type of trouble (short
circuit shown)
Input – Detector at
SLC address 12
listing Z04 in its
CBE.
D12
Z04
B04
Z04
Z04
Output –
NAC/Panel Circuit
B04 listing software
zone Z04 in its CBE.
Software Zone – Zone 04
To Next Page
