External Battery Charger Mounting the CHG-120
192 IQ-301 PN 50036:F 10/29/2001

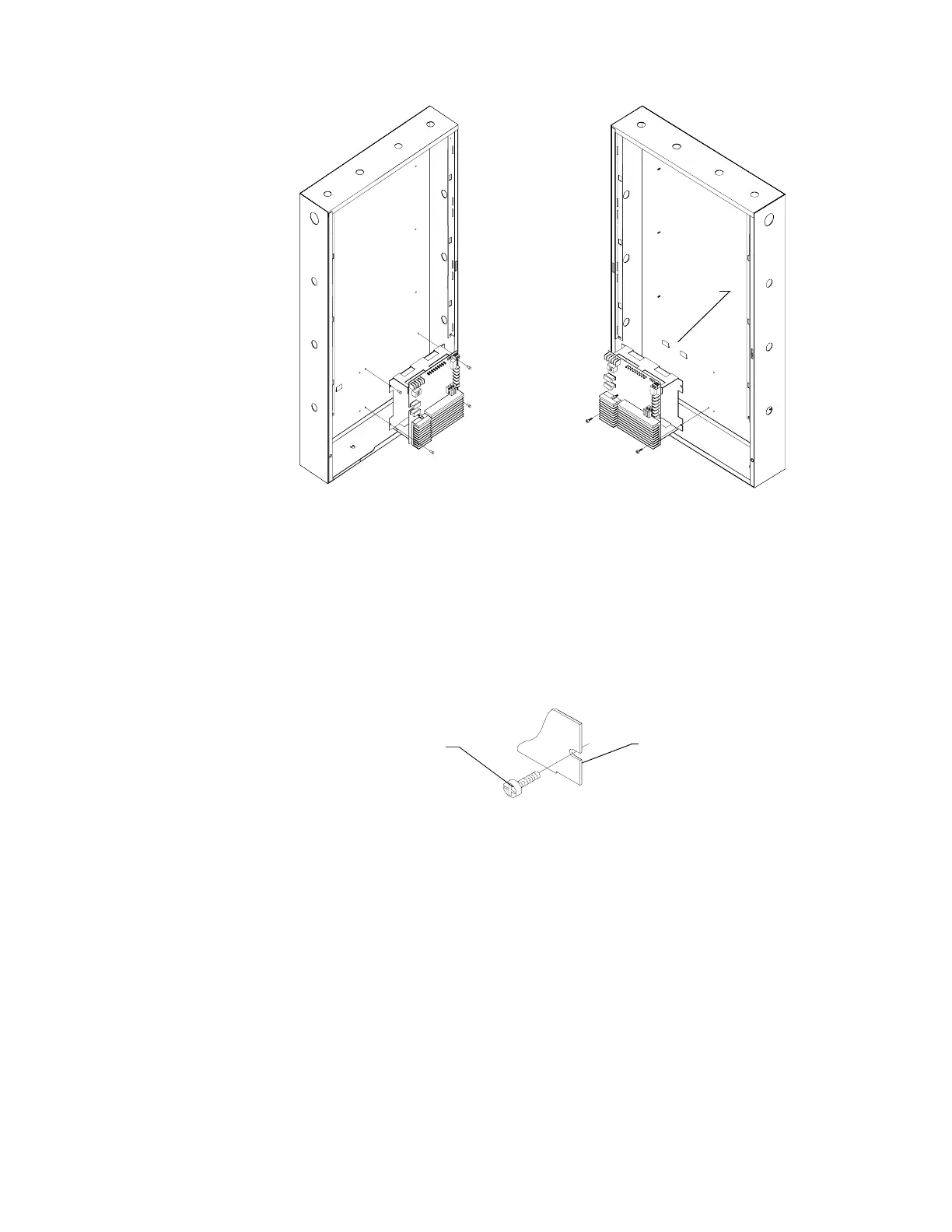

Figure 171 Mounting a Charger into a CAB-X3 (CAB-C3 shown)
To mount a charger into a CAB-X3 Series Cabinet, follow these instructions:
1. Place the charger chassis mounting slots in line with the mounting holes in the
cabinet. If mounting in position 2, place the charger chassis onto the mounting
hooks in the cabinet.
2. Insert the self-tapping screws through the charger chassis mounting slots and into
the mounting holes in the cabinet.
3. Tighten the self-tapping screws.
N.3.2 Mounting the Charger into a BB-55 Battery Box
You can also mount a charger into a BB-55 battery box, as long as the BB-55 is within
20 feet (6.096 m) of the load. Note that a charger takes up half the space of the BB-55.
Mounting
hooks
Position 1: Lower right corner. Position 2: Lower left corner.
Self-tapping screw
Chassis mounting slot
